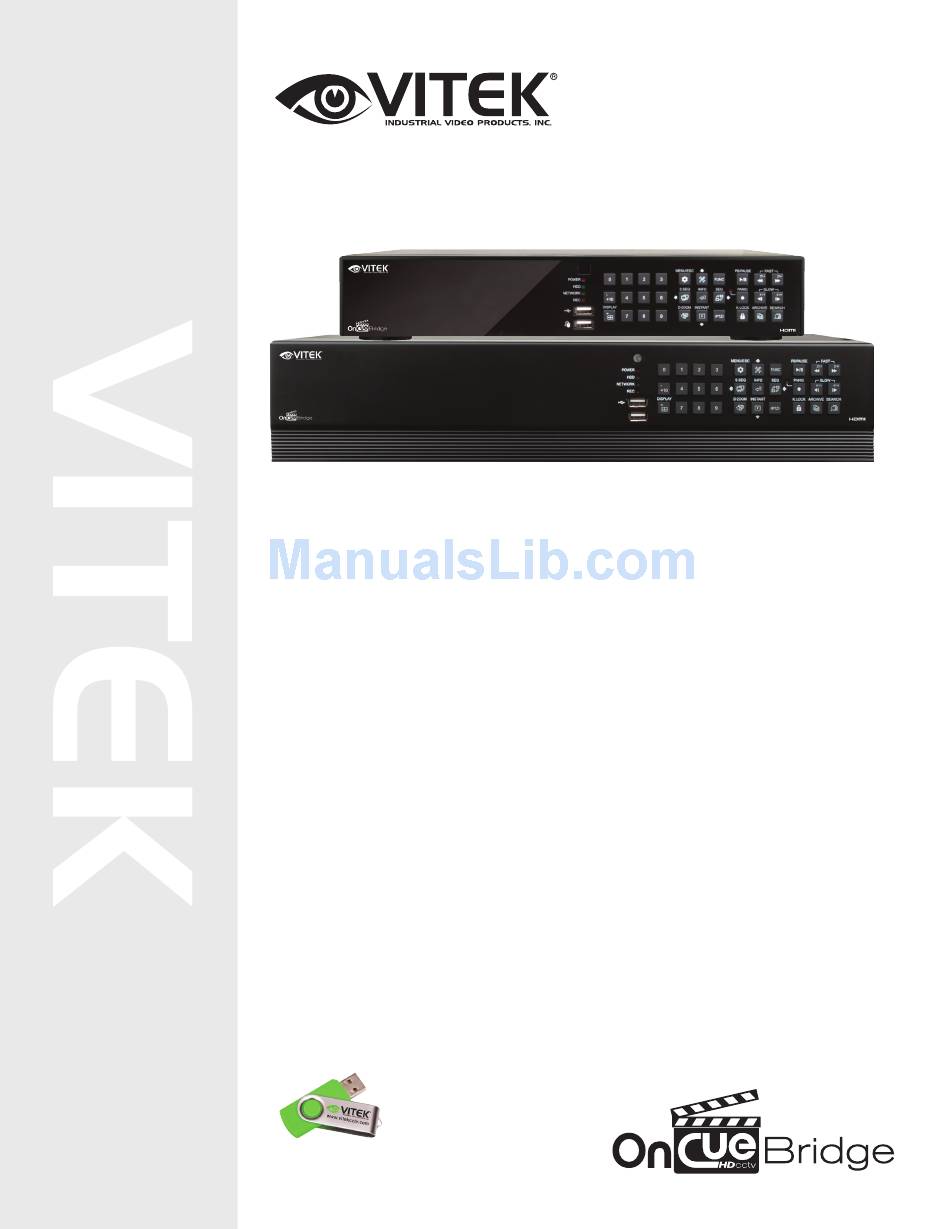

QUICK START GUIDE
FEATURES
• 8 & 16 Channel Stand-alone Real-time Video Recorders
• Supports IP, EX-SDI, TVI, AHD, CVI, Analog (CVBS) Cameras with automatic
format detection
• Full HD MegaPixel Real-time recording, live display, and playback
• Panorama (Thumbnail) Search
• HDMI 2.0 (4K), VGA, and BNC Outputs
• Plug and Play & Auto configuration for IP Cameras via OnVIF or generic protocol
• Point-Of-Sale (POS) Integration
• Alarm In/Out
• 2-way Full Duplex Audio
• Video Analytics with Search Feature (Camera Dependent)
• Remote Viewing via CMS Software, Internet Explorer, and Mobile Phones (iOS/
Android)
• Web-based remote configuration
• Advanced Video Detection: Camera tampering, Camera lens blocking, Day&Night,
Defocus
• Supports up to 30TB Internal Storage (VT-HDOC16BR) / 12TB Internal Storage
(VT-HDOC8BR)
• eSATA for storage extension of up to 5 more HDD
• Configurable Advanced Mirroring (Dual Recording, RAID1)
• RS-485 / CoC (Control Over Coax) PTZ Control
* Complete User
Manual on included
USB Flash Drive.
OnCue Bridge
8, & 16 Channel Complete
EX-SDI, TVI, AHD, CVI, Analog &
IP Recording Solution
Advertisement
Table of Contents
Related Manuals for Vitek OnCue Bridge
Summary of Contents for Vitek OnCue Bridge
-
Page 1: Quick Start Guide
OnCue Bridge 8, & 16 Channel Complete EX-SDI, TVI, AHD, CVI, Analog & IP Recording Solution QUICK START GUIDE FEATURES • 8 & 16 Channel Stand-alone Real-time Video Recorders • Supports IP, EX-SDI, TVI, AHD, CVI, Analog (CVBS) Cameras with automatic format detection •... -
Page 2: Installation
OnCue Bridge: Quick Start Guide 1) Installation: ① ② ③ ⑤ ④ ⑥ ⑧ ⑨ ⑩ ⑪ ⑦ ⑫ ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ 1. HD-SDI or Analog Camera Input 7.VGA Output (Video Graphic Array) EX-SDI / HD-SDI / Analog HD Camera input 15-pin D-sub connector for the analogue VGA nalog HD / TVI / CVI / 960H) output. - Page 3 • CVBS • The OnCue Bridge will Auto detect which format is connected and begin recording using the default settings of 8fps Continuous. 3) Camera Connection (IP): To connect an IP camera to the Bridge there are two ways to do this To connect a camera from an offsite location enter main menu and click on "Camera", then Click on "CAM...
-
Page 4: Automatic Network Setup
OnCue Bridge: Quick Start Guide Input the IP address of the camera and RTSP, HTTP ports along with the USER name and PASSWORD of the camera and select which model of camera and click SETUP. For local IP cameras, set the IP address of the camera to the local network of the Bridge Default is 192.168.172.100 cam 1 = 192.168.172.101 cam 2 = 192.168.172.102... - Page 5 OnCue Bridge: Operation Manual Step 1: Mobile APP install. You can install “OnCueviewer” for Android phone, “iOnCueviewer” for I-phone. P2P connection activation. Move to dvr registration menu on mobile app and activate P2P. If you want to receive DVR event's on mobile app, then activate push alarm. QR code use On mobile app, you can move to registration of P2P and take picture of the QR code Click Next below Step 2:...
- Page 6 OnCue Bridge: Quick Start Guide Step 3: When setting up network automatically, it requires 1 to 2 minutes depending on network situation. When done, you can check connection on mobile device Step 4.: Network automatic set up completed. You can select newly registered DVR on mobile app and click “connect” button and confirm connection.
- Page 7 OnCue Bridge: Operation Manual Network automatic setting report: Device IP address: 192.168.123.174 • Global IP: 000.000.000.000 • Subnet mask: 255.255.255.0 • DNS server address: • DVR port: • Automatically assigned ddns address: xxxxxxxx.ns.oncueddns.com • 6) Date / Time: To set the Date and Time on the recorder click on the Set-up icon on the Toolbar Click on System Icon to bring you to the Date and Time set-up...
- Page 8 On the Minute Bar (10) double click on the minute to start viewing 8) Web Viewing: To Access the OnCue Bridge via the network simply type in the Auto DDNS that was assigned to the recorder during network setup into Internet Explorer Example: Once at login screen click on "ActiveX WEB Viewer"...
