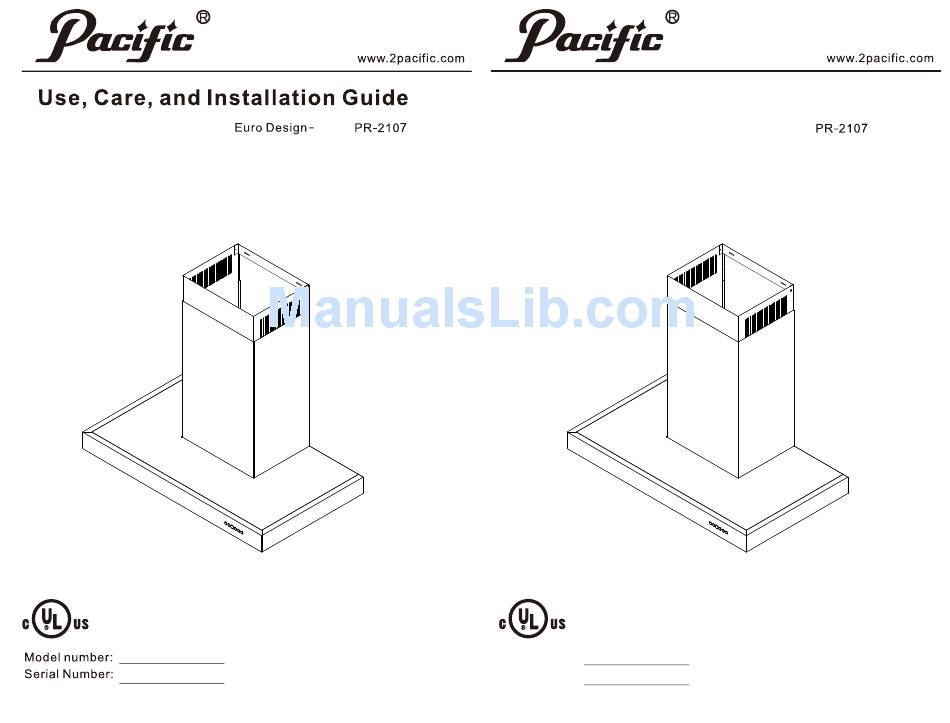

- Page 1 抽 油 煙 機 使 用 說 明 書 Puro 歐風設計-Puro PR-2107 PR-2107 抽油機型號: 號: 序 XP022269(1) XP022269(1)
-
Page 3: Table Of Contents
Table of Content 目錄 I. Product Functions/Performance Specification Chart ………. . 1 一.功能簡介/性能規格表……………………… . 1 Parts Instructions ............………. . 2 二.配件說明………………………………………. 2 III. Installation Guidelines…………………………………………. . 3 三.安裝原則………………………………………. 3 IV. Installation Procedures………………………………………..4 四.安裝步驟………………………………………. 4 V. Operating Instructions……………………………………..…… . 5 五.操作說明………………………………………. -
Page 4: Product Functions/Performance Specification Chart
中速及低速 、 。 2. LED light has varying degrees of brightness: Bright, Dim, and Off. 2.LED 燈可明亮、微亮及關閉。 3. There is a Delayed Shut-Off (Timer) button 3.有延遲功能按鈕。 B. 規格表 B. Specification Chart PR-2107-30 PR-2107-36 PR-2107-30 PR-2107-36 46LBS 52.5LBS Weight 46LBS 52.5LBS 重量... -
Page 5: Parts Instructions
二.配件說明 Parts Instructions MODELS:PR-2107AS 機型:PR-2107AS PARTS SUPPLIED 提供的零件名稱 (1) Duct cover wall bracket (1) 風管固定片 (1) Duct cover assembly, (1) 風管飾板上下 top and bottom (1) 8 吋圓防逆片 (1) 8" round damper (已組裝) (pre-installed) (1) 機體與馬達 (1) Hood body with internal blower (2) 3W LED light bulbs (2) LED燈120V 3W (1) Aluminum mesh filter... -
Page 6: Installation Guidelines
III. Installation Guidelines 三.安裝原則 A. Please Inspect the Following Before Installation: 1.安裝前請先檢查： l. Enclosed Items: manual, duct collar, oil cup l. 附件：說明書、風管圈、油杯。 ll. Performance: Check if light and motor switch appear normal after ll. 性能：接上電源檢查照明與馬達鍵是否正常。 connecting the power. lll.此電器必須接上地線以免導致受傷或損壞。 lll. This electrical appliance must be connected to the ground outlet to avoid accidents or damaging the appliance. -
Page 7: Installation Procedures
IV. Installation Procedures 四.安裝步驟 Warning: Electrical wiring must be handled by a professional electrician. 警告:電力接線方面必須由專人處理，抽油煙機必須接上地線。 The range hood must be connected to a ground outlet. Before doing any 接線前請務必確保電源開關以關閉 electrical work, please be sure to turn off the power supply. 1. -
Page 8: Operating Instructions
V. Operating Instructions 五.操作說明 Display screen 顯示螢幕 Switch 開關 電燈開關 Light switch 馬達速度控制 5分鐘延遲關閉功能 5-Minute-delay-off (timer) button Motor speed adjustment (1) 開關: 用來啟動和關閉油煙機(馬達和燈)。 (1) Switch For switching the range hood on and off (also for light switch) (2) 馬達速度控制: (2) Motor speed adjustment 以加減的方式控制馬達速度。... -
Page 9: Changing Light Bulb
VI. Removing Light Bulb 六.移除燈炮 注意： Attention: 當油煙機在運轉或經過長期運轉後請小心燈炮高溫。並請等待冷卻後再移除燈泡。 When the range hood is activated or has been running for a long time, 請再三確定油煙機電源關閉以及燈泡冷卻後再行移除。 be careful when handling the light bulb as it may be too hot to handle. 移除兩片鋁網，拔除內部燈泡連結電線。 Please wait until the light bulb cools down and then remove it. 接著移除燈飾板以方便卸下螺絲。... -
Page 10: Surface Maintenance
VII. Surface Maintenance 七.機身表面保養 A. Surface Maintenance 一.機身表面保養 1. Please clean the range hood surface regularly with warm soapy water and 1.請定期以熱肥皂水和棉布擦拭機身以防油垢堆積。 wipe with a cotton cloth to prevent grease from accumulating. 2.請勿使用腐蝕性洗碗精和材質過粗的布料擦拭，以免傷害到機身表面。 2. Please do not use harsh cleansers or coarse material to clean the surface because that will damage the surface. -
Page 11: Matters Needing Special Attention
VIII. Matters Needing Special Attention 八.注意事項 使用注意事項 Special Attention when Using the Range Hood: The range hood must be turned on every time before cooking to ensure 每次煮食前必須先開抽油煙機才開始煮食，可防止抽油煙機損壞。(因若未開 maximum ventilation effect. If there is damage to the power cord, removing 機就煮食，油煙久了會累積在馬達及線圈導致無法開機) and changing the power cord must be handled by the manufacturer, installer 若電源線損壞時，必須由製造廠或其服務處或具有類似資格的人員更換以避免... -
Page 12: Troubleshooting
九.排除故障 IX. Troubleshooting Problem Possible Cause Solution 異常狀況 原 因 處理方式 1. No power (burned power cord) or burned fuse 1. Replace the PC board Motor stops running 馬達不轉 1.無電源輸入(電源線燒毀)或保險絲燒毀 1.更換PC板 2. Motor temperature regulator is off and can’t 2. Replace motor 2.馬達溫控跳脫無法回復...
