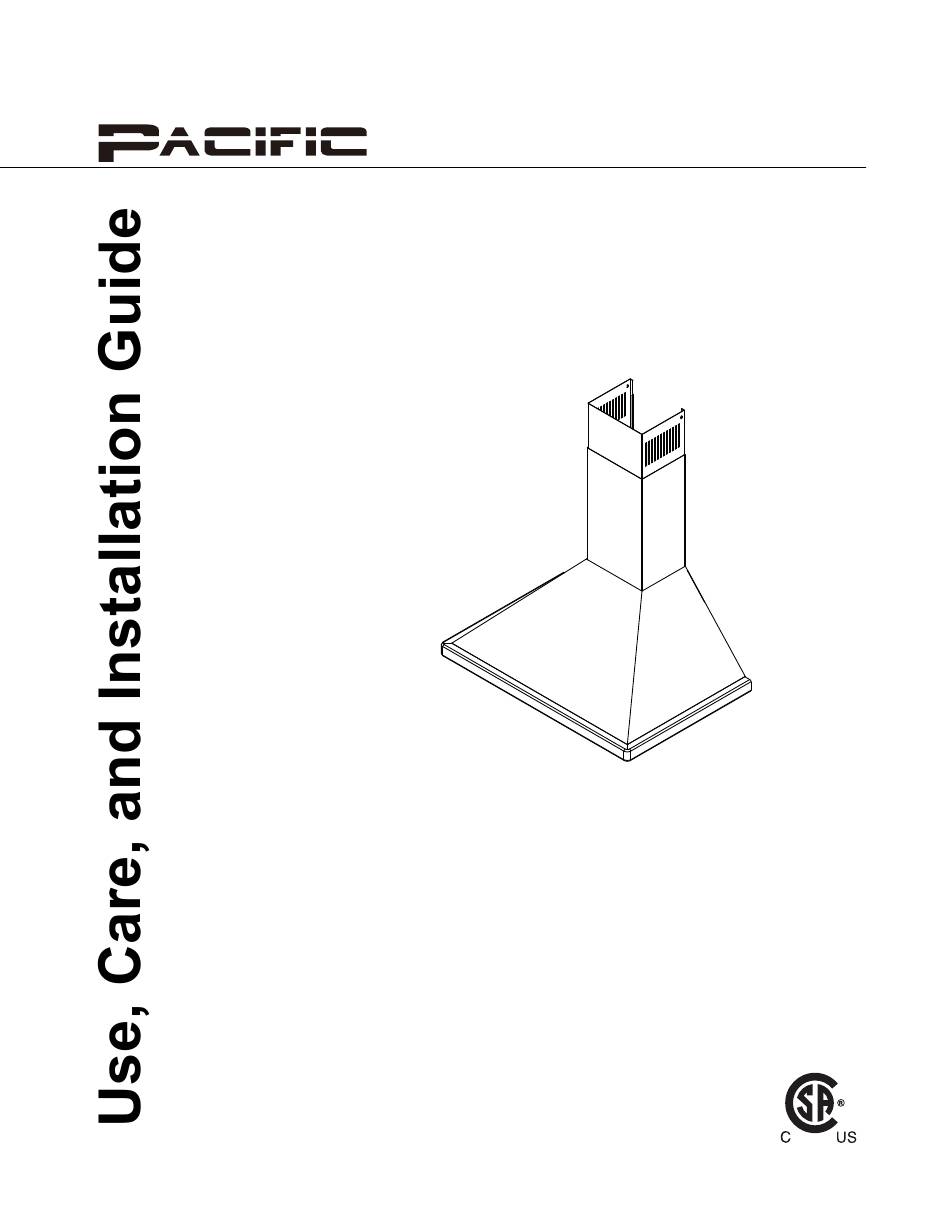

- Page 1 Model PSU-E30AS 182766 XP022421(1)
- Page 2 Safety Notice ............2-3 List of Materials ..................5 Mounting Height & Clearance ........ 6 Ducting Options ........... 7 Hood Specif cations ..........8 Control ..............Mounting the Hood ..........10 Hood and Filter Cleaning ........11 Light Bulbs ............. 12 Troubleshooting .............
-
Page 3: To Reduce The Risk Of Fire Electric Shock, Or Injury To Persons, Observe The Following
reaD anD SaVe tHeSe InStrUCtIOnS WarnInG TO reDuce THe rISK OF FIre Or elecTrIc SHOcK, DO NOT uSe THIS FAN WITH ANY SOlID-STATe cONTrOl DevIce. WarnInG TO reDuce THe rISK OF FIre elecTrIc SHOcK, Or INJurY TO perSONS, OBServe THe FOllOWINg: a. -
Page 4: Operation
WarnInG TO reDuce THe rISK OF FIre, uSe ONlY MeTAl DucTWOrK. CaUtIOn To reduce risk of fire and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages. OPeratIOn Always leave safety grilles and filters in place. -
Page 5: Hardware Package Contents
MODELS: PSU-E30AS PARTS SUPPLIED 1 - Hood with internal blower 1 - Duct cover wall bracket 1 - Duct cover assembly (top and bottom) 1 - Hardware package 1 - 6” round backdraft damper (pre-installed) 2 - 50W GU-10 halogen light bulbs... - Page 6 Equivalent number Equivalent number Duct pieces Duct pieces T otal length x used length x used T otal 3- 1/ 4” x 10” 1 Ft. 6”- 8” Round 30 Ft. Rect., wall cap straight with damper 7” Round, 1 Ft. 6”- 8”...
- Page 7 Minimum mount height between range top to hood bottom should be no less than 26”. Maximum mount height should be no higher than 34”. * Min. ducted (A) Min. recirc. (B) It is important to install the hood at the proper Max.
- Page 8 WarnInG FIre HazarD Never exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. use single wall rigid Metal ductwork only. Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.
- Page 9 4 " 8 " Standard Duct Cover Min. ducted 27 ” Min. recirc. 32” Max. ducted 42 ” Extension Min. ducted 46 ” Min. recirc. ” Max. ducted 80” 12" 8 " 16 " 4 " 8 " 16 " 16 "...
- Page 10 CAUTION: At least two installers are required due to the weight and size of the hood. 1. Measure from range top to hood bottom and mark line A. Duct Cover Bracket (26” minimum from range top) . 2. plum and mark center line. 3.
- Page 11 Lights On/Off Blower Off Blower Speed Selection Blower Off The blower will be switched off by pressing: Blower Speed Selection Select one of three speed levels by pressing: Lights On/Off Switch lights on and off by pressing:...
-
Page 12: Surface Maintenance
SUrFaCe maIntenanCe: clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent , or steel wool/scouring pads which will scratch and damage surface. For heavier soil use liquid degreaser. After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. -
Page 13: Replacing Light Bulbs
rePlaCInG lIGHt BUlBS CaUtIOn: light bulb becomes extremely hot when turned on. DO nOt touch bulb until switched off and cooled. touching hot bulbs could cause serious burns. Make sure all power is turned off and bulbs are not hot. remove by turning bulb counter clockwise. - Page 14 trOUBleSHOOtInG PrOCeDUreS FOr VSU anD V Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
