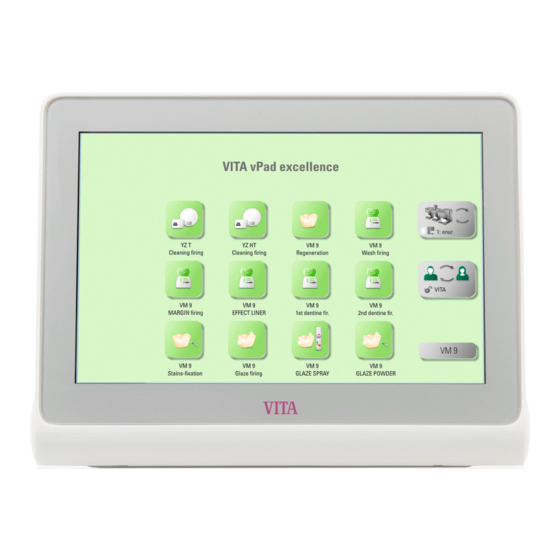

vita vPad comfort Operating Manual
Hide thumbs
Also See for vPad comfort:
- Operating manual (50 pages) ,
- Operating manual (8 pages) ,
- Operating manual (56 pages)
Related Manuals for vita vPad comfort
Summary of Contents for vita vPad comfort
- Page 1 VITA vPad comfort / VITA vPad excellence Operating manual VITA shade determination VITA shade communication VITA shade reproduction VITA shade control Date of issue: 07.15 VITA shade, VITA made.
-
Page 3: Table Of Contents
VITA vPad comfort · VITA vPad excellence Table of contents Welcome 11.2 Program start with too high a temperature General notes 11.3 Rapid cooling on standby Copyright 11.4 Switching off Scope of delivery Select firing program Technical information 12.1 Process data Technical Data 12.2 Night program... - Page 4 VITA vPad comfort · VITA vPad excellence 20.1 Image settings Managing a user profile Settings 15.1 Activating/entering a password 21.1 Multifurnace 15.2 Deleting a password 21.2 Furnace settings 15.3 Changing a user profile 21.3 Setting pressing pressure 15.4 Duplicating a user profile 21.4 Device data...
-
Page 5: Welcome
Dear Customer, Congratulations and thank you for your decision to purchase a VITA vPad comfort / VITA vPad excellence control pad for the operation and control of the VITA VACUMAT 6000 M ceramic firing furnace, VITA VACUMAT 6000 MP combination pressing furnace or the VITA ZYRCOMAT 6000 MS high-speed sintering furnace. -
Page 6: Scope Of Delivery
• 1 Operating Manual To operate two to four VITA VACUMAT 6000 M / VITA VACUMAT 6000 MP or VITA ZYRCOMAT 6000 MS units with the VITA vPad comfort / VITA vPad excellence control unit, you also need a VITA Switchbox with connection cable (VITA Art. -
Page 7: Intended Use
VITA vPad comfort · VITA vPad excellence Intended use Basic information on the instrument design The instrument is designed according to state of the art technology and recognized safety standards. However, if it is used inappropriately, hazards for the health and safety of the user or third parties, as well as the risk of damaging the instrument and other material property, may arise. -
Page 8: Operation And Cleaning Of The Control Unit
The warranty and liability are based on the terms and conditions stipulated in the contract. In the event of software modifications without the knowledge and approval of VITA Zahnfabrik H. Rauter GmbH & Co. KG, all liability and warranty claims are invalidated. 6.2 Spare parts Spare parts must comply with the technical requirements specified by the manufacturer. -
Page 9: Safety Functions
VITA vPad comfort · VITA vPad excellence Safety functions If the furnace is operated with a VITA vPad comfort / VITA vPad excellence control unit, it is equipped with the following safety and monitoring functions: • Temperature sensor monitoring • Temperature monitoring • ... -
Page 10: Automatic Temperature Calibration
Software updates are available as a download on the website of the supplier, VITA Zahnfabrik. An option to register so that the latest information on the device is automatically emailed to you is also provided at http://www.vita- zahnfabrik.com/update-messenger. In case of technical queries regarding the instrument or regarding repair services and warranty provisions, contact us at: Email: instruments-service@vita-zahnfabrik.com... -
Page 11: Commissioning
• Plug in the VITA vacuum pump (VITA VACUMAT 6000 M / VITA VACUMAT 6000 MP only) • Insert the vacuum hose for the VITA vacuum pump (VITA VACUMAT 6000 M / VITA VACUMAT 6000 MP only) • Plug in the power cable • ... -
Page 12: Ceramics Furnace
Mains power supply connection Main switch Vacuum hose connection 9.2 Connections of the VITA VACUMAT 6000 MP combination pressing ® furnace (see also the VITA VACUMAT 6000 MP Operating Manual) Status display (see Section 10.3) Pressurized air connection max. 5 bar Connection for... -
Page 13: Pressurized Air Connection
VITA vPad comfort · VITA vPad excellence 9.3 Pressurized air connection The input pressure on the VITA VACUMAT 6000 MP is controlled by a pressure regulator (supplied with the VITA VACUMAT 6000 MP only). This can be attached to the VITA vacuum pump. -
Page 14: Switching On The Device
The life goes down to the lower position, software is loaded, devices are displayed. Once the VITA VACUMAT 6000 M / VITA VACUMAT 6000 MP, VITA ZYRCOMAT 6000 MS is connected, the display shows: VITA vPad comfort / VITA vPad excellence with 1 device. -
Page 15: Deactivate Standby
The function is also available in the VITA Energy Efficiency Standby. This function is only activated if the device has been switched off for at least 5 minutes using the main switch. -
Page 16: Operations And Functions For
Materials / programs Settings User – individual material and program settings Photoviewer 10. Help Image 1 VITA vPad comfort / vPad excellence with 1 firing unit 11. automatic lift up 12. automatic lift down 13. manual lift up 14. manual lift down 15. -
Page 17: Program Start With Too High A Temperature
The Cooldown button is then only visible / active if the combustion chamber temperature is 50°C higher than the Standby-temperature. The lift remains in the lower position, the VITA vacuum pump is connected after reaching the Standby temperature minus 50 °C, and the lift moves in and the firing chamber is heated to the Standby temperature. -
Page 18: Select Firing Program
When activating the User tab, the stored user profiles are displayed, and after selection of a user profile, the saved materials are displayed. All firing programs can be opened with the VITA VACUMAT 6000 M / VITA VACUMAT 6000 MP. The pressing programs can only be opened with the VITA VACUMAT 6000 MP and the sintering programs only with the VITA ZYRCOMAT 6000 MS. -
Page 19: Process Data
VITA vPad comfort · VITA vPad excellence When operating several furnaces, the Device Control tab is displayed again approximately 20 seconds after program start (see Section 10 Image 2). Then the next free device can be selected and used for firing. The firing program of a device that is currently running can be called up again at any time using the Material tab. -
Page 20: Night Program
VITA vPad comfort · VITA vPad excellence The firing data administration program enables a display of the firing curve, the archiving of all firing data and a later locating and printing out of individual orders. Note: Enter process data prior to the program start since, otherwise, it is not saved. -
Page 21: Enter / Change / Save Program Values
VITA vPad comfort · VITA vPad excellence 13 Entering / changing / saving program values 13.1 Description of function buttons VITA 1:Ready Predrying temperature and predrying time (see Section 13.2) Lift positions for predrying (see Section 13.3) VITA Labor Prevacuum (see Section 13.4) Rise time / rise temperature (see Section 13.5) -
Page 22: Lift Positions For Predrying
VITA vPad comfort · VITA vPad excellence 13.3 Lift positions for predrying 1:Ready Labor Time c Value c Press the Lift position button, display shows: Time b Value b Time a Value a Entering / changing values Dialog is divided into entry for the lift position in % (value a, b and c) and entry of the duration of the respective lift position (time a, b and c). -
Page 23: Prevacuum
VITA vPad comfort · VITA vPad excellence 13.4 Prevacuum 1:Ready Labor 1. D Pre-vacuum Value Press the Prevacuum button, display shows: Pre-vacuum Time Entering / changing values • Activate the Time or Value % Cancel Switch off Process data Start • ... -
Page 24: Firing Temperature And Holding Time
VITA vPad comfort · VITA vPad excellence 13.6 Firing temperature and holding time 1:Ready Labor Firing temperature Press the Firing temperature button, display shows: Firing time Entering / changing values • Activate the firing temperature field °C or firing time field Min... -
Page 25: Cooling Temperature And Holding Time
VITA vPad comfort · VITA vPad excellence 13.8 Cooling temperature and holding time Labor 1:Ready Cooling temperature Press the Cooling temperature button, display shows: Cooling time Activate cooldown Entering / changing values • Activate the firing temperature field °C or firing time field Min... -
Page 26: Changes After Starting
VITA vPad comfort · VITA vPad excellence 13.10 Changes after starting a firing program Changes of program values are possible after starting a firing program. To avoid misfires, changes which automatically impact other program areas are not allowed, such as changing the rise time, which causes an automatic adjustment of the vacuum time. -
Page 27: Managing Material, Programs
VITA. Edit Switch off The user Laboratory is a copy of the user VITA and can likewise be changed, Image 1 Material overview except for changes to the material name (see Section 14). Programs of the user Doc are not included. - Page 28 • Position material, programs • Import material, programs – from the USB stick to the control unit • Export material, programs – from the control unit to the USB stick Materials and programs in the VITA user profile cannot be changed.
-
Page 29: Creating New Material
VITA vPad comfort · VITA vPad excellence 14.1 Creating new material Materials can be newly created under Material or under User. Material When the Material tab is activated, the saved materials are directly displayed. User If you click on the User tab, the created user profile and, after selecting a user, the saved materials are displayed. -
Page 30: Changing Material
Press the Back button – display shows material overview (Image 1). Attention: All program values and program descriptions for VITA materials can be changed. It is not possible to change the VITA material description and VITA container. 14.3 Duplicating (copying) material • ... -
Page 31: Deleting Material
VITA vPad comfort · VITA vPad excellence 14.4 Deleting material • In the material overview (Image 1), press the Edit button – a yellow editing level is displayed • select one or more Materials to delete • Press the Delete button • ... -
Page 32: Creating New Programs
VITA vPad comfort · VITA vPad excellence 14.8 Creating new programs Programs can be newly created under Material or under User. Material By clicking on the Material tab, the saved materials are directly displayed. User Clicking on the User tab shows the created user profile. After selecting a user profile, the materials saved in the user profile are displayed. -
Page 33: Changing Programs
VITA vPad comfort · VITA vPad excellence 14.9 Changing programs • Select material in the material overview (Image 1) • In the firing programs view (Image 2), press the Edit button – yellow editing level is displayed • Select program to change • ... -
Page 34: Importing Programs
VITA vPad comfort · VITA vPad excellence 14.13 Importing a program • Insert USB stick • Select the material overview (Image 1) • In the firing programs view (Image 2), press the Edit button – yellow editing level is displayed • ... -
Page 35: Managing A User Profile
VITA vPad comfort · VITA vPad excellence 15 Administering the user profile A maximum of 6 users can be created in the VITA vPad comfort control unit. A maximum of 14 users can be created in the VITA vPad excellence control unit. -
Page 36: Activating/Entering A Password
Image 3 Entry for new user • Select a background color after OK or entering password protection, confirm by saving. With Cancel, no selection is made and the VITA standard background is set. 15.1 Activating / entering a password: • Edit , then select profile • ... -
Page 37: Duplicating A User Profile
• Select a background color after OK or entering password protection, confirm by saving. With Cancel, no selection is made and the VITA standard background is set. 15.4 Duplicating a user profile • In the User tab (Image 1), press the Edit button • ... -
Page 38: Pressing Programs
VITA vPad comfort · VITA vPad excellence 16 Pressing programs PM 9 The programs stored under this material button are VITA pressing programs. To create materials from other manufacturers, see Section 14.1 Creating new material. Entering/changing values 2:Ready Labor Press the Pressing material button, PM 9 display shows available pressing programs (Image 1). -
Page 39: Vacuum Time
VITA vPad comfort · VITA vPad excellence 16.3 Vacuum time The vacuum time cannot be set or changed for the pressing program. The vacuum is automatically controlled over the entire pressing time. 16.4 Press temperature / Press time Press the Press temperature / Press time button. -
Page 40: Starting The Pressing Program
VITA vPad comfort · VITA vPad excellence 16.7 Starting the pressing program 2:Ready Labor Important! The pressing object is first introduced after the PM 9 starting temperature is achieved. 3 bar – 1 pellet After selecting the pressing program, the display shows Image 5: • ... -
Page 41: Sintering Programs
Standby off Lift up Lift down Display upon connection of the VITA ZYRCOMAT 6000 MS VITA vPad comfort / VITA vPad excellence with 1 device Switch off Image 1 Display upon connection of a VITA ZYRCOMAT 6000 MS Image 2 shows:... -
Page 42: Selecting A Sintering Program
– Select YZ T Speed Pre-Dry CL or YZ HT Speed Pre-Dry YZ T Speed Pre-Dry CL Pre-Dry YZ T Liquid – SL to sinter manually shaded YZ and YZ-HT according to VITA instructions in the HighSpeed. – Select the Pre-Dry YZ T Liquid or Pre-Dry YZ HT... -
Page 43: Sintering Program Description
VITA vPad comfort · VITA vPad excellence 17.2 Sintering program description Starting temperature (sintering program begins below) temperature – rise / PreDry 1:Ready Labor temperature – holding phase/PreDry YZ HT Speed Pre-Dry CL temperature – rise temperature – holding phase temperature –... -
Page 44: Predrying (Vita Predry)
VITA vPad comfort · VITA vPad excellence 18 Predrying (VITA PreDry) 18.1 Rise 1 / VITA PreDry °C/min 6:00 Press Rise 1 / VITA PreDry button 1:Ready Labor Enter / change values • Activate firing temperature °C/Min or firing time Min field Gradient • ... -
Page 45: Activating / Deactivating Predrying
The predrying process is integrated in the HighSpeed Mode (program can only be selected if a VITA ZYRCOMAT 6000 MS is connected). If individual predrying is to be conducted in the VITA VACUMAT 6000 M / VITA VACUMAT 6000 MP or VITA ZYRCOMAT 6000 MS, a predrying program can be created via "Create new material"... -
Page 46: Changing A Sintering Program
VITA vPad comfort · VITA vPad excellence 19 Changing sintering programs 19.1 Rise time 2 – Holding time 2 Gray button color: HighSpeed mode deactivated Red button color: HighSpeed mode activated Press button, display shows dialog field. 1.Ready Labor Enter / change values • ... -
Page 47: Rise Time 3 And 4 - Holding Time 3 And
VITA vPad comfort · VITA vPad excellence 19.2 Rise time 3 and 4 – Holding time 3 and 4 Entered values for temperature rise and for temperature holding time are identical with the program sequence described under Section 19.1. 19.3 Cooling program Three (3) different cooling programs are available. -
Page 48: Mode 2 Vita Highspeed
VITA vPad comfort · VITA vPad excellence 19.5 Mode 2 VITA HighSpeed: Three fixed cooling positions Lift position with the following temperatures: 1.Ready Labor larger 1200 °C lift position 80% Mode Help smaller 1200 °C lift position 60% Mode 1 smaller 900 °C lift position 40%... -
Page 49: Photoviewer
Patient Name 2.jpg Imag 2.jpg Patient Name.jpg The memory capacity of the VITA vPad comfort control unit is 1 GB, the Imag 3.jpg memory capacity of the VITA vPad excellence control unit is 2 GB. The images can be displayed and saved. Images are opened in the following... -
Page 50: Settings
VITA vPad comfort · VITA vPad excellence 21 Settings Settings Activate the Settings tab 1:Ready Labor Display shows: Multi furnace Settings Device data Settings without combination pressing furnace (Image 1) Date vPad Start profile Language Base sett. Passwords Update Cancel... -
Page 51: Multifurnace
Furnace Furnace Furnace VITA vPad comfort – connection option for a maximum of 2 devices. VITA vPad excellence – connection option for a maximum of 4 devices. Image 3 shows the control unit vPad excellence with 1 VITA VACUMAT 6000... -
Page 52: Furnace Settings
The lift speed can be infinitely set with the scroll bar. Temperature calibration using the silver probe With this program and the VITA Silver Probe set (VITA Order No. B 230), the temperature in the combustion chamber can be checked and readjusted within the range of plus / minus 40 °C. - Page 53 To calibrate the temperature, please speak with your responsible service partner. Cleaning firing in the VITA VACUMAT 6000 M / VITA VACUMAT 6000 MP The conducting of a cleaning firing is shown in the display after the set time has elapsed. With this program, the firing chamber is heated up and contaminates can evaporate from the slightly opened firing chamber.
-
Page 54: Setting Pressing Pressure
Labor 4:Ready Setting the pressing The VITA VACUMAT 6000 MP is provided with an automatic ventilation pressure Multifurnace function. This means that, when setting the pressing pressure, the device ventilates automatically so that the residual pressure in the system is released Date and the correct pressure is always displayed. -
Page 55: Device Data
VITA vPad comfort · VITA vPad excellence 21.4 Device data Click on the Device data tab. Display shows: Device data Device data: • Furnace revision – information on software version • Furnace series no. – Device no. Labor 4:Ready • Furnace name – Name of the device... -
Page 56: Date
VITA vPad comfort · VITA vPad excellence 21.5 Date Date Settings: • Date and time The date and time can be set here. 21.6 vPad vPad Press the vPad button, display shows: 4:Ready Labor Calibrating the control unit – The vPad should be calibrated whenever the display does not react precisely Multifurnace to activation. -
Page 57: Languages
• Selection of temperature display in °C or °F 21.9 Basic settings – factory settings: Base sett. The following settings are reset to the factory settings: • Start profile is set to the VITA user profile • Display brightness • Program stop • Lift speed • ... -
Page 58: Update
VITA vPad comfort · VITA vPad excellence 21.11 Update Update Software updates are loaded by USB stick to the control unit. Current software updates are published on the homepage: http://www.vita-zahnfabrik.com. If you would like to be informed via email about new software updates, subscribe free of charge at http://www.vita-zahnfabrik.com/update-... -
Page 59: Vita Help
VITA vPad comfort · VITA vPad excellence 22 VITA Help Under the Help tab, you will find all the working instructions for the VITA veneering materials and devices integrated in the software. By pressing the Help button in the Material overview or in the Settings, Help opens with a listing of VITA operating instructions. -
Page 60: Error Messages
30% is not reached • Clean the edge seal on the firing chamber floor. within 30 seconds. For cleaning work, see the VITA VACUMAT 6000 M or VITA VACUMAT 6000 MP Operating Manual. Inspect the vacuum pump separately from the device. - Page 61 VITA vPad comfort · VITA vPad excellence Additional error messages from the VITA ZYRCOMAT 6000 MS Display Recognition Cause / correction Ventilator for power Running program is stopped, • Inspect connections to the circuit board circuit board is defective heating off • ...
-
Page 62: Alphabetic Table Of Contents
VITA vPad comfort · VITA vPad excellence 24 Alphabetical table of contents Exporting programs control unit Ambient conditions Operation and functions Exporting user profile Authorized modes of operation Automatic Temperature calibration 10 Factory settings Password Passwords FDS – Firing Data System... - Page 63 VITA vPad comfort · VITA vPad excellence Spare parts Standby Starting the pressing program Starting temperature for pressing program Startup Status display Stop Switching off Switching on the device Technical information Temperature calibration 52, 53 Time Time format Update VITA vPad...
-
Page 64: Vita Vpad
Claims for damages based on fault liability (fault in making the contract, breach of contract, unlawful acts, etc.) can only be made in the case of intent or gross negligence. The VITA Modulbox is not necessarily a component of the product.
