- Page 1 VITA vPad comfort / excellence /clinical Operating manual VITA shade taking VITA shade communication VITA shade reproduction VITA shade control Date of issue: 06.11...
-
Page 2: Table Of Contents
VITA vPad comfort / excellence / clinical Table of contents Introduction 12.4 Save Scope of delivery 12.5 Program buttons Entering/modifying/saving program values Technical information Technical data 13.1 Description of function buttons Dimensions/Weights 13.2 Predrying temperature/Predrying time Electrical data 13.3 Predrying lift positions 13.4 Prevacuum... - Page 3 VITA vPad comfort / excellence / clinical 15.7 Import a user profile 15.8 Export a user profile Press programs 16.1 Start temperature for press program 16.2 Rise time/Rise temperature 16.3 Vacuum time 16.4 Press temperature 16.5 Pressing time 1 and press pressure 16.6 Pressing time 2 and press pressure...
-

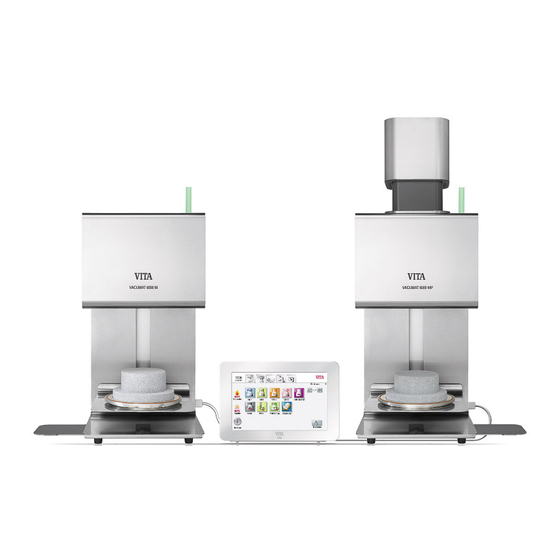

Page 4: Introduction
VITA VACUMAT 6000 MP combipress furnace or VITA ZYRCOMAT 6000 MS (available from autumn 2011). You can use the VITA vPad comfort / clinical to connect up to 2 VITA VACUMAT 6000 M / 6000 MP and VITA ZYRCOMAT 6000 MS units. -
Page 5: Scope Of Delivery
• 1 user manual An additional switchbox and connection cable (VITA Prod. No. D47009) are required for operating 2 to 4 VITA VACUMAT 6000 M / 6000 MP or VITA ZYRCOMAT units with the VITA vPad comfort / excellence / clinical control unit. -
Page 6: Intended Use
VITA vPad comfort / excellence / clinical Intended use Basic information on the device design The device is designed according to a state of the art design and recognized safety standards. However, if it is used inappropriately, hazards for the health and safety of the user or third parties may arise as well as the risk of damaging the device and other valuable assets. -
Page 7: Operation And Cleaning Of The Control Unit
The warranty and liability are based on the terms and conditions stipulated in the contract. In the event of software modifications without the knowledge and approval of VITA Zahnfabrik H. Rauter GmbH & Co. KG, all liability and warranty claims are invalidated. 6.2 Spare parts Spare parts must comply with the technical requirements specified by the manufacturer. -
Page 8: Safety Functions
VITA vPad comfort / excellence / clinical 7 Safety functions The furnace is operated with a VITA vPad comfort / excellence / clinical control unit and has the following safety and monitoring features: • Temperature sensor monitoring • Temperature monitoring • Vacuum monitoring • Power supply failure protection • Lift monitoring... -
Page 9: Automatic Temperature Calibration
Software updates can be downloaded under Services / Equipment Servicing. Moreover there is also a registration possibility for the VITA Update Messenger to be automatically informed by email about new information on the device. Technical questions and questions concerning repair and warranty can be sent to the following email address: instruments-service@vita-zahnfabrik.com... -
Page 10: First Use
Operating the device without a firing socket can damage the device due to the strong influence of heat. When using 2 or more firing units with a vPad comfort / excellence / clinical control unit, it is important to observe the numerically marked connections of the Switchbox. -
Page 11: Connections Of The Vita Vacumat 6000 Mp Combipress Furnace
VITA vPad comfort / excellence / clinical 9.2 Connections of the VITA VACUMAT 6000 MP combipress furnace (see also user manual VITA VACUMAT 6000 MP) Status display (see sect. 9.3) Compressed air connection, max. 5 bar Control unit connection for... -
Page 12: Switching On The Device
The lift moves to the lower position, the software boots up and the start screen is displayed. After connecting the VITA VACUMAT 6000 M / 6000 MP, the display shows: VITA vPad comfort / excellence / clinical with 1 Device... -
Page 13: Preventing Condensation
VITA vPad comfort / excellence / clinical 10.2 Preventing condensation (AntiCon) I f the device is switched on with the main switch and standby is started, the lift moves to the upper position, but does not seal the firing chamber completely. -
Page 14: Operation And Features Of Vita Vpad
Photo Viewer Switch off Standby On 10 Standby Off VITA vPad comfort / vPad excellence with 1 firing unit Lift Up 12 Lift Down 13 Fast cooldown to standby (symbol is only displayed if the temperature in the firing chamber is higher than the standby temperature) -
Page 15: Lift Buttons
VITA vPad comfort / excellence / clinical 11.3 Lift Buttons Lift Up Lift Down The lift moves up or down when the Lift Up or Lift Down buttons are pressed. 11.4 Cooldown to standby Cooldown The Cooldown button is only displayed/active when the firing chamber temperature is higher than the standby temperature. -
Page 16: Selecting The Firing Program
VITA vPad comfort / excellence / clinical 12 Selecting the firing program On pressing the Material tab or User tab, programs can be selected. Material On pressing the Material tab, the stored materials are displayed. User On pressing the User tab, the users that have been set up are displayed;... -
Page 17: Process Data
VITA vPad comfort / excellence / clinical When operating multiple furnaces, approx. 20 sec. after the program start the Furnace Overview screen is displayed (see sect. 10 figure 2). The next free device can thus be selected and used for firing. -
Page 18: Night Program
VITA vPad comfort / excellence / clinical 12.2 Night program Night program Pressing the key activates the night program; at the end of a firing program the lift is moved into the firing chamber after the temperature in the firing chamber has decreased to 200°C; display and heating are deactivated. -
Page 19: Entering/Modifying/Saving Program Values
Any programs and program values can be customized except of the programs under user VITA. All of the VITA original programs are stored under user VITA and serve as a backup copy of the factory settings. User Laboratory (for VITA vPad clinical "Practice") is a copy of user VITA and can also be modified;... -
Page 20: Predrying Temperature/Predrying Time
VITA vPad comfort / excellence / clinical 13.2 Predrying temperature / predrying time Laboratory Start Value 200 - 800 Temperature Predrying temperature Press Predrying button, display shows: Predrying time Enter / change values Standby • Move to the Predrying temperature or Predrying time field... -
Page 21: Prevacuum
VITA vPad comfort / excellence / clinical For the predrying phase, 3 lift positions are available. Position a – lower position entry value 0 – 30% Position b – middle position entry value max. 60% Position c – upper position entry value max. -
Page 22: Rise Time/Rise Temperature
VITA vPad comfort / excellence / clinical Entry ranges: Value % 50 – 100% Time 0 – 80:00 min/sec. Temperature °C 200°C – 1,190°C The available entry values are displayed. Apply the value using the OK button or retain the last value using the Cancel button and return to the firing curve screen. -
Page 23: Firing Temperature And Holding Time
VITA vPad comfort / excellence / clinical 13.7 Firing temperature and holding time Laboratory Hold Value 200-1190 Temperature Firing temperature Press Firing temperature button, display shows: Firing time Standby Enter / change values Cancel Move to the °C or min field Start •... -
Page 24: Cooldown Lift Position
VITA vPad comfort / excellence / clinical 13.9 Cooldown lift position Laboratory Cooldown lift position Value 0-100 Temperature Cooldown lift position Press Lift position button, display shows: Standby Enter / change values Cancel Switch off Processdat Start • Move to the °C or min field •... -
Page 25: Quickstart
VITA vPad comfort / excellence / clinical 13.11 Quickstart If the firing chamber temperature is higher than the program’s predrying temperature or the start temperature when a firing program is started, the Quickstart screen is displayed. The Quickstart button is only active in firing programs without predrying. -
Page 26: Create And Edit Materials, Programs And
VITA vPad comfort / excellence / clinical 14 Create and edit materials, programs and user profiles Laboratory At the appropriate level in the display, the Edit button for Materials, Temperature Programs and User profiles (users) is shown. Standby Edit Switch off... - Page 27 VITA vPad comfort / excellence / clinical 1. Select the Material tab Laboratory • Press Edit button Temperature Standby Edit Switch off Figure 1 – display shows materials • Press New button Laboratory Temperature Standby 2. Enter material name (max. 12 characters)
-
Page 28: Change Material
The display shows the modified material. Press the Back button – the display shows figure 1 Materials. Please note: All program values and program names for VITA materials can be changed. The VITA materials names and VITA containers cannot be changed. 14.3 Duplicate material (copy) •... -
Page 29: Delete Material
VITA vPad comfort / excellence / clinical 14.4 Delete material Laboratory • In figure 1 Material, press the Edit button – the editing level is displayed Temperature • Select the Material to be deleted • Press the Delete button Standby Apply using the OK button or press the Cancel button to return •... -
Page 30: Create/Modify Programs
VITA vPad comfort / excellence / clinical 14.8 Create / modify programs Programs can be created or modified under Material or under User. Material On pressing the Material tab, the stored materials are displayed directly. User Laboratory Pressing the User tab shows the created user profiles and, after selecting a Temperature user, the stored materials are displayed. -
Page 31: Modify Programs
VITA vPad comfort / excellence / clinical • Use keys to change pages Laboratory • Program values are entered and saved after selecting the program in the firing curve view (see sect. 13). Temperature Standby 14.9 Modify programs Edit Switch off • Select material in Figure 1 Figure 1 shows materials • In figure 2 Firing programs, press the Edit button – the editing level is displayed •... -
Page 32: Import Programs
VITA vPad comfort / excellence / clinical 14.13 Import programs • Select material in figure 1 • In figure 2 Firing programs, press the Edit button – the editing level is displayed • Press the Import button • Select program to be imported from the USB stick • Press Import or Cancel button Warning: To import data, the USB stick containing the data to be imported must be inserted into the control unit. -
Page 33: Create/Modify User Profiles
Program values of newly created User profiles can be modified. For user profiles already created with password protection, the keypad is displayed for entering the password. If a new user profile is created, a copy of the VITA original programs is added automatically. Laboratory... -
Page 34: Activate/Enter The Password
VITA vPad comfort / excellence / clinical 15.1 Activate / enter the password: button – the keypad is shown • Press the Password • Enter the password • Confirm with OK button • Re-enter the password Press the OK button or Cancel button - the keypad is removed • Password-protected programs can be used by all users;... -
Page 35: Delete A User Profile
VITA vPad comfort / excellence / clinical 15.5 Delete a user profile Laboratory • In figure 1, User Profile, press the Edit button • Select the user profile to be deleted. For password-protected users, Temperature VITA Laboratory the keypad for entering the password is shown. • Enter the password Standby •... -
Page 36: Press Programs
VITA vPad comfort / excellence / clinical 16 Press programs PM 9 The programs stored under this material button are VITA press programs. To create materials of other manufacturers, see sect. 14.1 Creating a new material. Enter/change values Laboratory Press the Press material button, display shows figure 1 Available press programs. -
Page 37: Vacuum Time
VITA vPad comfort / excellence / clinical 16.3 Vacuum time The vacuum time in the press program cannot be adjusted or changed. The vacuum is automatically adjusted during the entire pressing time. 16.4 Pressing temperature/pressing time Press Pressing temperature/pressing time field. -
Page 38: Starting A Press Program
VITA vPad comfort / excellence / clinical 16.7 Starting a press program Note! The press object is inserted only after the start Laboratory temperature has been reached. 3 bar – 1 Pellet Temperature After selecting the press program, the display shows figure 1: •... -
Page 39: Photo Viewer
Name Patient Image 3 Patient name 2 Name The memory capacity of the VITA vPad comfort control unit is 1 GB; Standby Image 4 Name 2 Patient the memory capacity of the VITA vPad excellence control unit is 2 GB. -
Page 40: Settings
(10 characters). The control unit saves the names of all the furnaces. Laboratory VITA vPad comfort – max. 2 devices can be connected. VITA vPad excellence – max. 4 devices can be connected. Temperature... -
Page 41: Furnace Settings
The lift speed can be continuously adjusted using the slide control. Temperature calibration with silver wire test With this program and the VITA silver wire test set (VITA Order No. B 230), the temperature in the firing chamber can be checked and readjusted by up to plus/minus 20°C. During calibration, the prerequisites for performing the test... -
Page 42: Adjust Press Pressure
In the sound program, various acoustic signals can be set: Program start, program end, alarm/service message. VITA vPad comfort, VITA vPad excellence and VITA vPad clinical feature 6 sound groups that can be selected individually. Each sound group consists of 3 signals to indicate program start, program end and alarm. -
Page 43: Device Data
VITA vPad comfort / excellence / clinical The program displays a pressure value that differs considerably. In this case, the OK button is pressed to confirm the message and the press process is continued. During the active press program, the pressure can be readjusted using the pressure regulator. -
Page 44: Date
18.7 Start profile Start profile Select the User profile displayed immediately after switching on the device. On new devices, the control unit is started with the VITA user profile. VITA Press Start profile button, display shows all user profiles available. -
Page 45: Languages
VITA vPad comfort / excellence / clinical 18.8 Languages Languages • Selects the language • Selects the date and time formats • Selects the temperature display in °C or °F 18.9 Basic settings – factory settings: Basic settings The following settings are reset to the factory settings: • Start profile is set to VITA user profile • Display brightness • Program interruption •... -
Page 46: Update
18.11 Update Update Software updates are loaded onto the control unit using a USB stick. See Download / VITA Equipment / Software Updates on the website http://www.vita-zahnfabrik.com for recent software updates. To be informed about new software updates by e-mail, go to Service / Equipment servicing to subscribe to the "VITA Equipment Update Messenger"... -
Page 47: Error Messages
VITA vPad comfort / excellence / clinical 19 Error messages Message on the Observed event Testing / elimination display Vacuum is not Program with vacuum is interrupted • Clean/test/replace the lift plate gasket. achieved if a value of at least 30% is not • Clean the sealing lip on the firing chamber floor. reached within 30 secs For cleaning work, see VACUMAT 6000 M or 6000 MP user manuals. -
Page 48: Alphabetical Order Of Contents
VITA vPad comfort / excellence / clinical 20 Alphabetical order of contents Duplicating programs Ambient conditions Mains power supply failure Duplicating user profile Automatic temperature calibration 10 Main vacuum Authorized modes of operation Mains voltage failure time Electrical data Modifying programs... - Page 49 VITA vPad comfort / excellence / clinical Rise temperature 23, 26, 37 Safety functions Safety signs Scope of delivery Silver wire test set Select firing program Service Settings Setting of press pressure Software Sound Spare parts Starting standby Start press programs...
- Page 50 With the unique VITA SYSTEM 3D-MASTER all natural tooth shades are systematically determined and completely repro- duced. Please note: Our products should be used according to the working instructions. We cannot be held liable for damages resulting from incorrect handling or usage.
