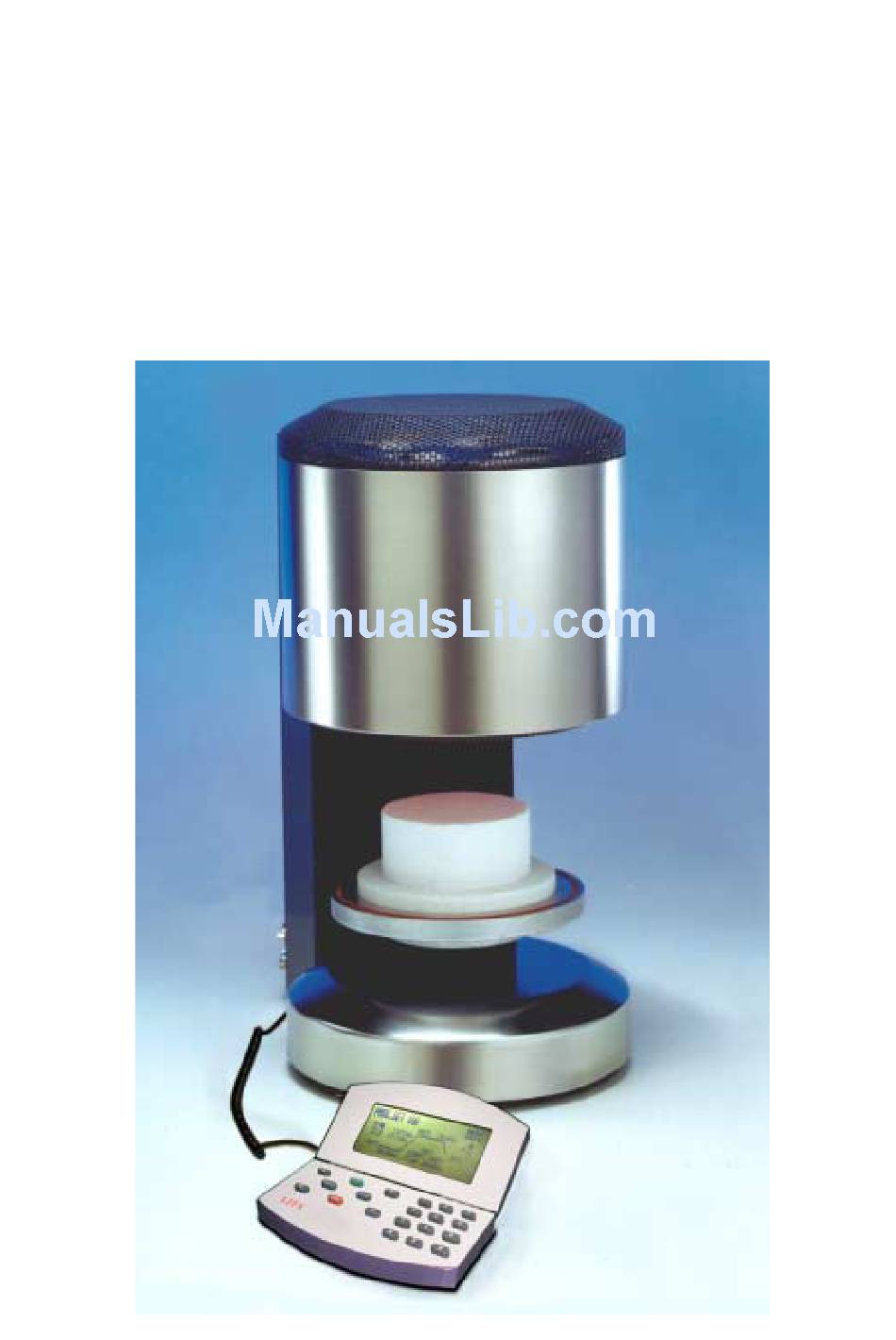

  • Page 1 VITA - Vacumat 40 Operating Manual...
  • Page 2: Table Of Contents

    Service No. 7 Call up furnace No................... 17 Service No. 8 Call up software No..................17 9.10 Service No. 9 Service-Hotline ....................17 9.11 Service No. 10 Temperature adjustment with silver sample ..........18 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 3 VITA - Vacumat 40 9.11.1 Silver sample set VITA - Order No. B 230 ..............19 9.12 Service No. 11 Automatic temperature adjustment..............19 9.13 Service No. 12 Code digit for PC connection ................. 20 9.14 Service No. 13 Activate/reactivate data transfer ..............20 9.15...
  • Page 4: Technical Information

    • 1 pair of furnace tweezers • 1 set of firing trays A + B • 1 set of firing trays G • 1 operating manual vacuum pump (option) : 230 Volts, 50/60HZ Weight approx. 6.4 kg 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 5: Installation And Starting-Up

    If the furnace is not used, the lift should be moved with into the firing chamber and the unit should be switched off with the main switch. Closing the firing chamber will protect the insulation and avoid the absorption of moisture. 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 6: Safety Advice

    Fuses with different values must not be used. 230 Volt T1 H 250 V T 8 H 250 V 100/110 Volt T3,15 H 250 V T 15 H 250 V Fuses 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 7: Ce-Mark

    Changing the Standby temperature see utilities No. 1 If the unit is switched on as well as in the standby mode, the time and the date are displayed. (see utilities No. 15 and 16). 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 8: Firing Programs

    Vacuum 600 °C 600°C Start: 6:00min Stop: 6:00 min The values for lift position, pre-drying (4) and slow cooling (11) can be removed from the display with the utilities program No. 17 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 9: Temperature Rising Rate

    95% (150 mbar - 50 mbar asolute). If the vacuum value of 30% is not reached within 15 sec during a firing program, the firing program is aborted and error message Vaccum, Error 00 is displayed. 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 10: Function Of Keys In The On -, Set - And Run - Mode

    Run-Mode: no function On-Mode : no function Set-Mode: enter program No. and program values Run-Mode: no function 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 11: Set-Mode, Selecting A Program, Changing Program Values

    The key is pressed to set back entered values, Start program starts (changed values are stored) or select/change next program value STOP Set-Mode end (any changed and not confirmed values are not stored). 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 12: Run-Mode, Program Started

    500 °C 2:00 min 930 °C 55°C/min 6:00 min 700 °C VAC: STOP 600 °C Set-Mode End of vacuum Start: 600°C 6:00min Stop: 6:00 min (any changed and unconfirmed values are not stored). 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 13: Slow Cooling

    500 °C 930 °C 2:00 min 55°C/min 6:00 min 700 °C VAC: STOP 600 °C Set-Mode End of vacuum 600°C 6:00min Start: Stop: 6:00 min (any changed and unconfirmed values are not stored). 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 14: Lift Position For Pre-Drying

    600 °C Set-Mode End of vacuum Start: 600°C 6:00min Stop: 6:00 min (any changed and unconfirmed values are not stored). Display for lift positions can be shown or hidden with Service No. 17. 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 15: Utilities

    Service No. 1 Standby ( Standby - Temperature) is pressed, display shows selected value (e.g. 500°C) Service Standby - Temperature : changes of values (range 200°C - 600°C) 500 °C store and end store and start next service program. 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 16: Service No. 2 Lift Speed

    Service No. 3 is displayed. Service Display shows previously selected values. Signal - Time : 10 sec. Acceptable values: 0 - 20 sec. or continuously store and end store and call next service program. 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 17: Service No. 4 Function Stop - Key

    Service No. 6 Show total operating hours of muffle then is pressed until Service No.6 is displayed. Display shows operating hours of muffle. Service Heat - Hour : 00005 h call next service program. 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 18: Service No. 7 Call Up Furnace No

    9.10 Service No. 9 Service-Hotline then is pressed until Service No. 9 is displayed. Service Display shows Tel. * 49 (0) 7761/562222 Hotline : * 49 (0) 7761 - 562222 call next service program. 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 19: Service No. 10 Temperature Adjustment With Silver Sample

    9.11 Service No. 10 Temperature adjustment with silver sample With this program and the VITA silver sample set (VITA Order No. B 230) the temperature in the firing chamber can be checked and readjusted in the range of plus/minus 20°C. Up on readjusting it must be ensured that the instructions to perform (instructions in the silver sample set) the test with the silver sample are strictly adhered to.
  • Page 20: Silver Sample Set Vita - Order No. B 230

    VITA - Vacumat 40 Silver sample set VITA - Order No. B 230 9.11.1 Vita silver sample set for temperature control contains • Description • VITA silver sample set for temperature control • 6 ceramic trays • 3 silver rods with a length of 70 mm and a diameter of 1.5 mm 9.12 Service No.
  • Page 21: Service No. 12 Code Digit For Pc Connection

    These keys are used to select between brightness and contrast, selected value is underlined and can be changed. Acceptable values: Brightness: 0 - 100% Contrast: 0 - 100% store and end store and call next service program. 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 22: Service No. 15 Setting Of Time

    These keys are used to select a 12-hour or 24-hour display of time. Time : 24 h Date : DD : MM : JJ Changes store and end store and call next service program. 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 23: Service No. 17 Show - Hide Display Messages

    Time – format: 24 h Data – format: DD:MM.YYYY Service No. 17 lift position pre-drying lift position slow cooling down Service No. 24 Hold – temperature 130°C Hold – Time 5:00 min. 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 24: Service No. 19 Read Firing Table In The Memory

    = automatically (only with new board) read in memory with key: keep key pressed for 5 sec, (countdown in the display), only then the firing table is read in the memory. call next service program. 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 25: Service No. 20 Delete Process Data

    = write values to memory or READ WRITE read = read in memory of keyboard keep key pressed for 5 sec , ( countdown in the display), only then the data are transferred. call next service program. 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 26: Service No. 22 Service - Write / Read Parameters

    (Software Version: > Core 3.2, Crtl 3.1) then press until Service No. 23 is displayed. Service 22 Language : German to select German, English, Spanish, Italian or French. store and end store and call next service program. 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 27: Service No. 24 Hold -Temperature- Program

    (range 130°C - 700°C) time : 05:00min store and call up holding time changes the values for hold time (range 0:00 – 59:00 min.) Start programm will be started call next service program. 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 28: Error Messages Error 01 - Error 29

    Error messages Error 13 to 29 generally refer to malfunctions of the electronic system as well as communication errors between the keyboard and the main board. When these errors occur, the manufacturer of the furnace or an authorized service company should be contacted. 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 29: Data Transfer

    The connecting cable (figure) required for the transfer of data is included in the accessories of the PC program. Leading-in cable Connection at furnace to COM-Port of PC Functional LEDsFunktions-LED´s (red+green function) (yellow-is lit when connected) Interface converter RS-232/RS-422 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 30: Firing Cycle Charts

    6.00 1.00 6.00 dentine firing 6.00 6.00 1.00 6.00 CORRECTIVE firing with COR 4.00 6.00 1.00 6.00 Glaze firing 2.00 4.00 1.00 Glaze firing with 4.00 4.00 1.00 VITA GLAZE - LT 39/03/04 Vita Zahnfabrik H.Rauter GmbH&Co.KG 79704 Bad Säckingen...
  • Page 31 1.00 ∗) = Enter program number yourself Very good results have been obtained for many years with alloys and VITA Metal Ceramics (OMEGA, OMEGA 900, VMK 95) wehn the alloy had thermal expansion coefficient of 14.0 and 14.4 x 10 (measured from 25°C –...
  • Page 32 (culpa in contrahendo,breach fo contract, tort liability, etc.) can only be made in the case of intent or gross negligence. Date of issue of these instructions for use: 06/01. TÜV Rheinland VITA Zahnfabrik H. Rauter GmbH & Co. KG Postfach 1338 ⋅ D-79704 Bad Säckingen Tel. +49/(0)7761/562-0 ⋅ Fax +49/(0)7761/562-299 Hotline: Tel.
