33R
33L

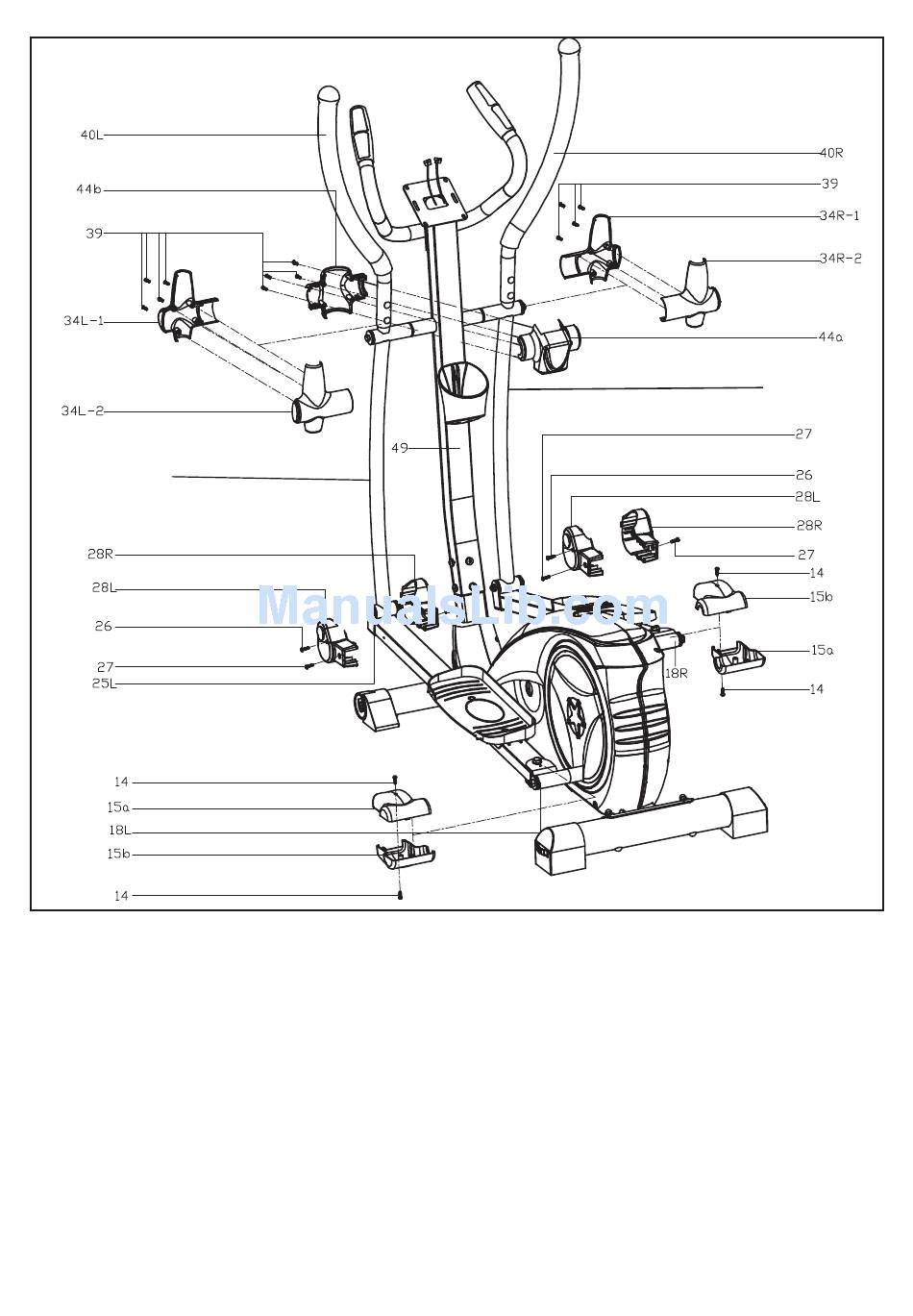

STEP 4
I. Tighten the L/R Handlebars (40L/R) to the L/R Swing tube (33 L/R) with Nylon nuts (21), Arc washers (37) and
Square neck bolts (46).
II. First pass the Pulse wire (43) through the holes of Handlebar post (49) out of console plate, then fix the Fixed
handlebar (55) on the Handlebar post (49) with Allen pan head screw(38) and Arc washers (8).
III. Tighten the shelf (60) to the handlebar post (49) with Cross pan head screw(27).
9
