Overview
3.6

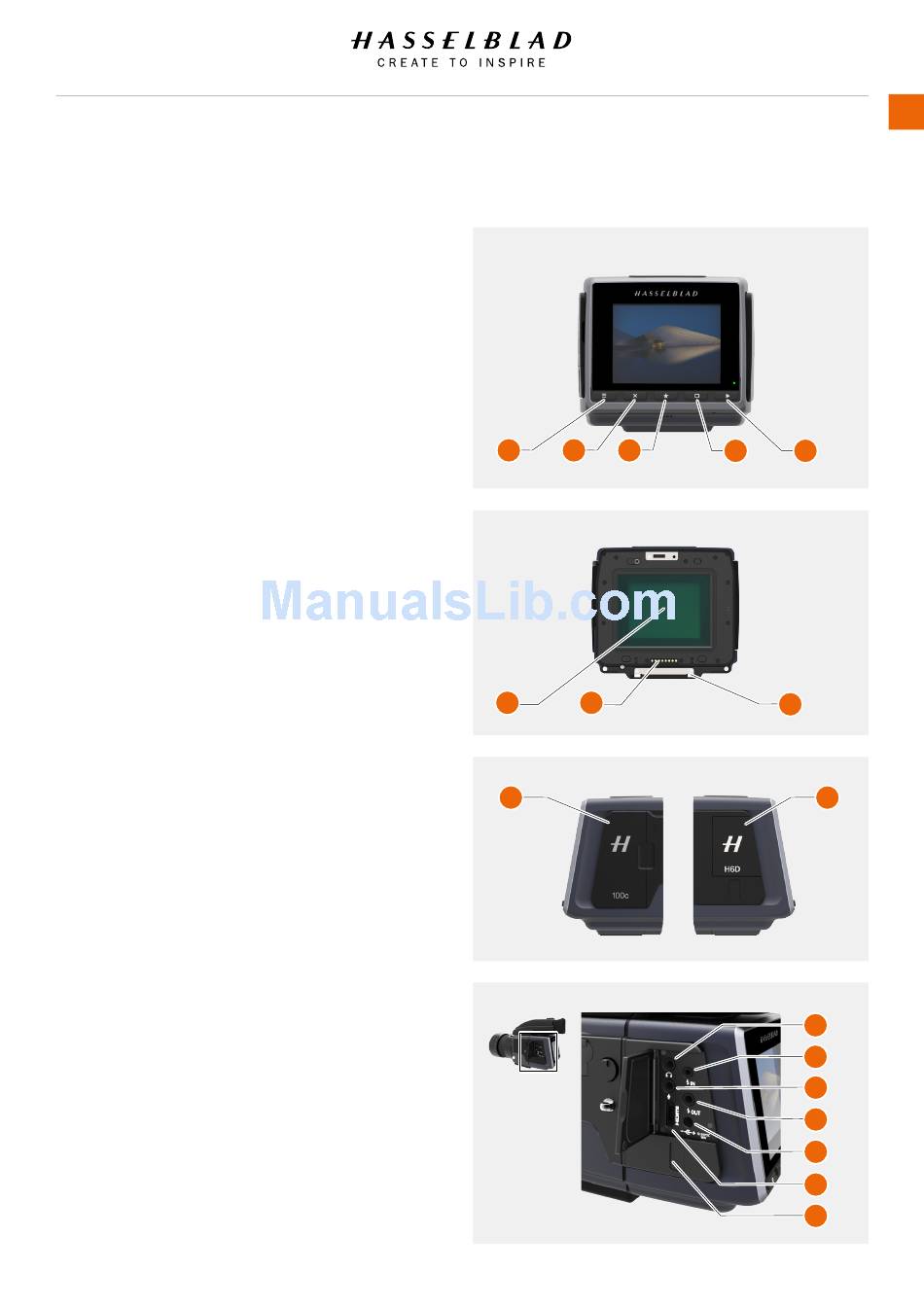

SENSOR UNIT

1 MENU / (EXIT) Button
This button displays the Main Menu.
2 Soft Button
This button is "delete image" in browse mode. Can also be
soft button depending on screen information.
3 Select Button
In Browse Mode this button is used to zoom out to 9 View
mode. In Live View it zooms in to 50/100% (depending on
setting)
4 Soft Button
Function depends on screen information.
5 Browse Button
Starts the display and shows the last image. The user can
review images, browse and zoom. Preview images and zoom
in to view close-ups of previews for focus checking. Zoom
out to view several at once and finally to view and select
folders and media.
6 CMOS and IR Filter
The sensor is positioned behind a permanently mounted
IR filter. Always be very careful not to touch or scratch
the surface of the filter when it is exposed. Replace the
protective cover whenever the sensor unit is not mounted on
a camera.
7 Data Bus Connectors
Connectors for digital communication with the camera body.
8 Retaining Bar
Main support for the sensor unit.
9 Storage Media Cover
CFast or SD cards.
10 Connections Cover
Cover for External Connections.
11 Audio Out
Connector for external 3.5 mm Stereo Audio output Plug.
12 Flash Sync Input
Connector for 2.5 mm Flash Sync input plug.
13 Audio In
Connector for Audio Microphone 3.5 mm Stereo input plug.
14 Flash Sync Output
Connector for 3.5 mm Flash Sync output plug.
15 External Power In
Connector for External Power input plug.
16 HDMI
Connector for Mini HDMI output plug.
17 USB 3 Tethering Plug
Connector behind protective door for USB 3 plug.
H6D
1 2 3
6 7
9
USER GUIDE
4 5
8
10
11
12
13
14
15
16
17
