View camera connectivity
6.1

VIEW CAMERA OPERATION

The Sensor Unit of the H6D camera can be detached and
used on other types of cameras, e.g. View Cameras, with
an H System magazine interface. This will enable the use of
additional functionality such as extended Tilt and Shift using
lenses with large image circle.
The current firmware of the H6D camera enables the following
modes of operation:
1 Flash Sync Mode
2 Pinhole Mode
POWER SOLUTION

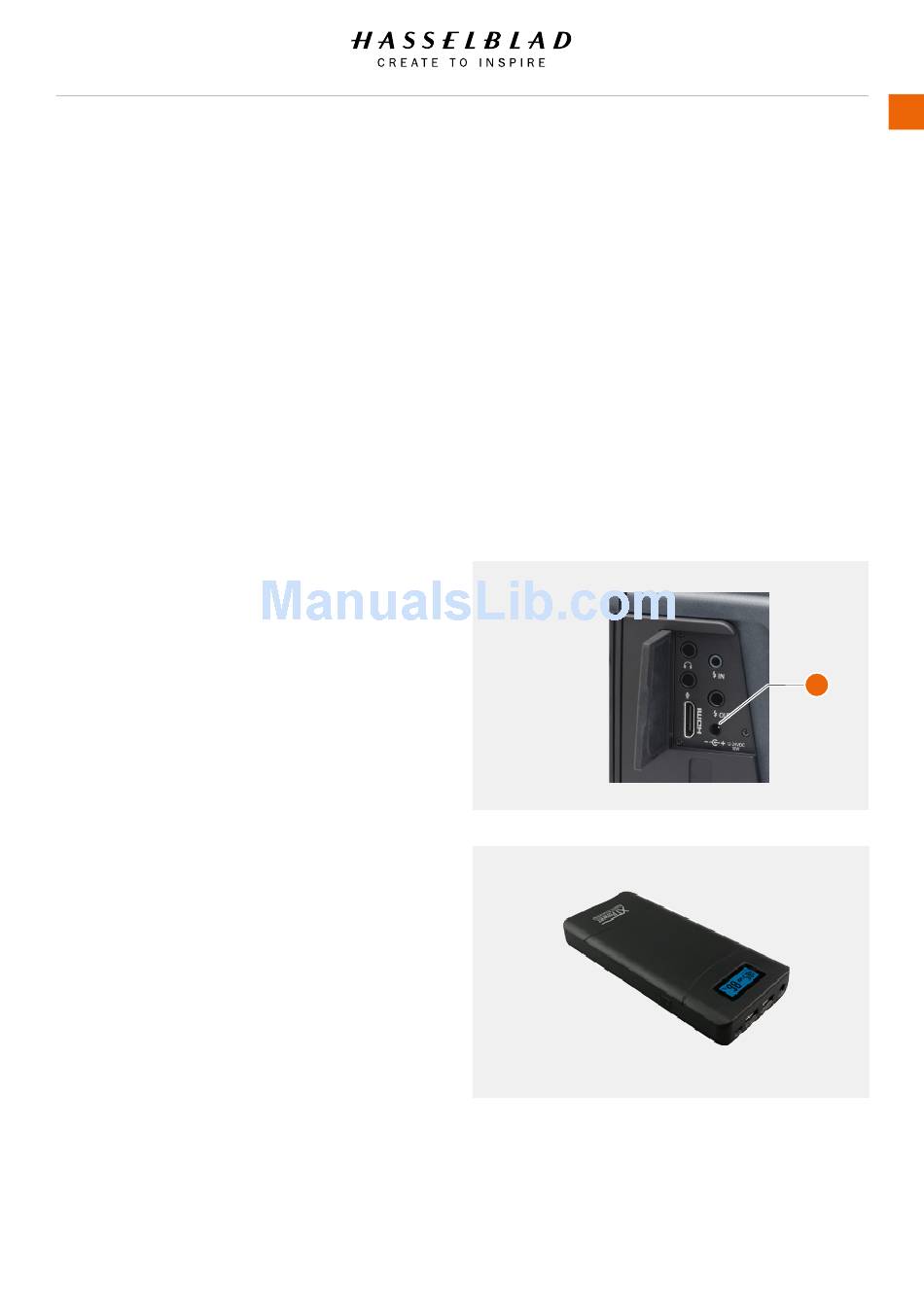

When the Sensor Unit is detached from the H6D camera body,
external power will have to be provided to the DC input (A). The
input voltage range is 12 to 24 VDC.
A good external power solution is a Laptop Powerbank. This has
normally an adjustable output voltage and sufficient power for
extended use. One model that has been tested and qualified to
work is the "XT-20000QC2 Power Bank" from XTPower. See
"https://www.xtpower.de".
Hasselblad will on request and free of charge supply a DC
Cable between the Power Bank and the Camera (Item number
3054180). Please contact your dealer.
Note!
When using power banks other than the XT-20000QC2, please
make sure that the minimum output power before automatic
shut-off is equal to or lower than 2.5W. A higher value can turn
off the battery when the camera goes to standby mode.
H6D
Power Connection
External Power solution
XT-20000QC2
USER GUIDE
A
