STUDIO DUE PAR LED 100 1506 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User manual for art. 1506-1507-1508-1509
Manuale d'uso per art. 1506-1507-1508-1509

Advertisement

loading
Need help?

Need help?

Do you have a question about the PAR LED 100 1506 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STUDIO DUE PAR LED 100 1506

Summary of Contents for STUDIO DUE PAR LED 100 1506

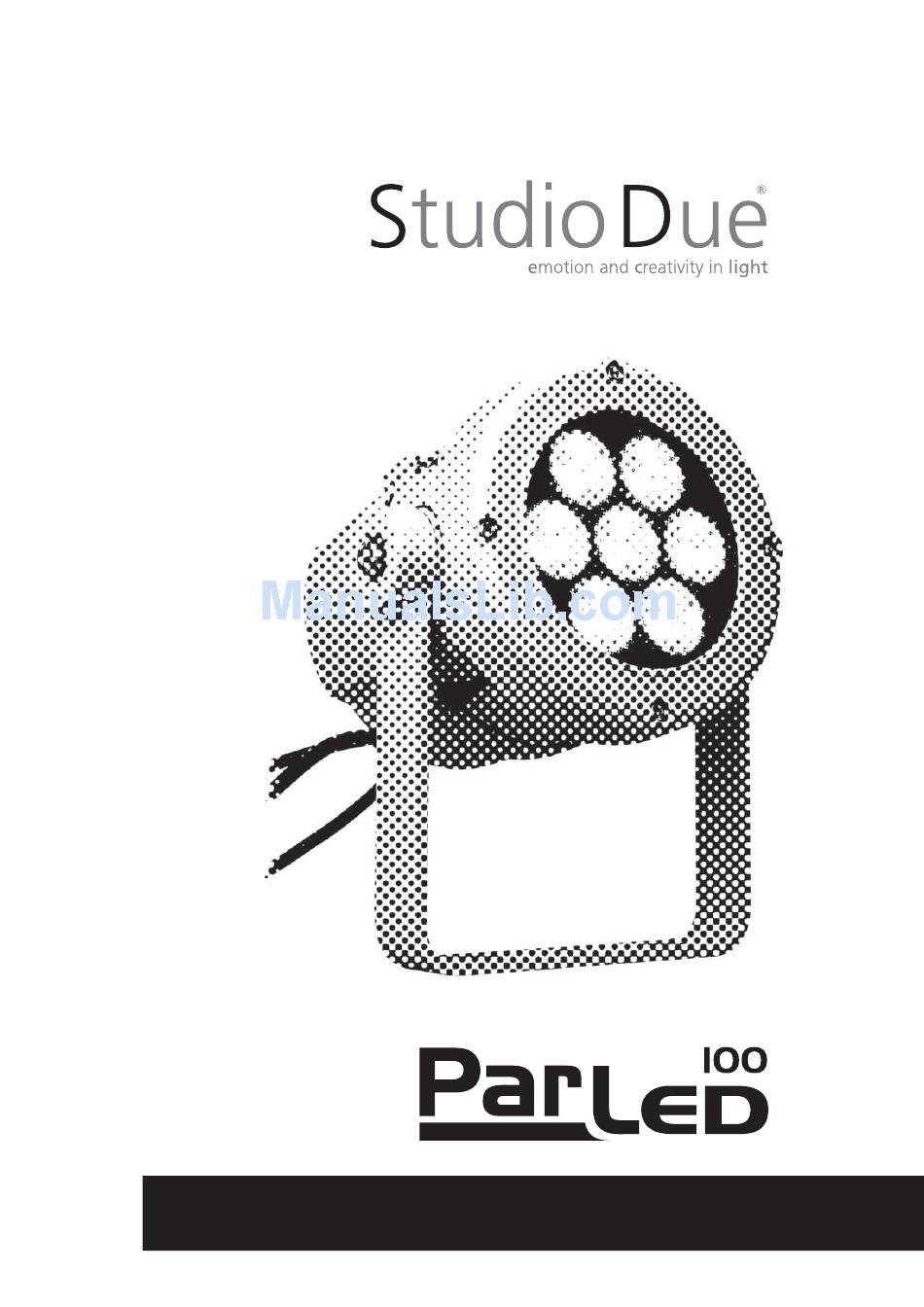

  • Page 1 User manual for art. 1506-1507-1508-1509 Manuale d’uso per art. 1506-1507-1508-1509...
  • Page 2 this page is intentionally left blank / questa pagina è stata lasciata intenzionalmente bianca...
  • Page 3 AMPHENOL connectors 4 or 4 or FEMALE MALE WARNING SIGNAL IMPORTANTE GROUND/RETURN/OV N.C. DATA COMPLEMENT ( -, INVERTED) DATA TRUE ( +, NON INVERTED) In questo connettore potete trovare il NUMBER 4 or the GROUND sign. NUMERO 4 o il simbolo della TERRA. IMPORTANTE WARNING Se volete utilizzare gli apparecchi...
  • Page 4 INDEX Page 4 - Safety informations / Informazioni di sicurezza Page 5 - Introduction / Introduzione Page 6 - Technical features / Caratteristiche tecniche Page 7 - Example of connection DMX controller-fixtures / Esempio di collegamento centralina DMX-fari Page 8 - Main supply connection / Collegamento fonte di alimentazione Page 9 - DMX signal connection / Collegamento segnale DMX Page 10 - DRS functioning / Funzionamento del DRS Page 11 - Control panel functions / Funzioni del pannello di controllo...
  • Page 5 WARNING SAFETY INFORMATION (service personnel) READ ALL CAUTIONS AND WARNINGS PRIOR TO OPERATE THIS EQUIPMENT. INSTRUCTION TO PREVENT INJURY OR DAMAGE DUE TO ELECTRIC SHOCK, FIRE, MECHANICAL HAZARDS, DANGEROUS MATTERS. At the end of its life, must be collected separately. It shouldn’t be thrown as urban waste and neither released in the environment.
  • Page 6 Thanks for using Parled 100. The PARLED 100 is our new IP67 compact spot. Available in four version RGBW and Monochromatic. The robust design of the fixture is fully die-cast aluminum. High light output and spectacular effects are the key drivers of the fixture. Standard fixture colour finishing is grey.
  • Page 7 art. 1506 art. 1508 art. 1507 art. 1509 warm neutral cool n. 7 RGBW/FC LEDs n. 7 high power 5000K White LEDs Total out lumen: Total out lumen: 4000lm (white LEDs 5000K) Red 500lm, Green 820lm, Blue 150lm, White 1050lm Total light power: 34W 25°...
  • Page 8 DMX out DMX out Connection controller-spot to Collegamento centralina-spot ad una sola SIGNAL AMPLIFIER AMPLIFICATORE DI SEGNALE NORMAL MASTER/SLAVE Address Address Address Address set-up = SLAVE set-up = SLAVE set-up = SLAVE set-up 9ch set-up 9ch set-up 9ch set-up 9ch Set up = MASTER Terminal Line...
  • Page 9 This equipment must be earthed. Class I equipment. The power supply cord includes a protective earthing conductor as part of the cord. IMPORTANT: to ensure the IP67 protection rating, in case of replacement of the conductor cable, refer to the CONDUCTOR SIZE TABLE Questo apparecchio necessita di messa a terra.
  • Page 10 The wrong connection of the terminal line or its non-connection are probably the most frequent reasons for the defective functioning of the DMX line. The terminator is a terminal resistor fitted at the end of the cable furthest from the transmitter. The terminal resistor should have the same value as the impedance of the connection cable.
  • Page 11 To make the set-up of the various fixture parameter, proceed as follow: 8888 sign written and afterwards, displays the name of the fixture and its software version. shows the written Per effettuare la programmazione dei vari parametri di un apparecchio, è necessario procedere come segue: 8888 e, successivamente, visualizza il nome dell’apparecchio e la relativa versione software malfunzionamento il display visualizzerà...
  • Page 12 All’accensione, viene visualizzato il modello di apparecchio e la versione software. Per esempio: --> Studio Due ..--> 1_1 0 --> DMX channel --> C001 than it’s shown the first DMX channel. When you press any button it’s shown the first menu.
  • Page 13 press ENTER for submenu / premere ENTER per i sottomenu (Mode) Set the DMX/SLAVE/MASTER mode / Imposta la modalità DMX/SLAVE/MASTER > Select the value no .. sl .. with the UP/DOWN buttons. Press ENTER. > Selezionate il valore desidarato no .. sl .. con i tasti UP/DOWN.
  • Page 14 press ENTER for submenu / premere ENTER per i sottomenu (SMth) Set the interpolation type for the smooth dimming function Imposta il tipo di interpolazione per la funzione smooth dimming > Select the value 1 ..3 .. 4 whit the UP/DOWN buttons. Press ENTER. >...
  • Page 15 * WIRELESS MENU this menu is present but can be edited if the optional art. WI DMX-REC (Wireless on board DMX 512 receiver) is installed on the fixture * MENU WIRELESS questo menu è presente ma è editabile solo con l’accessorio art. WI DMX-REC installato sull’apparecchio (Ricevitore DMX 512 wireless) press ENTER for submenu / premere ENTER per i sottomenu Enable or disable the wireless reception / Consente o non consente la ricezione wireless...
  • Page 16 CH1: CH1: Cyan CH2: Green CH2: Yellow CH3: Blue CH3: Magenta CH4: White CH4: Not used CH5: Strobe CH5: Strobe CH6: Dimmer CH6: Dimmer CH7: Led Fade Time CH7: Led Fade Time CH8: Rainbow CH8: Rainbow CH9: Fix White (Balanced White) CH9: Fix White (Balanced White) CH1:...
  • Page 17 GREEN BLUE WHITE 2-127 128-255 Strobe Open Dimmer 0=CUT LINEAR fade time FAST SLOW Rainbow 0-15 16-255 Balanced white normal GREEN BLUE WHITE Dimmer Rainbow...
  • Page 18 GREEN BLUE WHITE Dimmer GREEN BLUE WHITE STUDIODUE light s.r.l. str. Poggino, 100 - 01100 VITERBO ITALY - tel. +39 0761 352520 - fax +39 0761 352653 http://www.studiodue.com E-Mail: info@studiodue.com - service@studiodue.com...
  • Page 19 CH1: Dimmer CH1: Dimmer CH2: Strobe CH3: Fade Dimmer 2-127 128-255 Strobe Open 0=CUT LINEAR fade time FAST SLOW Dimmer...
  • Page 20 Here below the list of 24 preset of the fixture. Qui di seguito la lista dei 24 giochi presenti nell’apparecchio. Preset 11 RAINBOW MID to ..to ..
  • Page 22 PARLED 100/FC 05/2016 Dichiarazione di conformità Declaration of conformity La ditta: STUDIO DUE light s.r.l. The firm: Strada Poggino, 100 01100 VITERBO ITALY dichiara sotto la propria responsabilità che il prodotto: declare under our sole responsability that the product: PARLED 100/FC - RGBW/FC IP20 code 1506 è...
  • Page 23 PARLED 100/FC DRS 05/2016 Dichiarazione di conformità Declaration of conformity La ditta: STUDIO DUE light s.r.l. The firm: Strada Poggino, 100 01100 VITERBO ITALY dichiara sotto la propria responsabilità che il prodotto: declare under our sole responsability that the product:...
  • Page 24 PARLED 100/M 04/2016 Dichiarazione di conformità Declaration of conformity La ditta: STUDIO DUE light s.r.l. The firm: Strada Poggino, 100 01100 VITERBO ITALY dichiara sotto la propria responsabilità che il prodotto: declare under our sole responsability that the product: PARLED 100/M - Monochromatic IP67 code 1508 è...
  • Page 25 PARLED 100/M DRS 04/2016 Dichiarazione di conformità Declaration of conformity La ditta: STUDIO DUE light s.r.l. The firm: Strada Poggino, 100 01100 VITERBO ITALY dichiara sotto la propria responsabilità che il prodotto: declare under our sole responsability that the product:...

  • Page 26: Warranty Card

    Warranty CARD Company name: ..........................Mr./Mrs./Miss: ..........................Address: ............................Tel. or E-mail : ..........................Dealer: ..................... 1) Price quoted are not inclusive of lamp and package. Package charge is 2% on the net price for all the items. These prices should be subject to possible variations for eventual rises of production costs or duties. Claims for possible damages during the freight, must be notified to the carrier.
  • Page 27 this page is intentionally left blank / questa pagina è stata lasciata intenzionalmente bianca...
  • Page 28 Studio Due light - © The features on this brochure are not binding: they can be changed without notice. Le caratteristiche riportate su questo catalogo non sono impegnative: possono essere soggette a variazioni senza preavviso.

This manual is also suitable for:

Par led 100 1507Par led 100 1508Par led 100 1509
