STUDIO DUE PARBAR RGBW/FC User's And Operator's Manual

Led spot line
Hide thumbs

Advertisement

Quick Links

Download this manual
RGBW/FC
User's and operator's manual for art. 1510
Manuale d'uso e dell'operatore per art. 1510

Advertisement

loading
Need help?

Need help?

Do you have a question about the PARBAR RGBW/FC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STUDIO DUE PARBAR RGBW/FC

Summary of Contents for STUDIO DUE PARBAR RGBW/FC

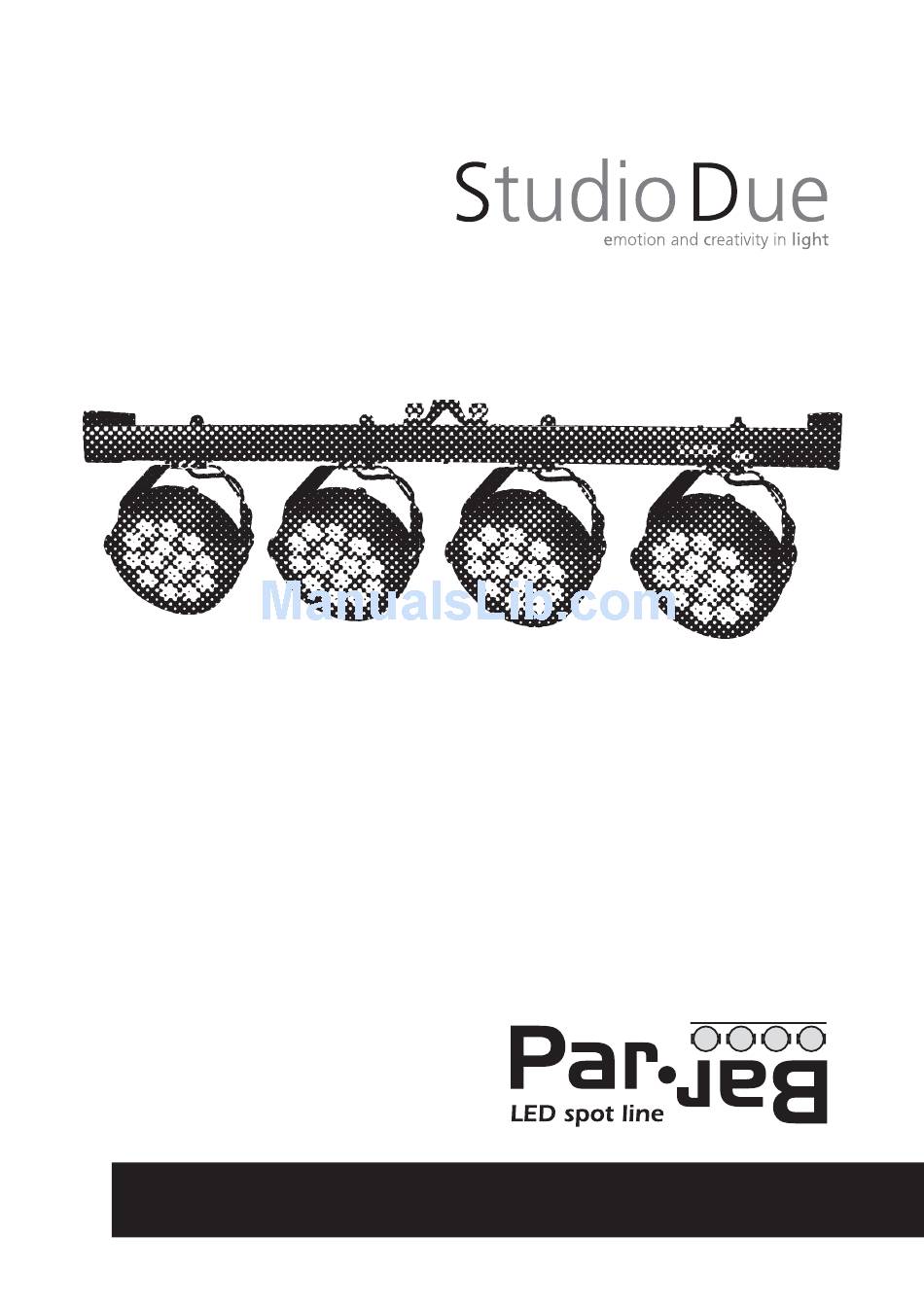

  • Page 1 RGBW/FC User’s and operator’s manual for art. 1510 Manuale d’uso e dell’operatore per art. 1510...
  • Page 2 INDEX Page 3 - Safety informations / Informazioni di sicurezza Page 4 - Introduction / Introduzione Page 5 - Technical features / Caratteristiche tecniche Page 6 - Main supply connection / Collegamento fonte di alimentazione Page 6 - DMX signal connection / Collegamento segnale DMX Page 7 - Example of connection DMX controller-spot / Esempio di collegamento centralina DMX-fari Page 8 - Fixture setup by DRS / Settaggio dell’apparecchio tramite DRS Page 9 - DRS functioning / Funzionamento del DRS...
  • Page 3 WARNING SAFETY INFORMATION (service personnel) READ ALL CAUTIONS AND WARNINGS PRIOR TO OPERATE THIS EQUIPMENT. INSTRUCTION TO PREVENT INJURY OR DAMAGE DUE TO ELECTRIC SHOCK, FIRE, MECHANICAL HAZARDS, DANGEROUS MATTERS. This product at the end of its life, must be collected separately. It shouldn’t be thrown as urban waste and neither relea- sed in the environment.

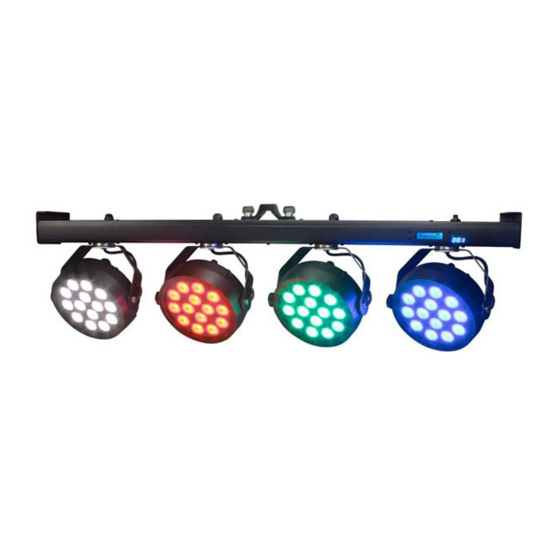

  • Page 4 INTRODUCTION Thanks for using PARBAR rgbw/fc, our wash LEDs multipar system. Suitable for touring, tv studios, venues, theatres and generally for the entertainment market. This fixture is wireless ready. Integral Wireless DMX control is available as an option (art. WI PCB-REC).
  • Page 5 n. 14x4 RGBW Full Color LEDs Total out lumen: Red 4000lm, Green 7000lm, Blue 1200lm, White 8500lm 15° standard beam (38mm lenses) On request: medium, wide 38mm lenses Manual: Pan 160° - Tilt 240° Standard interface: RS-485; opto-couplet input Protocol: USITT DMX 512 Signal: XRL 3pin and 5pin connector (male-female) Available as accessories: - Wireless DMX receiver...

  • Page 6: Dmx Output

    This equipment must be earthed. Class I equipment. The power supply cord includes a protective earthing conductor as part of the cord. Questo apparecchio necessita di messa a terra. Apparecchio di Classe I. Il conduttore di protezione deve far parte del cavo di alimentazione. WARNING Brown 100/240V.~ - 50/60Hz...
  • Page 7 Example 1/ Esempio 1 DMX out Last spot/ Ultimo spot Termination resistor/ Terminale di linea Example 2 / Esempio 2 DMX 1 out DMX 2 out Last spot/ Ultimo spot Termination resistor/ line 1 / linea 1 Terminale di linea Last spot/ Ultimo spot Termination resistor/...
  • Page 8 The DRS it’s a new concept of professional LED Lighting fixtures suitable for outdoor permanent installations. Every single LED fixture can be controlled and configured via DMX through a specific electronic device, the DRS DMX Remote Setup, that grant the possibility to set up the scenarios and the games remotely. These LED Lighting fixtures have installed on board a series of programs including the stand alone function.
  • Page 9 DRS (DMX Remote Setup) FUNCTIONING To make the set-up of the various fixture parameter, proceed as follow: 8888 sign Conn written and afterwards, displays the name of the fixture and its software version. shows the SCAn written Per effettuare la programmazione dei vari parametri di un apparecchio, è necessario procedere come segue: 8888 Conn e, successivamente, visualizza il nome dell’apparecchio e la relativa versione software malfunzionamento il display visualizzerà...

  • Page 10: Button Functions

    BUTTON FUNCTIONS LED DMX signal LED DMX channel DOWN - to go backward in the selected options - scorrimento indietro - to go forward in the selected options - scorrimento avanti - exit from menu and return to a previus menu level - esce dal menu e torna ad un livello inferiore ENTER - to confirm the selected options - conferma delle opzioni selezionate...
  • Page 11 follow/segue MENU ADDRESS ADDRESS > You see this screenshot. Press ENTER. > Vedrete questa schermata. Premere ENTER. ADDRESS > Select the value whit the UP/DOWN buttons. If necessary * press ENTER. [ 001 ] > Selezionate il valore desidarato con i tasti UP/DOWN. Se necessario * premere ENTER. MENU MODE MODE MODE...
  • Page 12 follow/segue HOURS > You see this screenshot. 0002 > Vedrete questa schermata. MENU FORMAT FORMAT > You see this screenshot. Press ENTER. > Vedrete questa schermata. Premere ENTER. FORMAT > Select the value whit the UP/DOWN buttons. If necessary * press ENTER. [ OK? ] >...

  • Page 13: Wireless Off

    [ PAIRING ] <<< ERROR MENU >>> >>> ERROR1: Contact Studio Due SERVICE / Contattare il Servizio Clienti Studio Due. Overtemperature protection. Disconnect the power, wait a few minutes and the fixture will be ready again. Protezione per temperatura troppo alta. Disconnettere l’apparecchio e attendere qualche minuto, l’apparecchio tornerà...
  • Page 14 CH1: CH1: Cyan CH2: Green CH2: Yellow CH3: Blue CH3: Magenta CH4: White CH4: Not Used CH5: CH5: Cyan CH6: Green CH6: Yellow CH7: Blue CH7: Magenta CH8: White CH8: Not Used CH9: CH9: Cyan CH10: Green CH10: Yellow CH11: Blue CH11: Magenta...
  • Page 15 Ch 1-5-9-13 Ch 2-6-10-14 GREEN Ch 3-7-11-15 BLUE Ch 4-8-12-16 WHITE 2-127 128-255 Ch 17 Strobe Open Ch 18 Dimmer Ch 19 0=CUT LINEAR fade time FAST SLOW Ch 20 Rainbow 0-15 16-255 Ch 21 Balanced white normal Ch 1-5-9-13 Ch 2-6-10-14 GREEN Ch 3-7-11-15...
  • Page 16 1236,00 183,01 rel.1 - 05/16...
  • Page 17 1243,00 rel.1 - 05/16...
  • Page 18 01100 VITERBO ITALY dichiara sotto la propria responsabilità che il prodotto: declare under our sole responsability that the product: PARBAR RGBW/FC (full color) IP20 code 1510 è conforme alle norme: is in conformity with the standard: EN 60598-1 Ed. VII (CEI 34-23 Ed. II) EN 60598-2-17 Ed.

  • Page 19: Warranty Card

    Warranty CARD Company name: ..........................Mr./Mrs./Miss: ..........................Address: ............................Tel. or E-mail : ..........................Dealer: ..................... 1) Price quoted are not inclusive of lamp and package. Package charge is 2% on the net price for all the items, except for art. 0403 (CS4), that is 4%. These prices should be subject to possible variations for eventual rises of production costs or duties.
  • Page 20 +44.1933.650.820 info@studiodue.co.uk www.studiodue.com for technical info Studio Due - © The features on this brochure are not binding: they can be changed without notice. Le caratteristiche riportate su questo catalogo non sono impegnative: possono essere soggette a variazioni senza preavviso.
