Wet/Dry Vacuums

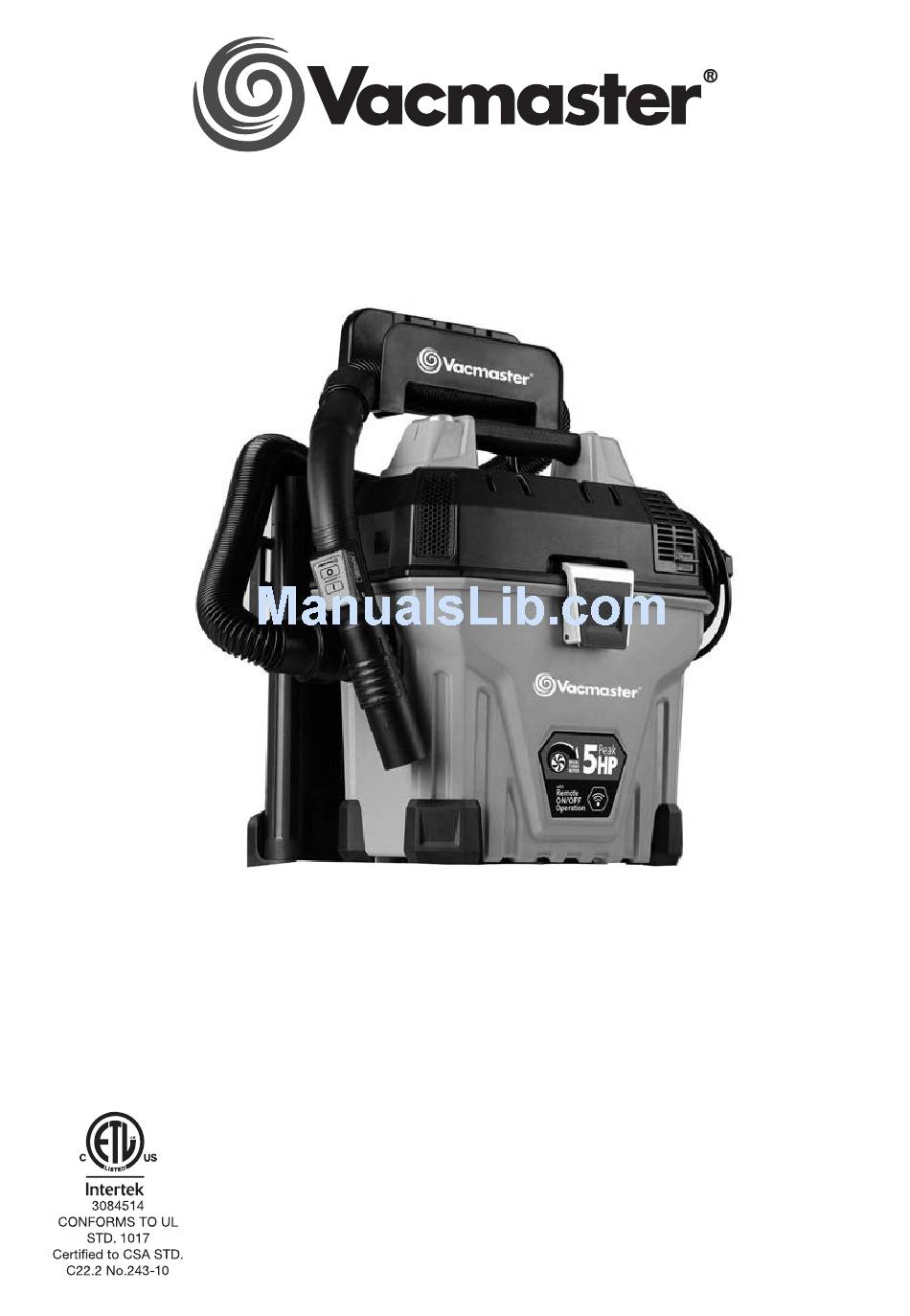

Operator's Manual

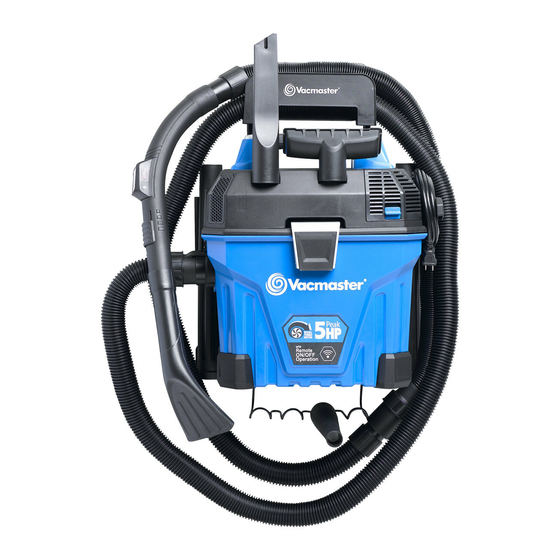

Wall Mountable Wet/Dry Vacuum
VWMB508 0101

FOR YOUR SAFETY

Read and understand this manual before use.
Keep this manual for future reference.
Distributed by:
Costco Wholesale Corporation
P.O. Box 34535
Seattle, WA 98124-1535
1-800-774-2678
www.costco.com
Model No.
USA
ITM. / ART. 1043254
Importado por:
Importadora Primex S.A. de C.V.
Blvd. Magnocentro No.4
San Fernando La Herradura
Huixquilucan, Estado de México
C.P. 52765
RFC: IPR-930907-S70
(55)-5246-5500
www.costco.com.mx
Spanish/Español pg. 19

Advertisement

Table of Contents
loading

Related Manuals for Vacmaster VWMB508 0101

Summary of Contents for Vacmaster VWMB508 0101

  • Page 1: For Your Safety

    ITM. / ART. 1043254 Wet/Dry Vacuums Operator’s Manual Wall Mountable Wet/Dry Vacuum Model No. VWMB508 0101 FOR YOUR SAFETY Read and understand this manual before use. Keep this manual for future reference. Importado por: Importadora Primex S.A. de C.V. Distributed by: Blvd.

  • Page 2: Table Of Contents

    FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS. WARRANTY ® We take pride in producing a high quality, durable product. This Vacmaster product carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase under normal household use.
  • Page 3 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Safety Instructions And Warnings

    Safety is a combination of common sense, staying alert, and knowing how your vacuum works. Use this Wet/Dry Vac only as described in this manual. To reduce the risk of personal injury or damage to your Wet/Dry Vac, use only Vacmaster ®...

  • Page 5: Double Insulation Instructions

    DOUBLE INSULATION INSTRUCTIONS This Wet/Dry Vac is double-insulated, eliminating the need for a separate grounding system. Use only identical replacements parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacs before servicing. Use this Wet/Dry Vac as described in this manual. Observe the following warnings that appear on the motor housing of your Wet/Dry Vac.

  • Page 6: Package Contents

    PACKAGE CONTENTS Remove entire contents of carton. Check each item against the carton contents list. Carton Contents List: Key Description ..………………….…..Qty. Hose Storage Rack …………... Hose Storage Support ……...…..Wall Mount Rack ..……..…...…..Wire Accessory Rack …….……..Vac Assembly ….…......Standard Hose ………….……..

  • Page 7: General Assembly Instructions

    (fig. 6) 7. Insert the steel rod with hose holding rack into the two holes located on the top of the mounting rack. Ensure the Vacmaster logo is facing forward. (fig. 7)
  • Page 8 MOUNTING RACK AND STORAGE ASSEMBLY IMPORTANT! • Do not mount the rack over 1.5 m / 5 ft from the floor. • Do not screw the rack to drywall only. Secure the screws to a stud. • Do not hang from or sit on the mounting rack. •...

  • Page 9: Dry Vacuum Operation

    DRY-VACUUM OPERATION DRY VACUUMING WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL OR AEROSOL SPRAYS.

  • Page 10: Liquid Vacuum Operation

    OPERATING INSTRUCTIONS: DRY VACUUMING 5. Insert the locking end of the hose into the vacuum port and lock in place. Push the required attachment onto the free end of the hose or extension. (fig. 5) 6. Verify that the switch is in the 'O' (OFF) position before plugging the power cord into the outlet (fig.
  • Page 11 DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING. 1. Verify that the power cord is disconnected from the outlet (fig. 1). Verify that the container is clean and free of dust and dirt. 2. Remove the cartridge filter, then carefully install the foam sleeve filter over the filter cage (fig. 2) and place the power head back on the container.

  • Page 12: Blower Operation

    BLOWER OPERATION This Wet/Dry Vac has blowing capabilities. To use the blower feature follow the instructions listed. WARNING: ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (or in Canada, CSAZ94.3) BEFORE USING BLOWER. CAUTION: KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS. WARNING: WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BE INHALED.

  • Page 13: Care And Maintenance

    CARE AND MAINTENANCE WARNING: ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE REMOVING THE POWER HEAD FROM THE CONTAINER. 1. Verify that the power cord is disconnected from the outlet. (fig. 1) 2. Disconnect the hose from the vacuum. (fig. 2) 3.

  • Page 14: Installing & Cleaning Cartridge Filter

    INSTALLING & CLEANING CARTRIDGE FILTER Installing Cartridge Filter 1. Verify that the power cord is disconnected from the outlet. (fig. 1) 2. Remove power head and place in upside down position. 3. Install the cartridge filter over the filter cage with the flat end of the filter towards the vacuum power head.

  • Page 15: Resetting The Remote Control

    RESETTING THE REMOTE CONTROL 1. Have the remote control accessible. Set the power switch on the vacuum to the remote control position “ ”. (fig. 1) 2. Press the RESET button on the side of the power head with pointed object such as paper clip or a pen tip until the indicator lights up.

  • Page 16: Troubleshooting

    TROUBLESHOOTING WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK - UNPLUG BEFORE TROUBLESHOOTING. Symptom Possible Causes Corrective Action 1) No power supply. 1) Check power supply – cord, breakers, fuses. Vacuum will not operate 2) Unplug and check the 2) Faulty power cord. power cord.

  • Page 17: Exploded View

    EXPLODED VIEW...

  • Page 18: Parts List

    PARTS LIST Description Part # Included with Vac Power Head Assembly Tank Latch Assembly TVQTDK.14.01.X1.01 Vacuum Port Assembly TVQTXK.06.01.X5.01 Bumper Foot VW50P1.20.02.X1.01 Hose Storage Rack VW02P1.20.02.Y2 Hose Storage Support VW50P1.30.04.W1.00 Wall Mount Rack VW50P1.30.03.X2.01 Accessory Storage Rack VW01P1.30.03 Foam Filter FV9504.01.00 Cartridge Filter FV9543.06.20...
