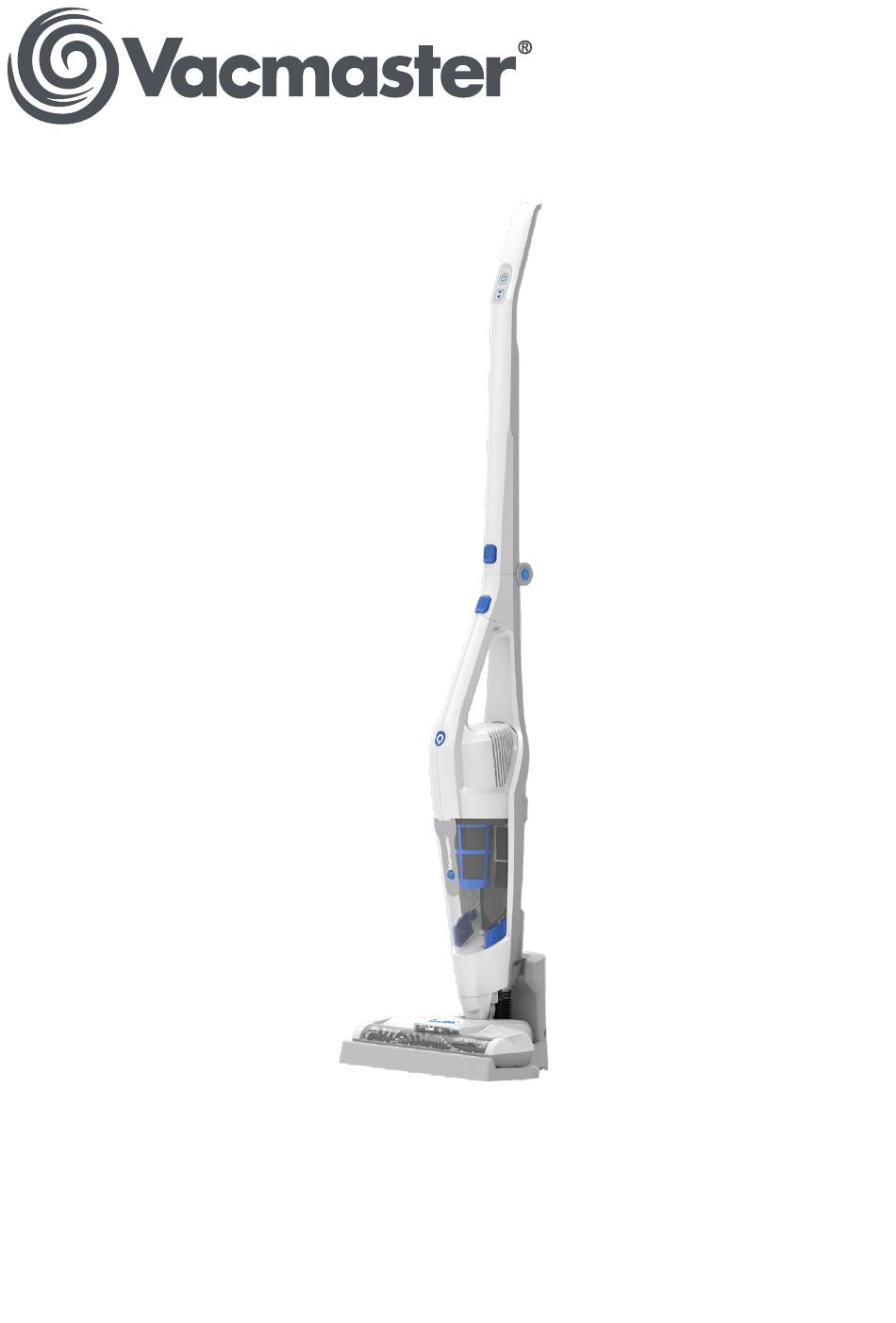

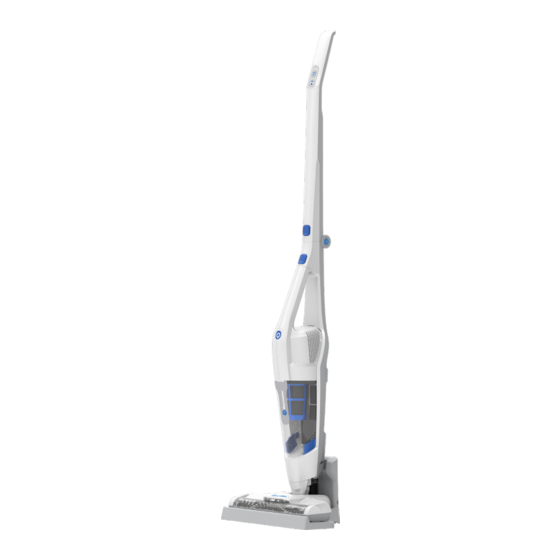

- Page 1 Use & Care Guide 18V 2-in-1 Cordless Stick Vacuum MODEL NO. VSD1801 www.vacmaster.com Cleva North America, Inc. Greenville, SC 29607 (866) 384-8432 Made in China...
-
Page 2: Table Of Contents
Operating Instructions........................11-13 Maintaining Your Vacuum........................ 14-17 Troubleshooting..........................18-19 Thank you for purchasing this Vacmaster® vacuum cleaner. With it you are obtaining a high quality product that is engineered for optimal performance. FOR YOUR SAFETY Read and understand this manual before use. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING - To reduce the risk of fire, electric shock, or injury: •... -
Page 4: Save These Instructions
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. • Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush affected area with water. - Page 5 WARNING Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 6: Warranty
WITH PROOF OF SALE, a defective appliance will be replaced free of charge. For warranty coverage details to obtain free replacement, visit the web page: www.vacmaster.com or call (866) 384-8432. • This warranty does not cover filters, which are expendable parts that can wear out from normal use within the warranty period. -
Page 7: Getting To Know Your Vacuum
Combination Tool Storage Charging Base Motorized Brush Powerhead Charging Adapter 2-In-1 Combination Tool REPLACEMENT PARTS Item Part No. Filter 561042108 Charging base 561042109 Combination Tool 561042111 Charging Adapter 561005107 Filter Basket 561042107 Brushroll 561042104 Available online at www.vacmaster.com or call (866) 384-8432. -
Page 8: General Assembly Instructions
GENERAL ASSEMBLY INSTRUCTIONS Assembly Instructions 1. Unfold the vacuum folding handle. Put the vacuum folding handle upward, until there is a click from the folding handle button. Click 2. Fit the end of the main body onto the neck of the motorized powerhead and click into place. - Page 9 3. Insert the hand vacuum into the slot on the bottom of main body, then press the handle into locked slot and click into place. 4. Insert the top of the charging base into the bottom of the charging base and lock into place.
- Page 10 6. Plug the adapter into a wall outlet. Note: Use only the charger supplied with your cleaner to recharge. 7. Insert the 2-in-1 combination tool into the slot on the charging base for convenient storage. Charging Instructions 1. Before charging, make sure the cordless vacuum is turned OFF. With the hand vacuum installed in the stick vacuum, insert the vacuum cleaner onto the charger base as shown.
-
Page 11: Operating Instructions
2. The Hand vacuum on/off button will show the progress of the charge. While the vacuum is being charged, the battery charge indicator will be flashing. Once fully charged, the indicator will be off. On/Off Button & Battery Indicator Battery indicator Status Flashing light Charging... - Page 12 2. To switch the speed to LOW, press the speed control button. Press the speed control button again to switch back to HIGH speed. 3. To stop the vacuum, press the power button. Using Your Hand Vacuum 1. To remove the hand vacuum, press the hand vacuum button and detach from the main body.
- Page 13 4. The combination tool can be used as a crevice tool or dusting brush. To transition from crevice to dusting brush, depress the latch on the tool and slide the part to the top of the tool. Storing Your Vacuum 1.
-
Page 14: Maintaining Your Vacuum
MAINTAINING YOUR VACUUM CAUTION To reduce the risk of shock, remove vacuum cleaner from the charging base, and turn off before performing any service or maintenance. Emptying the Dust Container & Cleaning the Filter 1. Remove the hand vacuum from the main body by pressing the hand vacuum release button. - Page 15 4. Remove the filter from the filter basket. Clean the accumulated debris from the filter basket and the filters. 5. After repeated use, it may be necessary to wash the filter basket and filter, Hand wash in lukewarm water. After washing, set aside and allow to air dry for 24 hours.
- Page 16 Cleaning the Motorized Powerhead & Blockages The brush roll may accumulate debris such as strings, hair and fibers. This type of debris can wrap around the brush and diminish its ability to clean effectively. To Remove Brush Roll for Manual Cleaning: 1.
-
Page 17: Troubleshooting
TROUBLESHOOTING 2. Carefully remove any debris or blockage from the inside of the powerhead. 3. Reattach the powerhead onto the vacuum body. Note: Do not damage pins; do not use scissors or other sharp objects to remove a blockage from the powerhead as these may damage the powerhead. Pins -17-... - Page 18 TROUBLESHOOTING Should you have any problem(s) with your vacuum cleaner, review the table below for solutions to minor performance issues. WARNING Disconnect electrical supply before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury. PROBLEM POSSIBLE CAUSE SOLUTION...
- Page 19 Dust cup is full. Empty dust cup. Filter needs cleaning. Follow filter cleaning instructions. Vacuum not Filter needs to be To purchase online at www.vacmaster.com or picking up or replaced. call (866) 384-8432. suction power is weak. Battery may be depleted. Charge the battery as instructed.
