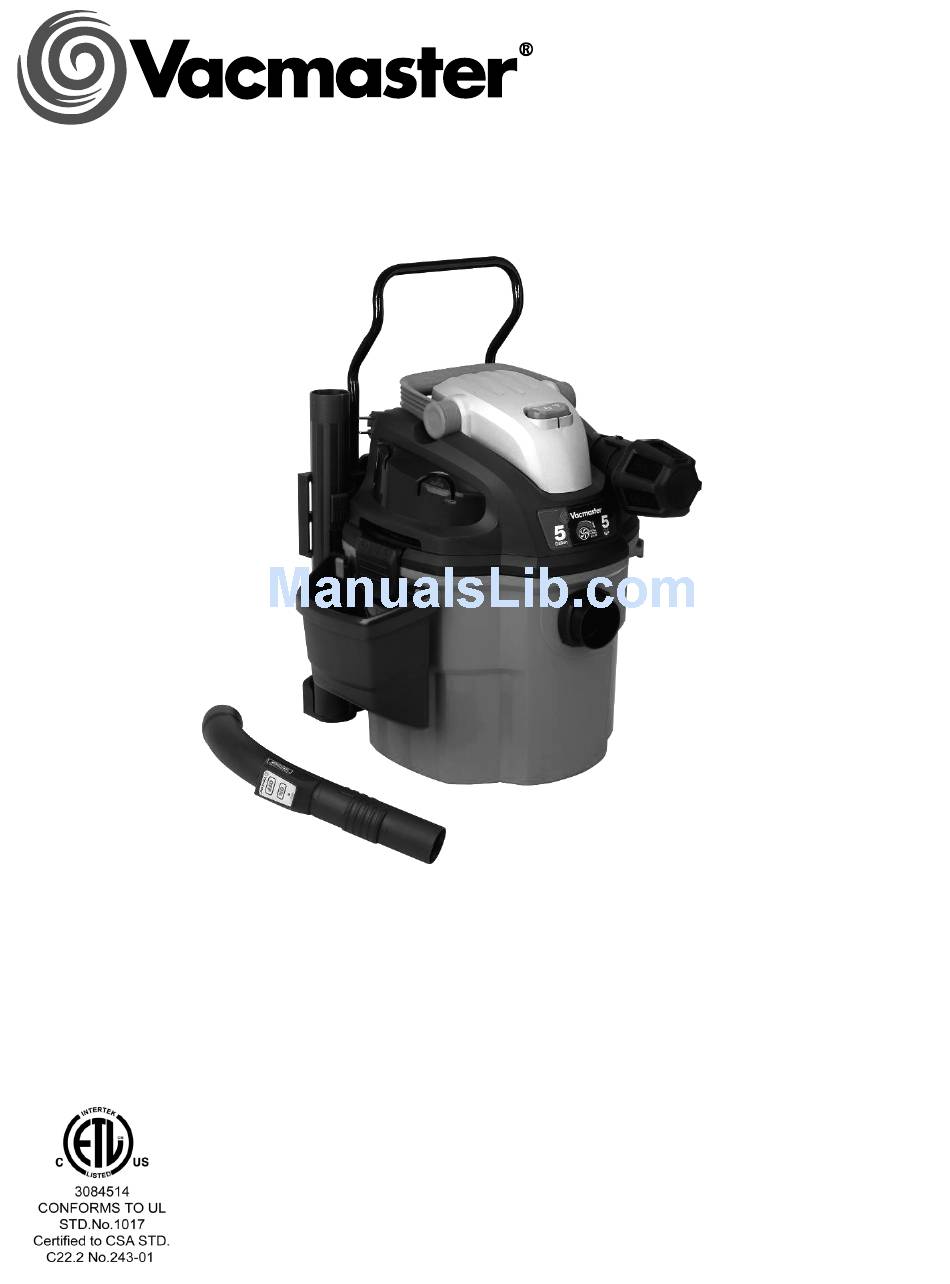

Operator's Manual
Wall Mountable Wet/Dry Vacuum
Model No.
FOR YOUR SAFETY
Read and understand this manual before use
Keep this manual for future reference
www.vacmaster.com
Cleva North America
44 Parkway Commons, Greer, SC 29650
VWM510
Wet/Dry Vacuums
VW01BZ.20.60.01

Advertisement

Table of Contents
loading

Related Manuals for Vacmaster VWM510

Summary of Contents for Vacmaster VWM510

  • Page 1 Wet/Dry Vacuums Operator’s Manual Wall Mountable Wet/Dry Vacuum VWM510 Model No. FOR YOUR SAFETY Read and understand this manual before use Keep this manual for future reference www.vacmaster.com Cleva North America 44 Parkway Commons, Greer, SC 29650 VW01BZ.20.60.01...

  • Page 2: Warranty

    CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS WARRANTY We take pride in producing a high quality, durable product. This Vacmaster® product carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase under normal household use.

  • Page 3: Safety Instructions And Warnings

    Safety is a combination of common sense, staying alert and knowing how your vacuum works. Use this Wet/Dry Vac only as described in this manual. To reduce the risk of personal injury or damage to your Wet/Dry Vac, use only Vacmaster® recommended accessories. For Household Use Only.

  • Page 4: Double Insulation Instructions

    DOUBLE INSULATION INSTRUCTIONS This Wet/Dry Vac is double-insulated, eliminating the need for a separate grounding system. Use only identical replacements parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacs before servicing. Use this Wet/Dry Vac as described in this manual. Observe the following warnings that appear on the motor housing of your Wet/Dry Vac.

  • Page 5: Unpacking And Checking Carton Contents

    UNPACKING AND CHECKING CARTON CONTENTS Remove entire contents of carton. Check each item against the carton contents list. Carton contents lists Description………………... Vac Assembly…………..Hose Holding Rod ……….. Mounting Rack ……………. 11-Foot Hose………………. 10-Foot Flex Hose………… Floor / Squeegee Nozzle…. Crevice Tool ……………….

  • Page 6: General Assembly Instructions

    GENERAL ASSEMBLY INSTRUCTIONS WARNING: DO NOT PLUG IN POWER CORD TO POWER OUTLET, MAKE SURE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VAC UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY 1. Verify that the power cord is disconnected from the outlet. (fig. 1) 2.
  • Page 7 • Do not hang from or sit on the mounting rack • Do not exceed 40 pounds of maximum weight limit. 6. Insert the hose holding rod into the two holes located on the top of the mounting rack. Make sure the bend of the rod is directed away from the wall.

  • Page 8: Dry-Vacuum Operation

    DRY-VACUUM OPERATION DRY VACUUMING WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO; LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL OR AEROSOL SPRAYS.

  • Page 9: Liquid Vacuum Operation

    LIQUID VACUUM OPERATION LIQUID VACUUMING WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO;...

  • Page 10: Blowing Operation

    REMEMBER! The foam filter must be removed after wet vacuuming, and a cartridge filter must be installed before dry vacuuming again. BLOWING OPERATION This Wet/Dry Vac has blowing capabilities. To use the blower feature follow the instructions listed. WARNING: ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (OR IN CANADA, CSAZ94.3) BEFORE USING BLOWER.

  • Page 11: Installing & Cleaning Cartridge Filter

    IMPORTANT! Clean or change the cartridge filter regularly for best performance. ALWAYS USE CARTRIDGE FILTER FOR DRY VACUUMING. If the machine is used with out the cartridge filter, the motor will burn out and the warranty will be voided. Always keep spare filters on-hand. NOTICE! The filters included are made of high quality materials designed to stop small dust particles.

  • Page 12: Resetting The Remote Control

    Installing Foam Sleeve Filter 1. Verify that the power cord is disconnected from the outlet. (fig. 1) 2. Remove power head and place in upside down position. Follow instructions to remove cloth filter. 3. Carefully slide foam sleeve filter down over the filter cage making sure the whole cage is covered. (fig.2 &...

  • Page 13: Troubleshooting

    4. Lift the foam cover to expose the battery and remove the old battery. (fig. 5) 5. Insert the new battery with the terminals in the direction shown and make sure to replace the foam cover. (fig. 6 & 7) 6.

  • Page 14: Exploded View And Parts List

    EXPLODED VIEW AND PARTS LIST...
