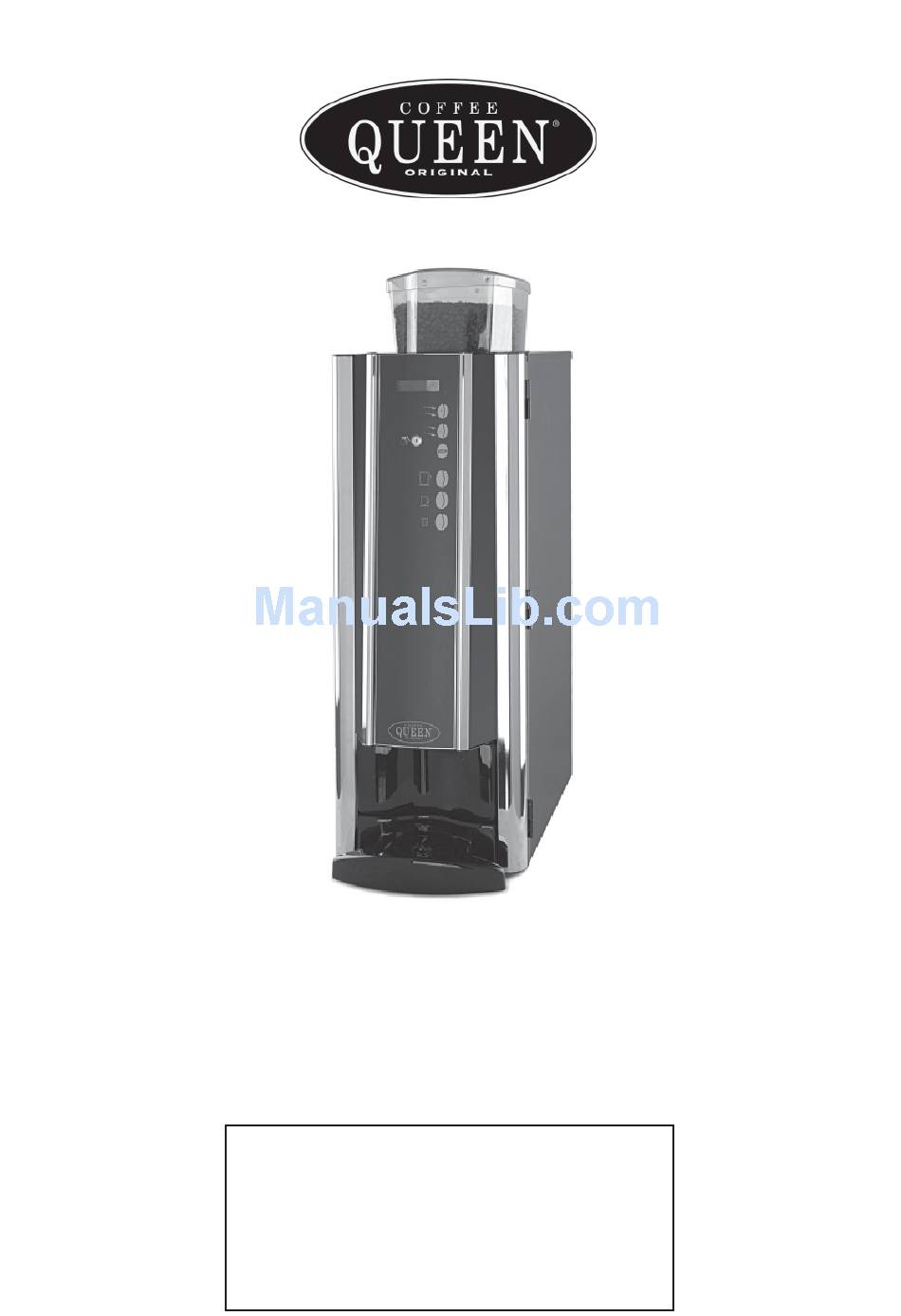

Service Manual
MOCCA BTB
Your retail dealer
S_EN
Rev. 091006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOCCA BTB and is the answer not in the manual?

Questions and answers

Related Manuals for Coffee Queen MOCCA BTB

Summary of Contents for Coffee Queen MOCCA BTB

  • Page 1 Service Manual MOCCA BTB Your retail dealer S_EN Rev. 091006...

  • Page 2: Table Of Contents

    1. Table (list) of contents MOCCA BTB Table of contents page. General Overview of the components, front. Overview of the components, mixer system. Installation and start Safety instructions for grinder Operation; Brewing of coffee in cup Hot water Brewing of jug...

  • Page 3: General

    2. General. MOCCA BTB We congratulate to your choice of a Mocca BTB. Please read this manual before you take the machine into operation for the first time. The manual contains important instructions for a safe and proper use of the machine.

  • Page 4: Overview Of The Components, Front

    3. Overview of components, front Mocca BTB Bean container Display Strength of drinks ++ / - - Key switch Large coffee Small coffee Hot water Door lock Outlet (warm drinks) Cup holder Drip tray insert Drip tray Options: Base cabinet...

  • Page 5: Overview Of The Components, Mixer System

    3. Overview of components, mixing system. MOCCA BTB Bean container Fuse ON/OFF holder switch Closing hatch Grinder house Door lock Brewing mechanism Outlet coffee Outlet hot water Waste box Detail; Ingredients; Width; Height; Amount/unit Canister; Coffee beans...

  • Page 6: Installation And Start

    4. Service. Installation and start MOCCA BTB Place the brewer on a flat level and waterproof surface. Connect the electrical plug to a separate grounded wall socket OBSERVE! 90º Make sure there is a space behind the machine for free flow of air.( minimum 10cm ).

  • Page 7: Safety Instructions For Grinder

    4. Service. Installation and start MOCCA BTB Fill bean container with coffee beans. Remove lid on bean container and fill bean container with coffee beans without additives (as tasted oils or sugar). Open closing hatch on bean container. When water in tank have the right temperature the message ”low temp”...

  • Page 8: Operation; Brewing Of Coffee In Cup

    5. Operation: Brewing of coffee in cup MOCCA BTB Place a cup in the centre of the cup holder. The strength has a standard setting, if you wish to increase or decrease it, do as follows if not continue to point 3.

  • Page 9: Brewing Of Jug

    5. Operation: Brewing of coffee in jug. MOCCA BTB Brewing of jug. Place a jug in the centre of drip tray by lifting up the cupholder. Turn on the key with jug symbole clockwise. 3 cups of brewing is standard setting.

  • Page 10: Cleaning Program

    6. Cleaning program MOCCA BTB Automatic cleaning of In/Outlet valves: The In/Outlet valves can easily be cleaned with the key switch in ”cup” (normal) position. Place a jug in the drip tray. Turn the key slowly ninety degrees and back again.

  • Page 11: Rotate Brew Mechanism Without Water Or Ingredients

    6. Cleaning program MOCCA BTB Rotate brew mechanism without water or ingredients: The brew mechanism can be rotatedwithout water and ingredients with the key switch in ”cup” (normal) position.To be used when brew mechanism has been dismounted forwashing and shall be remounted.

  • Page 12: Automatic Cleaning Of Brew Mechanism, Mixing Bowl

    6. Cleaning program MOCCA BTB Automatic cleaning of brew mechanism, mixing bowl: Shall been done every week. The brewmechanism can easily be cleaned with the key switch in ”cup” (normal) position. 1. Turn the key slowly ninety degress and back again.
  • Page 13 6. Cleaning program MOCCA BTB Dismantling and cleaning brew house: Rotera bryggmekanism utan vatten o ingredienser: Dismantle brew house: 3. Flush brew house! Reassemble brew house. NOTE! When reassemble brew house To remove detergent and coffee remnants. make sure that (B) wiper are between (A) arms.

  • Page 14: Cleaning And Maintenance

    7. Cleaning and maintenance. MOCCA BTB Cleaning when needed. Outside cleaning; use a soft rag and liquid cleaning agent to prevent scratches. Grinder: Visual Inspection every mounth! Approximately every mounth the grinder housing and spout should be inspected for coffee residues and obvious damages.

  • Page 15: Cleaning And Dismantling Of Coffee Filter

    Prolonged contact with cleaning agent may damage the screen assembly. Once this is done, the screen should then be thoroughly rinsed with dish soap and warm water to remove any leftover residue. Cleaning agent: (brew mechanism) Coffee Queen article no 1104161 Filter: (brew mechanism) Coffee Queen article no 47200213 Tool: (dismantling filter)

  • Page 16: Cup Counter And Easy Access

    8. Cup counter and Easy Access MOCCA BTB Cup counter: The machine has a cup counter which is available to see and reset with the key switch in ”cup” (normal) position. Push ”-” button for 6 seconds. After 4 seconds the signal will go faster..

  • Page 17: Safety Functions

    9. Safety functions. MOCCA BTB The machine is equipped with following safety functions Indication of door Door not closed ”Door open” The display shows; ”Door open” When machine is not in use: Valves are blocked. 10. Failure messages. Failure messages which can mostly be corrected without any help from service company The display shows;...

  • Page 18: Installation Of Coin Mechanism

    12. Installation of coin mechanism. Installation of coin mechanism for freshbrew machines CQ. IMPORTANT: Installation must been done of an authorized technician. 1. Assemble coin mec and connect to display-card, placed inside door. (see fig. 10). (10) ( Connect with the enclosed fig.

  • Page 19: Circuit Diagram

    13. Circuit diagram. MOCCA BTB...

  • Page 20: Maintenance And Safety Instructions For Grinder

    14. Maintenance instructions grinder. Mocca BTB Periodic maintenance. grinder EK21 − − − − − Each month: Clean silicon outlet, grinding house and grinding discs. − − − − − Monthly cleaning of grinder using GRINDZ cleaning tablets (item no. E1001001).
  • Page 21 14. Maintenance instructions grinder. Mocca BTB Every month. Approximately every week the grinder housing and spout should be inspected for coffee residues and obvious damages. In case of too much coffee residues around the spout, check if the silicone flapper inside the spout is in place.
  • Page 22 14. Maintenance instructions grinder. Mocca BTB Removing the rotating carrier. (continuation). 4.3 Clean the surfaces of the seats and the new discs. In case of coffee residues left between disc carrier and new disc, the discs will not run parallel and the grinding performance will deteriorate.
  • Page 23 14. Maintenance instructions grinder. Mocca BTB (continuation). Exchange of the silicone flapper in the spout. Fig. 4 Fig.5. 6.3 Carefully pull out the spout. (D).Fig.5. 6.4 Take out silicone flapper (E) which is placed in a groove inside the spout bore, put in the new silicone flapper.

  • Page 24: Spare Parts List

    15. Spare parts list. Mocca BTB Description; Article no; Detail no; Amount/ unit; Mocca BTB Electronic card 1604102 Displaycard 1604101 Spacer for displaycard 1203416 Key switch 1202551 1202553 Drip tray, extension 1105334 Drip tray insert 1105333 Drip tray 1105332 Inlet hose 3/4”X1/2” White...
  • Page 25 15. Spare parts list. Mocca BTB Description; Article no; Detail no; Amount/ unit; Mocca BTB O-ring 36,2X3 120650 O-ring 15, 6X1,78 120652 Outlet brewmech. straight 12014641 Outlet brewmechanism 120147 Grinder 230 VAC 1604752 Bean container with lock 1105526 Lid, bean container with lock...
  • Page 26 15. Spare parts lists. Grinder Mocca BTB Description; Article no; Detail no; Amount/ unit; Mocca BTB Motor C0212.06 837932 Inlet housing 838916 Slotted pan head screw M4x12 838753 Adjustment shaft 837992 Adjustment pinion 837991 Pressure spring 838709 Allen set screw DIN 915 - M5x10...

  • Page 27: Spare Parts List

    15. Spare parts lists. Mocca BTB Brew mechanism Description; Article no; Detail no; Amount/ unit; Mocca BTB Deflector, Cylinder 4720008 Pin, Crank Arm 4720010 O-ring Piston 4720012 Rubber Ring, Piston 4720013 Teflon Seal 4720014 Plate, Top 4720015 Screw, 8 x 1/2, Truss, AB, TAPP...

  • Page 28: Exploded View

    16. Exploded View. Machine MOCCA BTB...
  • Page 29 16. Exploded View. Tank MOCCA BTB Silicone hose150501 sales by metre Silicone hose150501 sales by metre...
  • Page 30 16. Exploded View. Brew mechanism MOCCA BTB 16. Exploded View. GRINDER MOCCA BTB...
  • Page 31 16. Exploded View. GRINDER MOCCA BTB...
  • Page 32 16. Exploded View. Brew mechanism 1...
  • Page 33 16. Exploded View. Brew mechanism 2...
  • Page 34 Mocca BTB FOR SERVICE please contact Your retail dealer ................................................CREM International AB Box 960, 671 29 ARVIKA, Sweden +46 (0)570-477 00, Fax: +46 (0)570-47719 E-mail: info.se@creminternational.com www.creminternational.com Art. nr/Art. no. 1740031...
