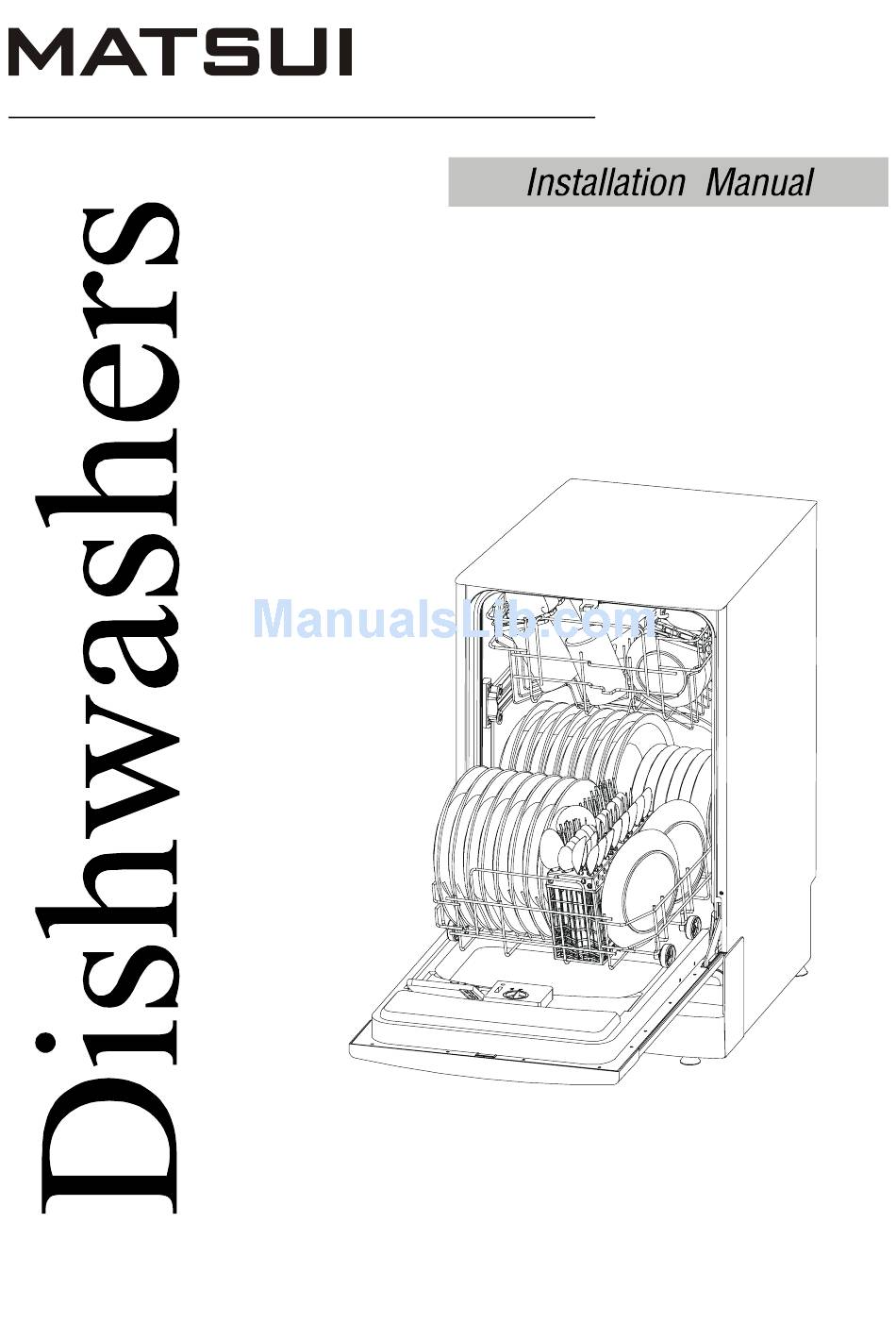

- Page 1 MS3WN/MF3WN...
- Page 2 Notes ● Carefully read this manual before installation Reading this manual will help to understand the connections of inlet, drain hoses and power cord, and to find a optimal position for the dishwasher. The installation of the pipes Electrical Shock Hazard and electrical equipment Disconnect electrical power before carrying out any re-wiring.
- Page 3 【Figure1A,1B】 Less than 5mm between the top of dishwasher and Cabinet dimensions cabinet and the outer door aligned to cabinet. 90 ° 90 ° 90 ° 90 ° 820mm 820mm 580mm 580mm Electrical, drain and Electrical, drain and water supply line water supply line entrances entrances...
- Page 4 Make sure your plumbing is suitable to install First connect water inlet hose to your dishwasher Ensure black rubber seal is your new dishwasher. If in doubt contact a in place. qualified plumber. Then connect the straight end to your water mains supply Ensure black rubber seal is in place.
- Page 5 Dishwasher installation steps ● Connect the inlet, and drain hoses, and power cord . Put the dishwasher into the slide rail. Pushing the dishwasher into the cabinet. Level the dishwasher and raise to work-top height by adjusting the four leveling legs individually. Fixing the dishwasher into the cabinet by two countersunk head screw.
-
Page 6: Installation The Plinth
Installation the plinth ● 1 Unscrew the tw screws and remove the plinth from the dishwasher. [Figure a] plinth [Figure a] screw 2 Unscrew the two screws and adjust the distance of left and right plinth tab to your need. The adjustable range is from 39mm to 134mm. - Page 7 The dishwasher must be level for the racks to operate correctly and to give maximum wash performance. Place a spirit level on the door and the lower rack rail as shown in diagram 1 to check that the dishwasher is level. It is easy to level the dishwasher by adjusting the four leveling legs individually from the front of the dishwasher.
- Page 8 The manufacturer, following a policy of constant development and up-dating of the product, may make modifications without giving prior notice.
