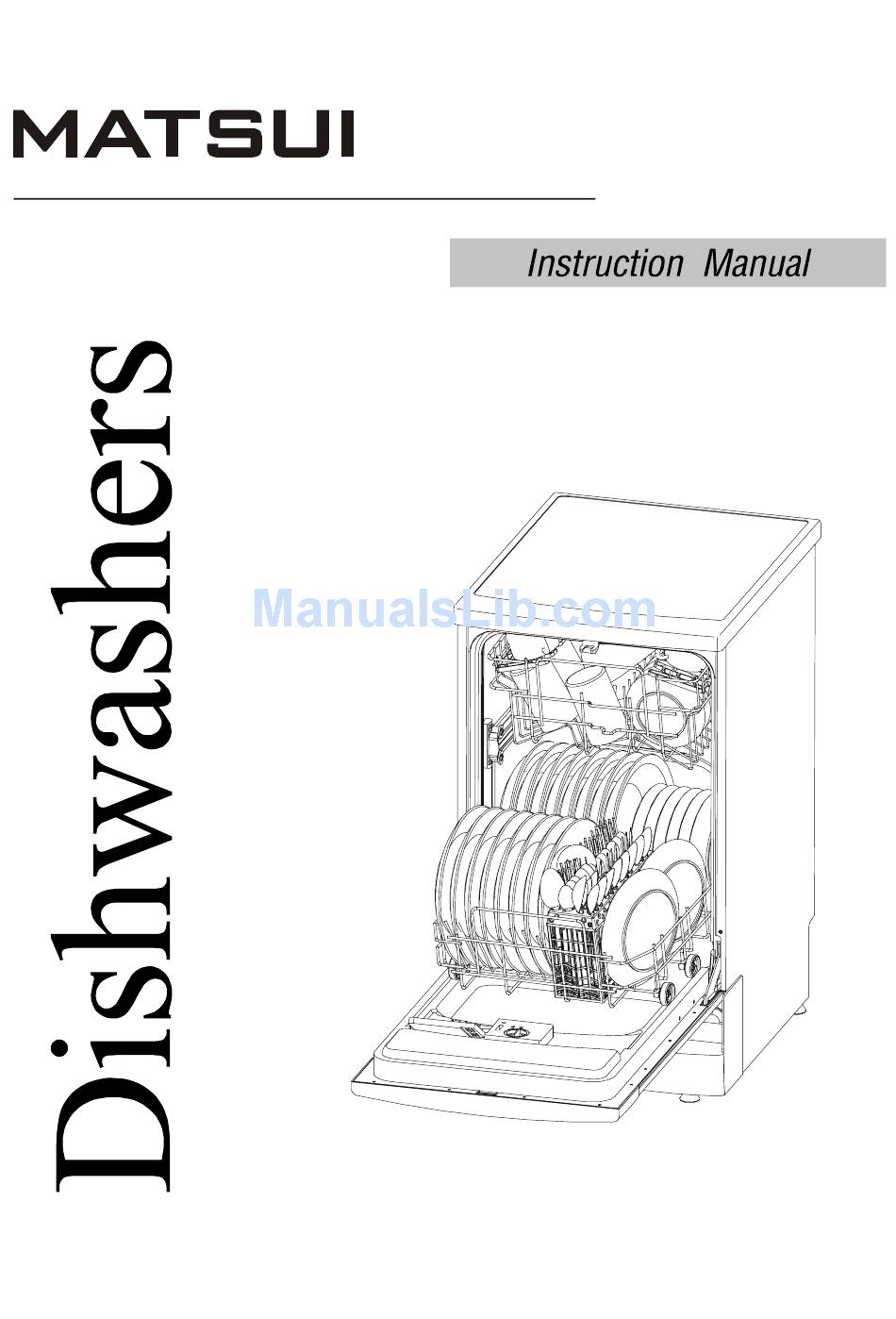

- Page 1 MS2W/MS2S...
- Page 2 ....1 This manual contains sections of Safety Instructions,Operating Instructions, Installation Instructions and Troubleshooting Tips etc. Carefully reading it before using the dishwasher will help you to use and maintain the dishwasher properly.
- Page 3 This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.
- Page 4 Remove all packaging before positioning the machine. See the following diagram.Ensure there is a clearance each side of the machine to allow 450mm slight side ways movement for servicing Work top of your dishwasher is removable if required. Height without the work top is 820 mm.
- Page 5 Make sure your plumbing is suitable to install First connect water inlet hose to your dishwasher Ensure black rubber seal is your new dishwasher. If in doubt contact a in place. qualified plumber. Then connect the straight end to your water mains supply Ensure black rubber seal is in place.
- Page 6 To get the best performance from your dishwasher,read all operating instructions before using it for the first time. " " Rapid Button: Only used with cycle " " Plus Button: Only used with cycle Door Handle: Pull it to open the door. Washing Program Selector: Turn the knob clockwise to select wash cycles.
- Page 7 For normally soiled loads, -rinse such as pots , plates,glasses Wash (52 ℃) 5/22 gr. and lightly soiled pans. Rinse (70 ℃) standard daily cycle. Drying Normal Wash (IEC-EN 50242) Pre-rinse For the heaviest soiled loads, -rinse( 2℃ such as pots,pans,casserole Wash (60 ℃) Intensive dishes and dishes that have...
- Page 8 There are two ways to reduce the water hardness: one way is using the water softener, the other is using detergent. The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.
- Page 9 YOU MAY NOT NEED TO ADD TOO MUCH DETERGENT BECAUSE YOUR DISHWASHER HAS A SPECIALLY-DESIGNED WATER SOFTENER. The dispenser must be refilled before the start of each wash cycle following the instructions provided in the" Wash Cycle Table".Your dishwashers use less detergent and rinse aid than conventional dishwashers.
- Page 10 As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below. Full 3 / 4 full 1 / 2 full 1 / 4 full - Should refill to eliminate spotting Empty The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cup and saucers, as well as plates, small bowls and shallow pans(as long as they are not too dirty).
- Page 11 Silverware should be placed in the silverware basket with handles at the bottom: If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, Especially long utensils should be placed in the horizontal position at the front of the upper rack.
- Page 12 For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub. There are three components of the filtering system: the main filter, the coarse filter, and the fine filter. Main filter Food and soil particles trapped by this filter are pulverized by a special jet on the lower spray arm and washed down the drain.
- Page 13 To clean the edge around the door, you should use only a soft warm, damp rag. To prevent penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the finish.
- Page 14 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is turned on closed securely.
- Page 15 Combination of soft Use less detergent if you have soft water and select a water and too much shortest cycle to wash the glassware and to get them clean. detergent Tea or coffee stains using a solution of 1/2 cup of bleach and 3 cups warm water to remove the stains by hand.
