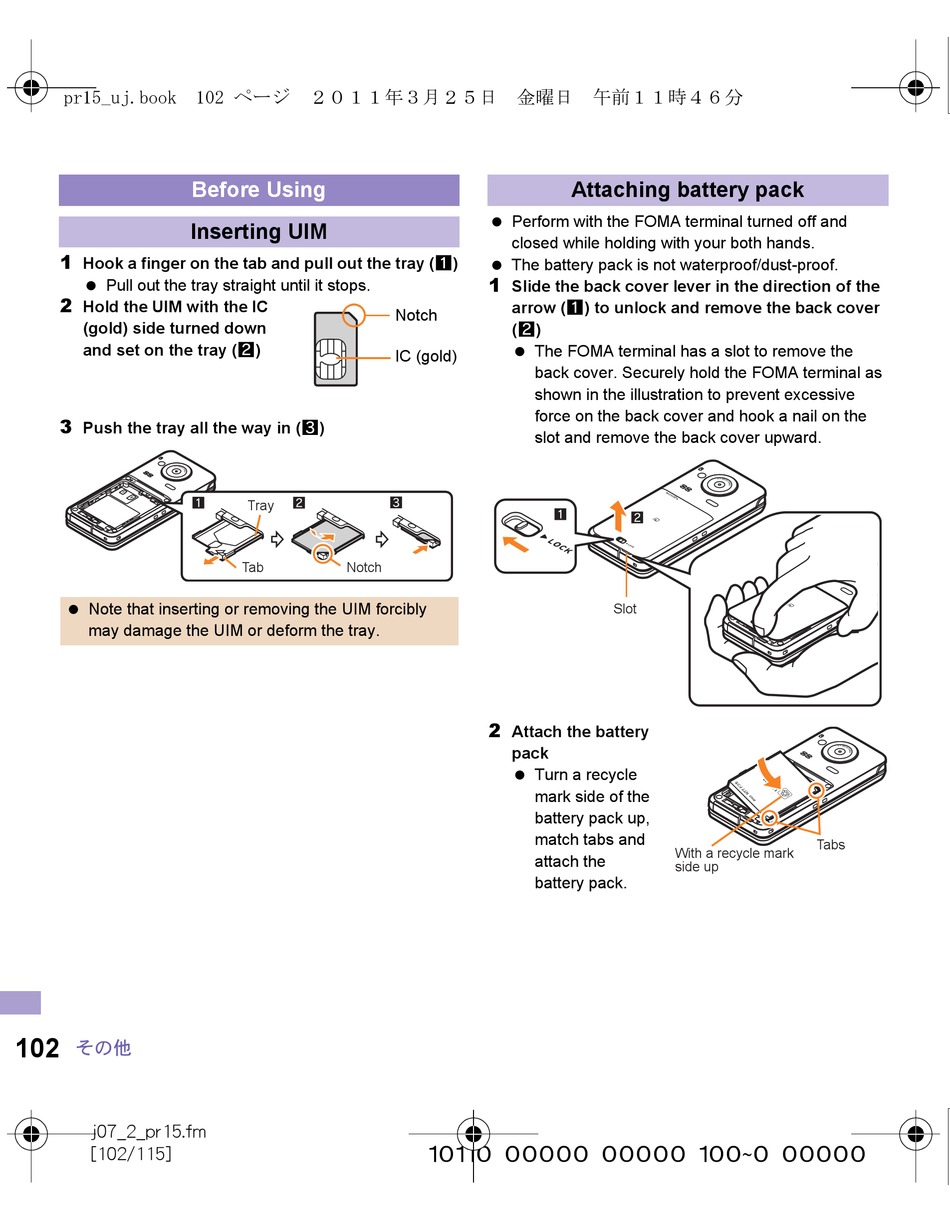

Before Using
Inserting UIM
1
Hook a finger on the tab and pull out the tray (1)
Pull out the tray straight until it stops.
2
Hold the UIM with the IC
(gold) side turned down
and set on the tray (2)
3
Push the tray all the way in (3)
Note that inserting or removing the UIM forcibly
may damage the UIM or deform the tray.
102
その他
Notch
IC (gold)
Tray
Tab
Notch
Attaching battery pack
Perform with the FOMA terminal turned off and
closed while holding with your both hands.
The battery pack is not waterproof/dust-proof.
1
Slide the back cover lever in the direction of the
arrow (1) to unlock and remove the back cover
(2)
The FOMA terminal has a slot to remove the
back cover. Securely hold the FOMA terminal as
shown in the illustration to prevent excessive
force on the back cover and hook a nail on the
slot and remove the back cover upward.
Slot
2
Attach the battery
pack
Turn a recycle
mark side of the
battery pack up,
match tabs and
attach the
battery pack.
Tabs
With a recycle mark
side up
