3

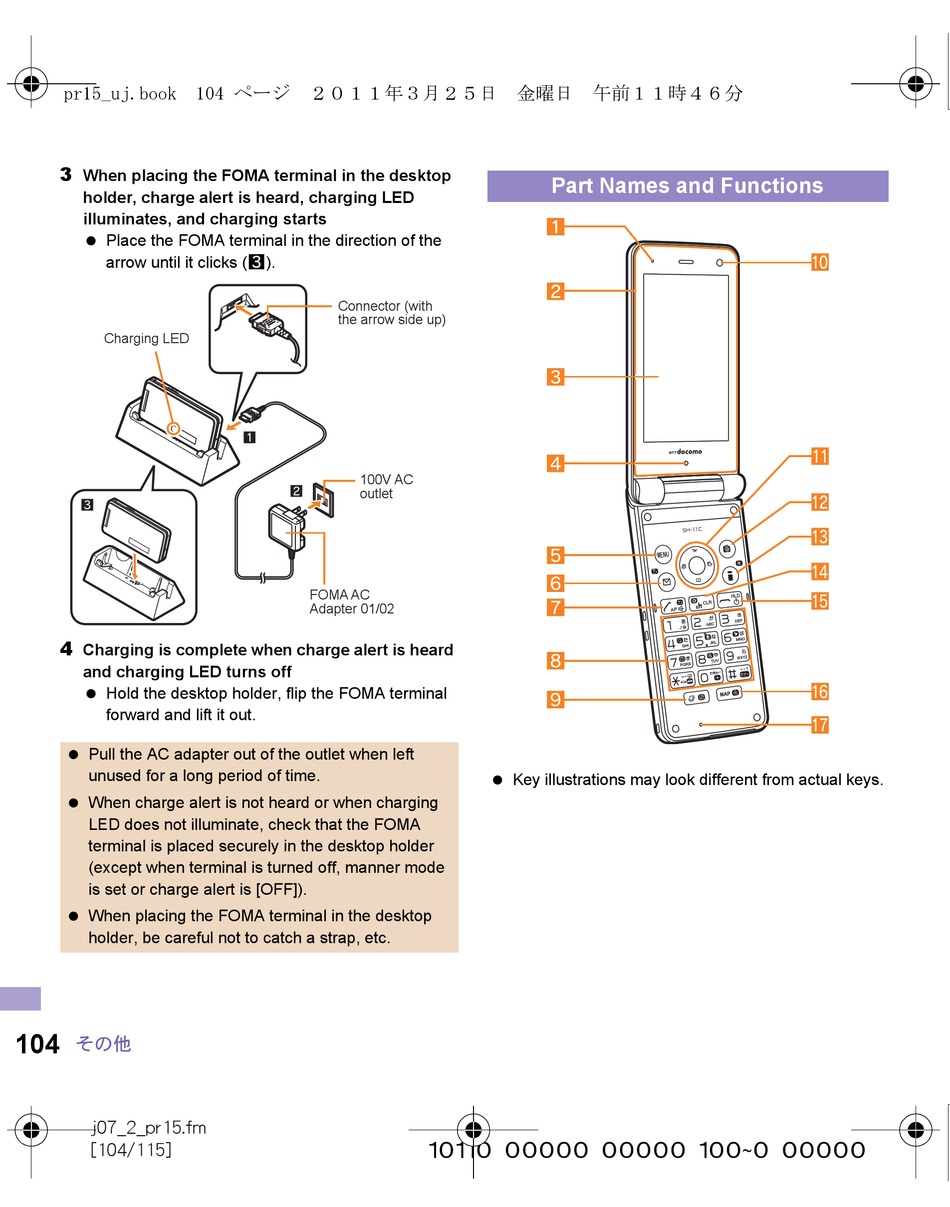

When placing the FOMA terminal in the desktop
holder, charge alert is heard, charging LED
illuminates, and charging starts
Place the FOMA terminal in the direction of the
arrow until it clicks (3).
Charging LED
4
Charging is complete when charge alert is heard
and charging LED turns off
Hold the desktop holder, flip the FOMA terminal
forward and lift it out.
Pull the AC adapter out of the outlet when left
unused for a long period of time.
When charge alert is not heard or when charging
LED does not illuminate, check that the FOMA
terminal is placed securely in the desktop holder
(except when terminal is turned off, manner mode
is set or charge alert is [OFF]).
When placing the FOMA terminal in the desktop
holder, be careful not to catch a strap, etc.
104
その他
Connector (with
the arrow side up)
100V AC
outlet
FOMA AC
Adapter 01/02

Part Names and Functions

Key illustrations may look different from actual keys.
