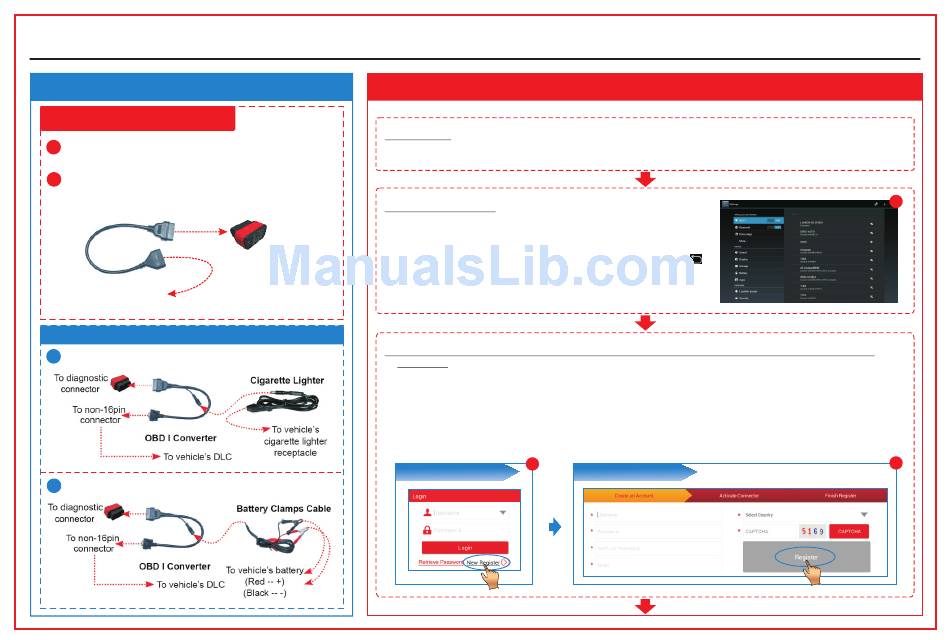

Launch X-431 PADII Quick Start Manual page 3

X-431 PADII
2. Connections
OBD II Vehicle Connection
A Directly plug the diagnostic connector into vehicle's
DLC
B Using OBD II extension cable
OBD II Extension
Cable
To Vehicle's DLC
Non-OBD II Vehicle Connection
A Via Cigarette Lighter
B Via Battery Clamps Cable
Quick Start Guide (EN)
3. Power on, Wi-Fi connection, Register and Download software
1. Power on
2. Wi-Fi connection
Tap [Settings] on the desktop and then [Wi-Fi] to configure Wi-Fi
To diagnostic
setting. Refer to Figure A.
connector
Select the desired Wi-Fi connection from the list. (Password may be
required for secured networks). When "Connected" appears, tap
to return to the desktop.
3. Register (1. Tap "Login" --> 2. Register an Account --> 3. Activate Connector --> 4. Finish
Register)
1. Launch the
2. Tap on "New Register" in Figure B, input the information (items with * must be filled) and then tap on
3. Input the Product S/N and Activation Code (can be obtained from the password envelope, see Figure
Press the [POWER] button, the system starts initializing and then enters the desktop.
X-431 PADII application on the desktop to enter. Tap on "LOGIN" on the right upper corner
of the screen.
"Register". Refer to Figure C.
F), and then tap on "Activate". Refer to Figure D.
4. Tap on "Go To Update Center" to enter diagnostic software download screen. Refer to Figure E.
B
Login Interface Create an Account
LAUNCH
A
C
(To be continued...)
