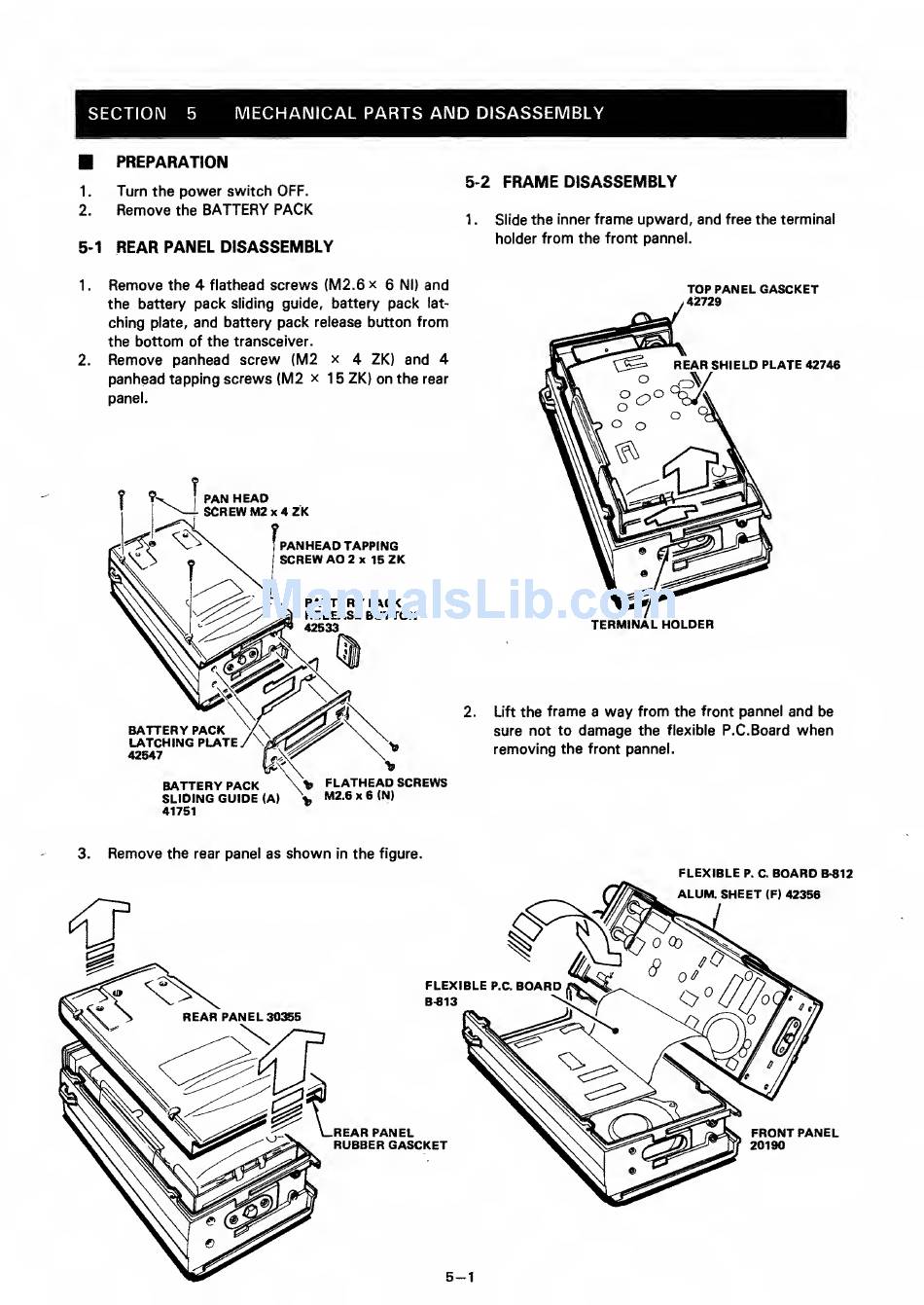

SECTION
5
MECHANICAL PARTS AND DISASSEMBLY
PREPARATION
1
.
Turn the
power switch OFF.
2.
Remove
the
BATTERY PACK
5-1
REAR PANEL DISASSEMBLY
1.
Remove
the
4
flathead
screws
}M2.6x
6
Nl)
and
the battery
pack
sliding
guide, battery
pack
lat-
ching
plate,
and
battery
pack
release
button from
the
bottom
of
the
transceiver.
2.
Remove panhead screw (M2
x
4
ZK)
and
4
panhead
tapping
screws
(M2 x
15 ZK) on the
rear
panel.
41751
5-2
FRAME
DISASSEMBLY
1
.
Slide
the
inner
frame upward, and
free
the terminal
holder
from
the front pannel.
TOP PAN
E L
GASCKET
TERMINAL HOLDER
2.
Lift
the
frame
a
way
from the
front
pannel and be
sure not to
damage
the
flexible
P.C.
Board
when
removing the front pannel.
3.
Remove
the
rear
panel as
shown
in
the
figure.
FLEXIBLE
P. C.
BOARD
B-812
