Solder Side Disassembly - Icom IC-04A Service Manual

430/440mhz fm transceiver
Hide thumbs Also See for IC-04A:
Table of Contents

Advertisement

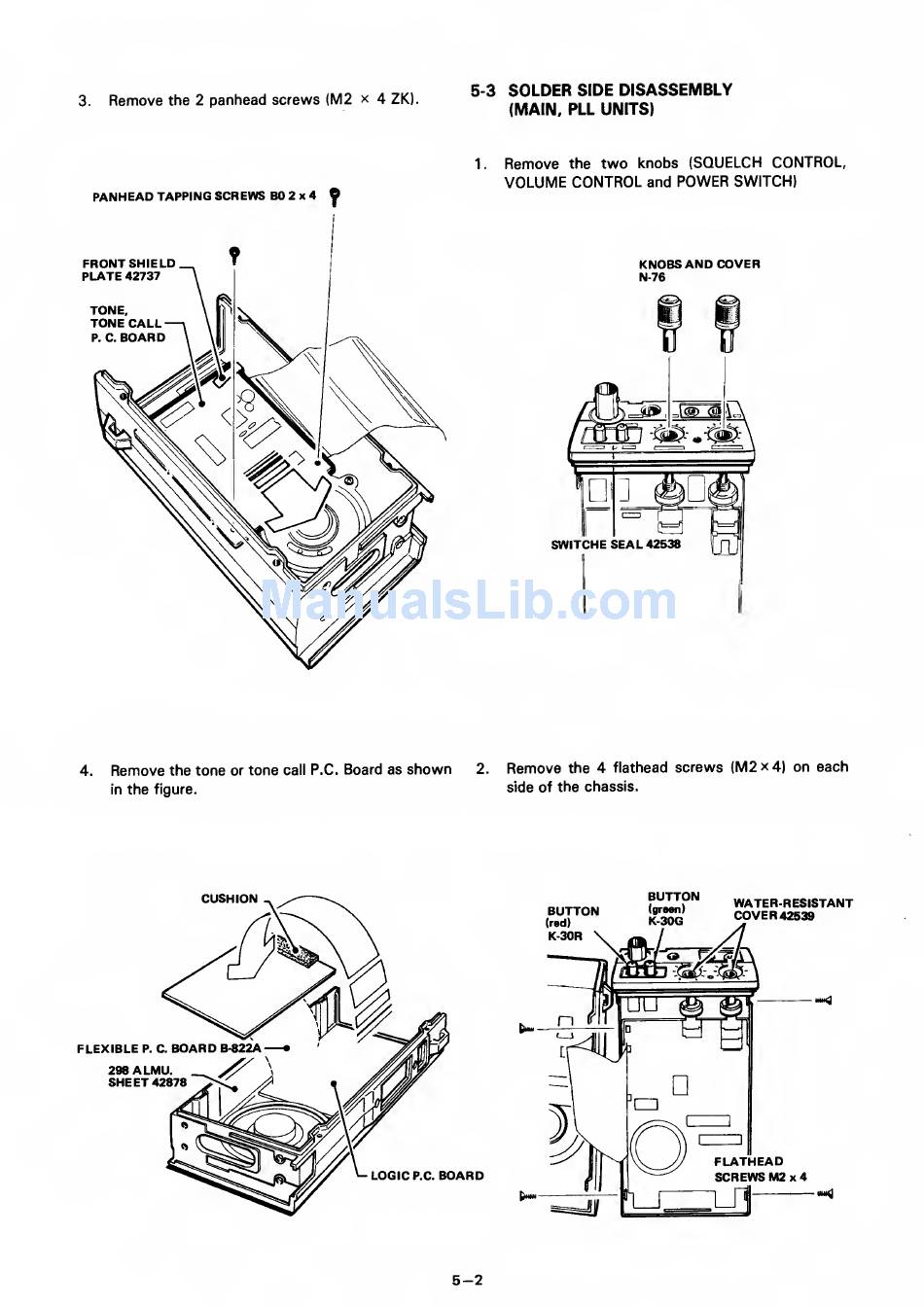

3.
Remove
the
2
panhead screws
(M2
x
4
ZK).
PANHEAD
TAPPING
SCREWS
BO
2 x
4
^
4.
Remove
the tone
or
tone
call
P.C.
Board as
shown
in
the
figure.
5-3
SOLDER
SIDE
DISASSEMBLY
(MAIN, PLL UNITS)
1.
Remove
the
two
knobs
(SQUELCH CONTROL,
VOLUME CONTROL
and
POWER
SWITCH)
KNOBS
AND
COVER
N-76
2.
Remove
the
4
flathead
screws
(M2x4)
on each
side of
the
chassis.
5-2
