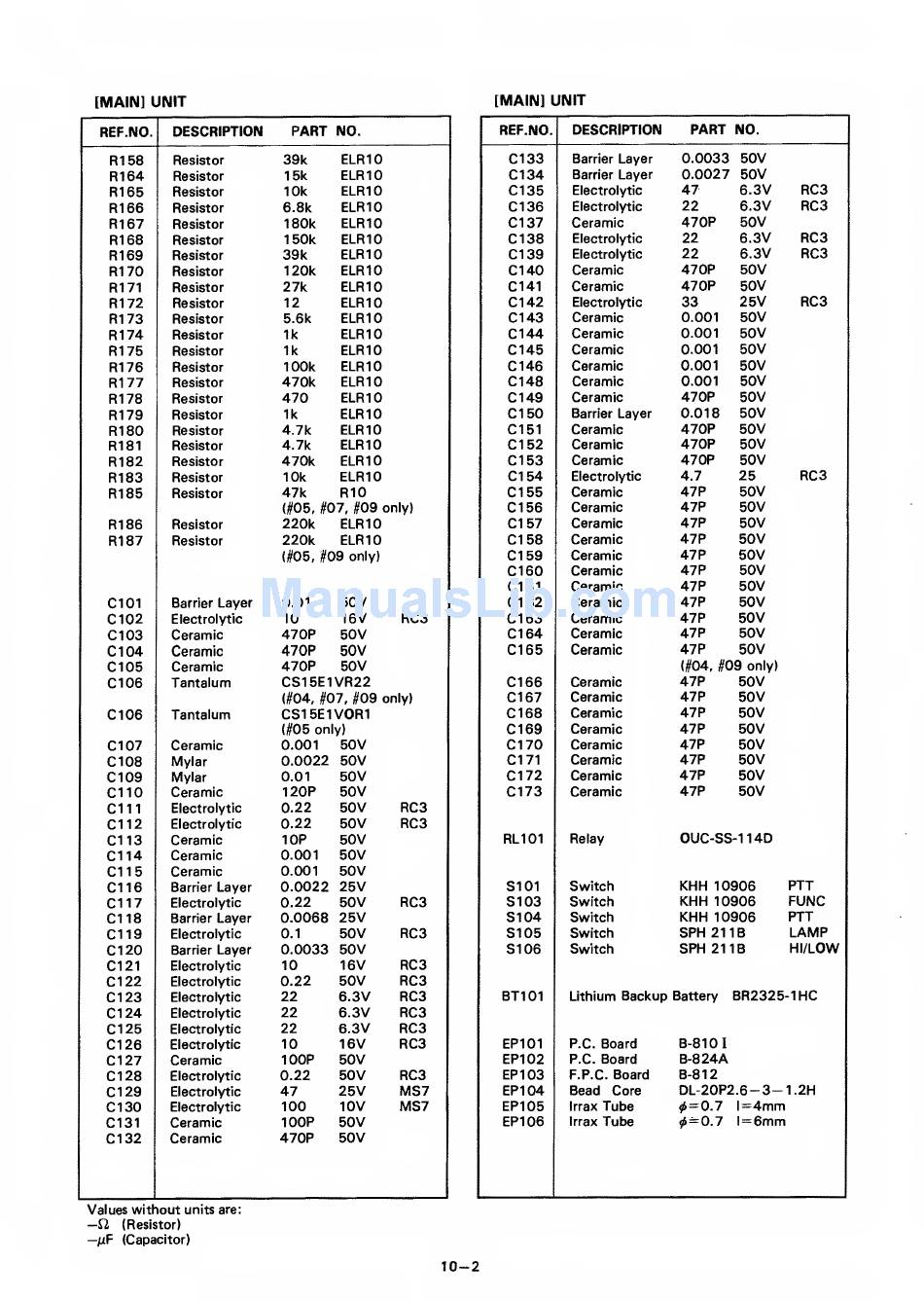

Icom IC-04A Service Manual page 45

[MAIN]
UNIT
REF.NO.
DESCRIPTION
PART
NO.
R158
Resistor
39k ELR10
R164
Resistor
15k
ELR10
R165
Resistor
10k
ELR10
R166
Resistor
6.8k
ELR10
R167
Resistor
180k
ELR10
R168
Resistor
150k
ELR10
R169
Resistor
39k
ELR10
R170
Resistor
120k ELR10
R171
Resistor
27k
ELR10
R172
Resistor
12 ELR10
R173
Resistor
5.6k
ELR10
R174
Resistor
Ik
ELR10
R175
Resistor
Ik
ELR10
R176
Resistor
100k
ELR10
R177
Resistor
470k ELR10
R178
Resistor
470 ELR10
R179
Resistor
Ik
ELR10
R180
Resistor
4.7k
ELR10
R181
Resistor
4.7k
ELR10
R182
Resistor
470k ELR10
R183
Resistor
10k
ELR10
R185
Resistor
47k
RIO
(#05, #07,
#09
only)
R186
Resistor
220k ELR10
R187
Resistor
220k
ELR10
(#05,
#09
only)
C101
Barrier
Layer 0.01
50V
C102
Electrolytic
10
16V RC3
Cl
03
Ceramic
470P 50V
Cl
04
Ceramic
470P 50V
C105
Ceramic
470P 50V
C106 Tantalum
CS15E1VR22
(#04, #07,
#09
only)
C106
Tantalum
CS15E1VOR1
(#05
only)
C107 Ceramic 0.001
50V
C108
Mylar
0.0022
50V
Cl
09
Mylar 0.01
50V
Clio
Ceramic
120P
50V
cm
Electrolytic
0.22
50V RC3
C112
Electrolytic
0.22
50V RC3
C113
Ceramic
10P
50V
C114
Ceramic
0.001
50V
C115
Ceramic
0.001
50V
C116
Barrier
Layer
0.0022
25V
C117
Electrolytic
0.22
50V RC3
C118
Barrier
Layer
0.0068
25V
C119
Electrolytic
0.1
50V RC3
Cl
20
Barrier
Layer
0.0033
50V
C121
Electrolytic
10
16V RC3
Cl 22
Electrolytic
0.22
50V RC3
Cl 23
Electrolytic
22 6.3V
RC3
Cl
24
Electrolytic
22
6.3V
RC3
Cl
25
Electrolytic
22 6.3V RC3
Cl 26
Electrolytic
10 16V RC3
Cl
27
Ceramic
loop 50V
C128
Electrolytic
0.22
50V RC3
C129
Electrolytic
47
25V
MS7
Cl
30
Electrolytic
100 10V
MS7
C131 Ceramic
100P 50V
Cl 32
Ceramic
470P
50V
Values without
units
are:
—
fZ (Resistor)
—
/iF
(Capacitor)
[MAIN]
UNIT
REF.NO.
DESCRIPTION
PART Z
P
Cl 33
Barrier
Layer
0.0033
BOV
Cl 34
Barrier
Layer
0.0027
BOV
Cl 35
Electrolytic
47 6.3V
RC3
Cl 36
Electrolytic
22 6.3V
RC3
C137
Ceramic
470P
BOV
Cl 38
Electrolytic
22 6.3V
RC3
C139
Electrolytic
22 6.3V
RC3
Cl
40
Ceramic
470P 50V
C141 Ceramic
470P BOV
C142
Electrolytic
33
25V RC3
C143
Ceramic
0.001
BOV
C144
Ceramic 0.001
BOV
C145 Ceramic 0.001
50V
Cl
46 Ceramic 0.001
BOV
C148
Ceramic 0.001
BOV
Cl
49 Ceramic
470P BOV
Cl 50
Barrier
Layer
0.018
BOV
C151 Ceramic
470P BOV
Cl 52 Ceramic
470P BOV
Cl 53 Ceramic
470P BOV
Cl 54
Electrolytic
4.7
25
RC3
Cl 55 Ceramic
47P BOV
Cl 56
Ceramic
47P BOV
Cl 57 Ceramic
47P BOV
Cl 58 Ceramic
47P
50V
Cl 59 Ceramic
47P BOV
C160
Ceramic
47P BOV
C161
Ceramic
47P BOV
Cl 62 Ceramic
47P
BOV
Cl 63
Ceramic
47P BOV
Cl
64
Ceramic
47P
BOV
C165
Ceramic
47P BOV
(#04,
#09
only)
Cl
66
Ceramic
47P BOV
C167
Ceramic
47P
BOV
Cl 68 Ceramic
47P BOV
C169
Ceramic
47P
BOV
Cl
70
Ceramic
47P
BOV
C171 Ceramic
47P
BOV
Cl 72
Ceramic
47P BOV
C173
Ceramic
47P
BOV
RL101
Relay
OUC-SS-114D
S101 Switch
KHH
10906
PTT
SI
03
Switch
KHH
10906
FUNC
S104
Switch
KHH
10906
PTT
S105
Switch
SPH
21 IB
LAMP
S106
Switch
SPH
21
IB
HI/LOW
BT101
Lithium
Backup
Battery
BR2325-1HC
EP101
P.C.
Board
B-810I
EP102
P.C.
Board
B-824A
EP103
F.P.C.
Board
B-812
EP104
Bead Core
DL-20P2.6-3-
1.2H
EP105
Irrax
Tube
(J=0.7
l=4mm
EP106
Irrax
Tube
#=0.7
l
=
6mm
