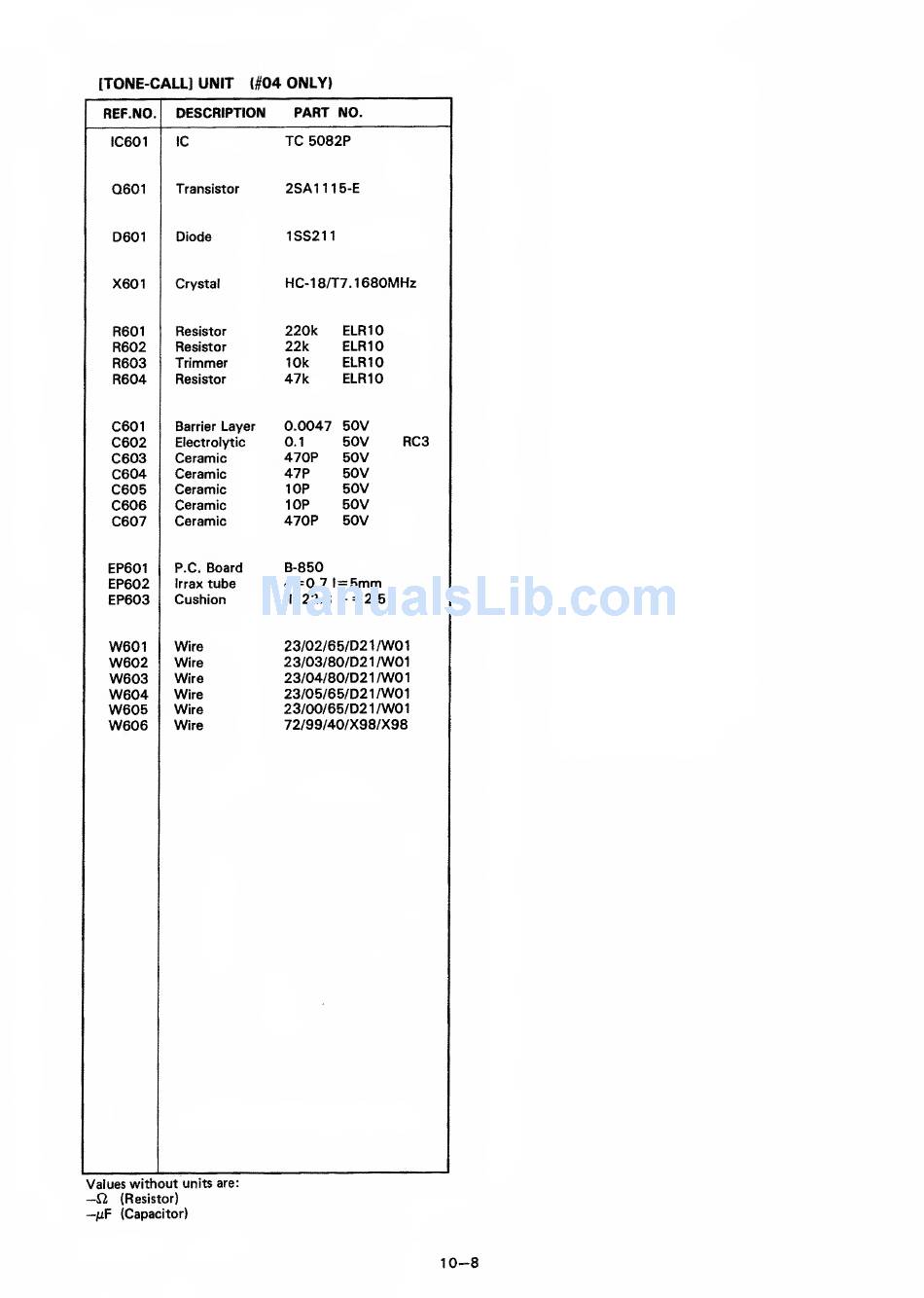

Icom IC-04A Service Manual page 51

[TONE-CALL] UNIT
[#04
ONLY)
REF.NO.
DESCRIPTION
PART NO.
IC601 1C
TC 5082P
Q601
Transistor
2SA1
1 1
5-E
D601
Diode
1SS211
X601
Crystal
HC-18/T7.
1680MHz
R601
Resistor
220k ELR10
R602
Resistor
22k ELR10
R603 Trimmer 10k
ELR10
R604
Resistor
47k ELR10
C601
Barrier
Layer
0.0047
50V
C602
Electrolytic
0.1
50V RC3
C603
Ceramic
470P 50V
C604 Ceramic
47P
50V
C605
Ceramic
10P 50
V
C606
Ceramic
10P
50
V
C607
Ceramic
470P 50V
EP601
P.C.
Board
B-850
EP602
Irrax
tube
^=0.7
l=5mm
EP603
Cushion
(1)
22.8
+=2.5
W601
Wire
23/02/65/D21/W01
W602
Wire
23/03/80/D21/W01
W603
Wire
23/04/80/D21/W01
W604
Wire
23/05/65/D21/W01
W605
Wire
23/00/65/D21/W01
W606
Wire
72/99/40/X98/X98
Values
without units are:
—
O
(Resistor)
—[xf (Capacitor)
10
