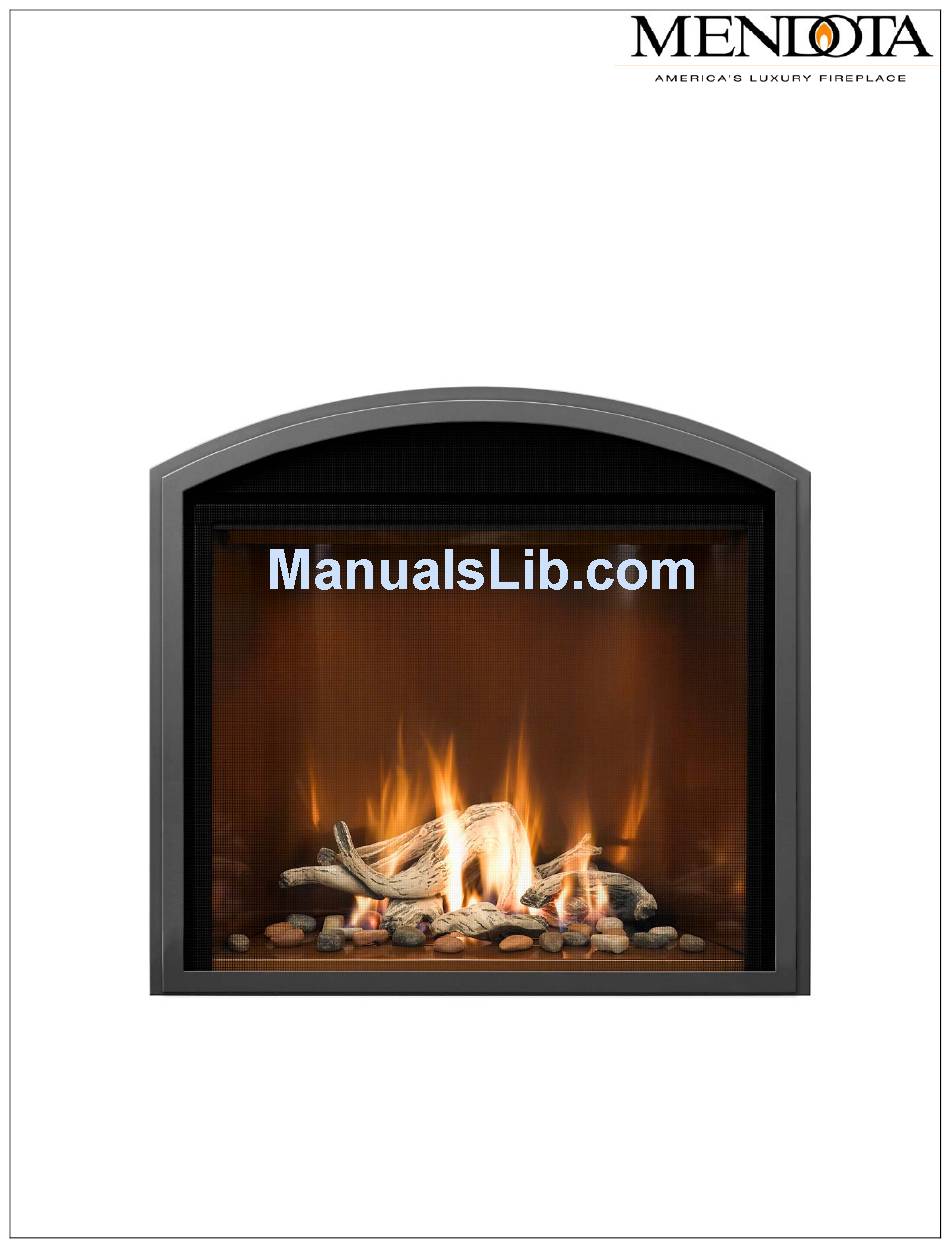

- Page 1 FV 46 GRACE KITS: RECTANGLE or ARCH VERSION WIDE or SLIM INSTALLATION INSTRUCTIONS...
- Page 2 FV46 GRACE KITS: RECTANGLE or ARCH WIDE or SLIM, INSTALLATION INSTRUCTIONS 1.25 1.25 1.25 1.25 SLIM RECTANGLE SLIM ARCH GRACE GRACE 2.00 2.00 2.00 2.00 WIDE RECTANGLE WIDE ARCH GRACE GRACE 2.00 1.25 2.00 1.25 2.00 2.00 1.25 1.25 1.25 1.25 SLIM &...
-
Page 3: Table Of Contents
Spray a glass cleaner solution on a dry soft CAUTION cloth and wipe the Grace to remove any Mendota recommends that clean cloth dirt and finger prints from the surface. DO gloves be worn when assembling or NOT use any abrasive cleaner or a cleaner mounting any decorative front to prevent that contains ammonia as an ingredient. -
Page 4: Fv41 Grace Kit- Rectangle Slim
If damage is evident, contact your Mendota Dealer. Identify the parts included with the GRACE SLIM RECTANGLE KIT. If any parts are missing, contact your Mendota Dealer before proceeding with this installation and obtain the missing parts. -
Page 5: Fv41 Grace Kit- Rectangle Wide
TEKS, HEX #8 X ½” BLACK ZINC Unwrap the Grace Wide Rectangle Kit carefully and inspect for any shipping damage. If damage is evident, contact your Mendota Dealer. Identify the parts included with the GRACE WIDE RECTANGLE KIT. If any parts are missing, contact your Mendota Dealer before proceeding with this installation and obtain the missing parts. -
Page 6: Fv41 Grace Kit- Arch Slim
If damage is evident, contact your Mendota Dealer. Identify the parts included with the GRACE SLIM ARCH KIT. If any parts are missing, contact your Mendota Dealer before proceeding with this installation and obtain the missing parts. -
Page 7: Fv41 Grace Kit- Arch Wide
Unwrap the Grace Arch Wide Kit carefully and inspect for any shipping damage. If damage is evident, contact your Mendota Dealer. Identify the parts included with the GRACE KIT. If any parts are missing, contact your Mendota Dealer before proceeding with this installation and obtain the missing parts. -
Page 8: Installing The Grace On The Fireplace
FV46 GRACE KITS: RECTANGLE or ARCH WIDE or SLIM, INSTALLATION INSTRUCTIONS INSTALLING THE GRACE ON THE FIREPLACE The Grace Kit for the FV46 quickly hangs directly on Spacers installed to the Fireplace body. The Grace hangs using the spacers and screws, which are provided. This design allows for easy removal and replacement for cleaning and maintenance purposes. -
Page 9: Installing Grace Finishing Guides
FV46 GRACE KITS: RECTANGLE or ARCH WIDE or SLIM, INSTALLATION INSTRUCTIONS INSTALLING GRACE FINISHING GUIDES Grace Slim Rectangle Finishing Guides TOP FINISHING GUIDE 40 13 34 9 16 LEFT FINISHING GUIDE RIGHT FINISHING GUIDE 34 9 16 40 7 8 BOTTOM FINISHING GUIDE Grace Wide Rectangle Finishing Guides TOP FINISHING GUIDE... -
Page 10: Fv41 Grace Kit- Arch Slim
FV46 GRACE KITS: RECTANGLE or ARCH WIDE or SLIM, INSTALLATION INSTRUCTIONS Grace Slim Arch Finishing Guide TOP ARCH FINISHING GUIDE LEFT FINISHING GUIDE RIGHT FINISHING GUIDE 40 7 8 BOTTOM FINISHING GUIDE Grace Wide Arch Finishing Guides TOP FINISHING GUIDE 34 7 LEFT FINISHING GUIDE RIGHT FINISHING GUIDE... -
Page 11: Fv41 Grace Kit- Rectangle Slim
FV46 GRACE KITS: RECTANGLE or ARCH WIDE or SLIM, INSTALLATION INSTRUCTIONS PLACEMENT FOR GRACE SLIM RECTANGLE FINISHING GUIDES Attach all finishing guides by using the Sheet Metal Screws that are provided (16) each. 12 9 TOP FINISHING GUIDE 42 1 RIGHT LEFT FINISHING... -
Page 12: Fv41 Grace Kit- Rectangle Wide
FV46 GRACE KITS: RECTANGLE or ARCH WIDE or SLIM, INSTALLATION INSTRUCTIONS PLACEMENT FOR GRACE SLIM ARCH FINISHING GUIDES Attach all finishing guides by using the Sheet Metal Screws that are provided (16) each. 7 15 TOP FINISHING GUIDE 11 11 40 13 38 11 LEFT... -
Page 13: Fv41 Grace Kit- Arch Slim
FV46 GRACE KITS: RECTANGLE or ARCH WIDE or SLIM, INSTALLATION INSTRUCTIONS PLACEMENT FOR GRACE WIDE RECTANGLE FINISHING GUIDES Attach all finishing guides by using the Sheet Metal Screws that are provided (16) each. 11 11 TOP FINISHING GUIDE 1 1 2 1 1 2 42 5 LEFT... -
Page 14: Fv41 Grace Kit- Arch Wide
FV46 GRACE KITS: RECTANGLE or ARCH WIDE or SLIM, INSTALLATION INSTRUCTIONS PLACEMENT FOR GRACE WIDE ARCH FINISHING GUIDES Attach all finishing guides by using the Sheet Metal Screws that are provided (16) each. 7 15 TOP FINISHING GUIDE 11 11 1 1 2 1 1 2 42 5... -
Page 15: Mounting To The Fireplace Body
FV46 GRACE KITS: RECTANGLE or ARCH WIDE or SLIM, INSTALLATION INSTRUCTIONS MOUNTING TO THE FIREPLACE BODY 1. Attach the #10 Spacer Stud x 1/4”, 10-24 x ½” Screw to the Fire Place Body Sides adjacent to the glass frame side edges in 4 places. Locate surround mounting holes per drawing (shown here). The screw and spacer are attached to the outside of the fire place body sides. - Page 16 FV46 GRACE KITS: RECTANGLE or ARCH WIDE or SLIM, INSTALLATION INSTRUCTIONS 3. Rotate the frame up towards the unit. 4. Hang the Grace Kit by hooking the Open Slots in the Grace’s Mounting Bracket to the Screw and Spacer on the Surround. Once in position, the Grace will drop into place in the slots, holding the Grace on the Fireplace Glass Frame.
-
Page 17: Connecting Slim Grace On Top Of Wide Grace
FV46 GRACE KITS: RECTANGLE or ARCH WIDE or SLIM, INSTALLATION INSTRUCTIONS CONNECTING SLIM GRACE ON TOP OF WIDE GRACE The following pictures show both a Wide and Slim Grace connected together in both a Rectangle and Arch version. Use the dimensions in the tables below to correctly identify the Grace(s) and ensure you possess the correct parts. - Page 18 FV46 GRACE KITS: RECTANGLE or ARCH WIDE or SLIM, INSTALLATION INSTRUCTIONS ASSEMBLING THE WIDE AND SLIM GRACE TOGETHER There are many choices and colors for the Grace Kit, they can either be used individually or a Wide and Slim Grace can be assembled together to give a layered look. FV41 Arch - Wide Overlay Only FV41 Arch - Slim and Wide Overlay together...
- Page 19 FV46 GRACE KITS: RECTANGLE or ARCH WIDE or SLIM, INSTALLATION INSTRUCTIONS 3. Identify the Wide Grace. On the Top and Bottom Screen Retainers, there are (4) places to drill through. Partially drilled ¼” holes are provided at these locations. Drill ¼” holes through these (4) holes on the Wide Grace ONLY.
-
Page 20: Cleaning Instructions
ALWAYS WEAR SOFT & CLEAN CLOTH GLOVES DURING INSTALLATION It is mandated by Mendota that all installers wear soft and clean cloth gloves to handle ALL Antique Copper Plated parts during assembly to the main Fireplace body.
