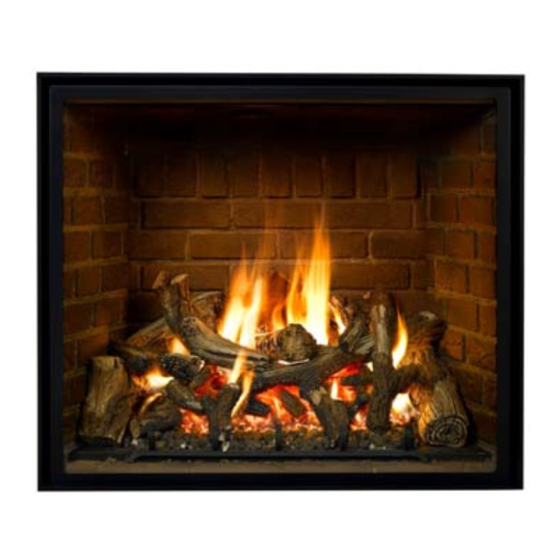

FULLVIEW RECTANGLE DIRECT VENT GAS FIREPLACE HEATER
WARNING: If the information in this manual is not followed
exactly, a fire or explosion may result causing property dam-
age, personal injury or loss of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS
•
Open windows.
•
Do not touch electrical switches.
•
Do not try to light any appliance.
•
Extinguish any open flame.
•
Do not use the phone in your building.
•
Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
•
If you cannot reach your gas supplier, call the fire
department.
•
Installation and service must be performed by a
qualified installer, service agency or the gas suppli-
er.
WARNING
Do NOT use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and
any gas control, which has been under water.
Model FV-46
OWNER'S MANUAL
DOCUMENT NO. FV-46-OM-0412
AVERTISSEMENT : Assurez-vous de bien
les instructions donné dans cette notice pour réduire au min-
imum le risque d'incendie ou pour éviter tout dommage
matéeriel, toute blessure ou la mort.
•
•
•
•
•
•
•
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
INSTALLATEUR : Laissez cette notice avec l'appareil.
CONSOMMATEUR : Conservez cette notice pour consulta-
tion ultérieure.
1 | P a g e
Ne pas entreposer ni utiliser d'essence ni d'autres vape-
rurs ou liquides inflammables dans le voisinage de cet
appareil ou de tout autre appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR
DE GAZ:
Ne pas tenter d'allumer d'appareil.
Ne touchez à aucun interrupteur. Ne pas vous servir des
téléphones se trouvant dans le batiment où vous vous
trouvez.
Appelez immédiatement votre fournisseur de gaz depuis
un voisin. Suivez les instructions du fournisseur.
Si vous ne pouvez rejoindre le fournisseur de gaz, appe-
lez le service dos incendies.
L'installation et service doit être exécuté par un quali-
fié installer, agence de service ou le fournisseur de gaz.
suivre
