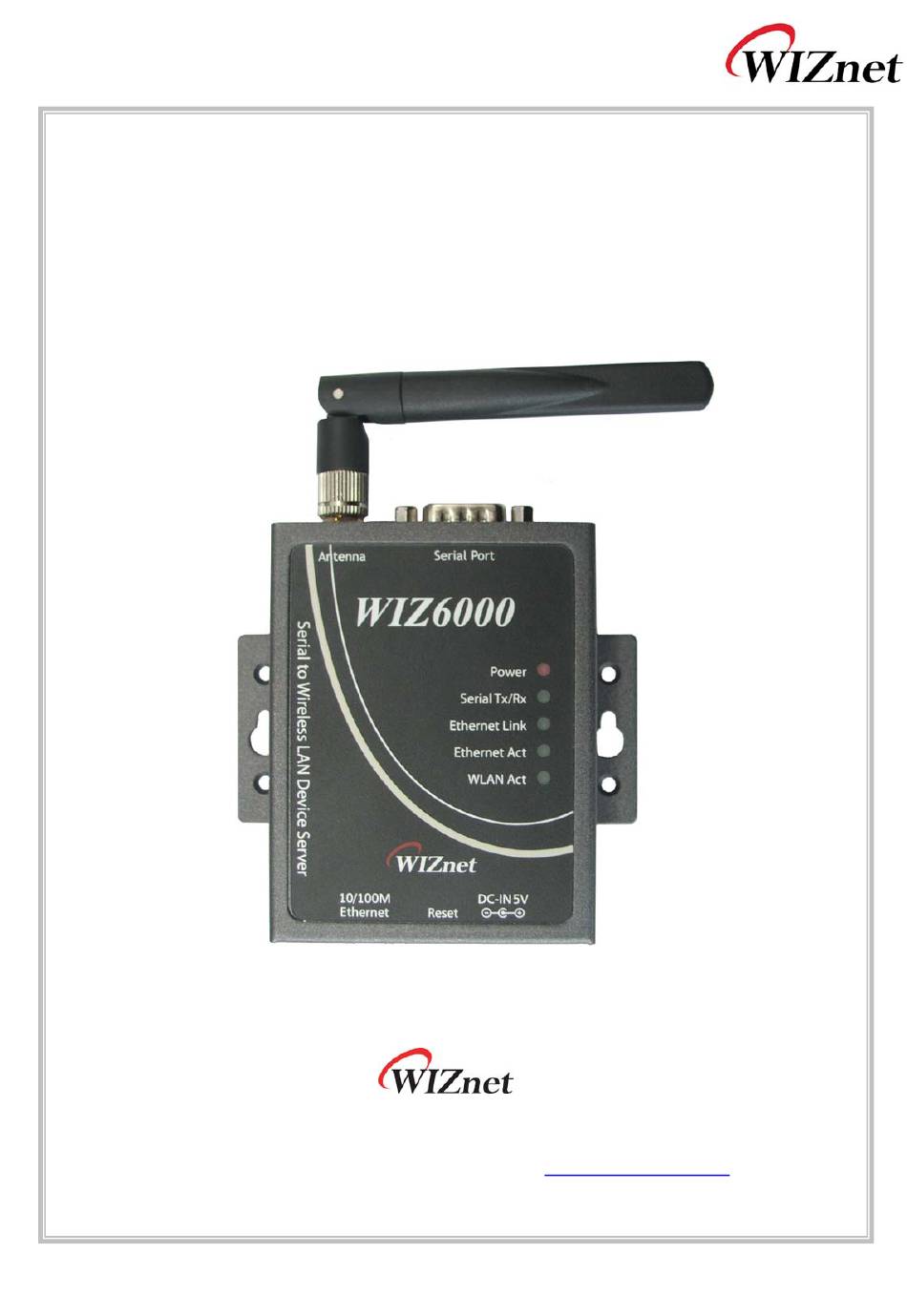

- Page 1 WIZ6000 User’s Manual (Version 0.9) ©2009 WIZnet Co., Inc. All Rights Reserved. ☞ For more information, visit our website at http://www.wiznet.co.kr (WIZnet, Inc.) - 1 - WIZ6000 User’s Manual...
-
Page 2: Document Revision History
Document Revision History Date Revision Changes 2009-09-09 V0.9 Beta Release (WIZnet, Inc.) WIZ6000 User’s Manual - 2 -... -
Page 3: Certification Information
CE for Class B ITE INFORMATION TO THE USER Hereby, WIZnet. Declares that this WIZ6000 is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC. WARNING: This is a class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. -
Page 4: Copyright Notice
Q&A Board. We will reply your questions as soon as possible COPYRIGHT NOTICE Copyright 2009 WIZnet, Inc. All Rights Reserved. Technical Support: support@wiznet.co.kr Sales & Distribution: sales@wiznet.co.kr... -
Page 5: Table Of Contents
1.2.1 WIZ6000 Device Server Interface ..............5 2. Getting Started ........................6 2.1 Hardware Installation ....................6 2.2 Configuration ......................6 2.2.1 Connecting the Web page of WIZ6000 .............. 6 2.2.2 Checking Status ....................7 2.2.3 Network Setting ....................9 2.2.4 Wireless Setting ..................... 10 2.2.4.1 Mode Selection .................. - Page 6 Figures 1. WIZ6000 D ................5 IGURE EVICE ERVER NTERFACE 2. C WIZ6000 ..............6 IGURE ONNECTING TO THE EB PAGE OF 3. I ....................7 IGURE NPUT ASSWORD 4. S ........................7 IGURE YSTEM 5. A ......................8 IGURE...
- Page 7 ERIAL ONFIGURATION RAME FORMAT 12. S .............. 36 ABLE ERIAL ONFIGURATION EPLY RAME FORMAT 13. S STX & ETX ................36 ABLE ERIAL ONFIGURATION 14. S ................37 ABLE ERIAL ONFIGURATION EPLY (WIZnet, Inc.) WIZ6000 User’s Manual - 7 -...
-
Page 8: Introduction
1. Introduction WIZ6000 is t he external g ate way mod ule whi ch p rovides a b ridge for RS -232 or Ethernet to IEEE802.11 b/g wirel ess communications. Device s with the interface of RS -232C serial or Ethernet can established a wireless network which can enable remote monitoring, management and controlling. -
Page 9: Products Contents
1.1 Products Contents WIZ6000 Device Server Included Dipole Antenna (3.377dBi SMA Type) Serial Cable Network Cable (Crossover Cable) Power (DC 5V / 2A Adaptor) Data CD (Manual, H/W & SW related Materials) Table 1. Products Contents. (WIZnet, Inc.) WIZ6000 User’s Manual... -
Page 10: Product Specification
ARP, UDP , TCP, Telnet, ICMP , IGMP DHCP , PPPoE, Protocol BOOTP, HTTP, TFTP WEP 64/128big Security WPA/WPA2 PSK/AES/TKIP 802.1x(Radius) Management HTTP, Telnet, Serial, UDP Notification Event Logging Table 3. Products Specification - Software (WIZnet, Inc.) WIZ6000 User’s Manual... -
Page 11: Table 4. Products Specification - Hardware
Flow Control: XON / XOFF (Software), CTS / RTS (Hardware), None Power DC 5V input Power Consumption Under 600mA ( 3.3V ) Dimension 90.5mm X 94.5mm X 22.7mm (Excluded antenna size) Table 4. Products Specification - Hardware (WIZnet, Inc.) WIZ6000 User’s Manual... -
Page 12: Wiz6000 Device Server Interface
1.2.1 WIZ6000 Device Server Interface Figure 1. WIZ6000 Device Server Interface (WIZnet, Inc.) WIZ6000 User’s Manual... -
Page 13: Getting Started
This manual describes all configurations in detail. For the quick and easy installation, please refer to “ WIZ610wi Quick Installation Guide”. 2.1 Hardware Installation Connect the WIZ6000 to the HUB or PC by using a network cable. STEP1: Connect the WIZ6000 to the serial device by using the RS-232C serial cable. -
Page 14: Checking Status
Figure 3. Input ID and Password 2.2.2 Checking Status 1) System Data Figure 4. System Data (WIZnet, Inc.) WIZ6000 User’s Manual... -
Page 15: Figure 5. Active Clients
Channel The wireless channel of WIZ6000. Table 5. System Data Notice WIZ6000 supports the MAC address for both Ethernet and Wireless interface. 2) Active Client Figure 5. Active Clients In this p age, the information of client s con necting to WIZ610wi is displ ayed. -
Page 16: Network Setting
WIZ6000 can not recognize your module as a DHCP server. DHCP Client Range: When WIZ6000 operates as the DHCP Server, the IP address range must be assi gned in ord er for the client s to conn ect. If the DHCP server function is disabled, this DHCP Client Range is not activated. -
Page 17: Wireless Setting
You can select one of Access Point, Gateway and Client for the wireless connection mode. Figure 8. Operation Mode Access Point is the default mode. If you select Gateway or Client and click the “Setup” button, the progress bar will be shown. (WIZnet, Inc.) WIZ6000 User’s Manual... -
Page 18: Figure 9. Changing Operation
In this mode, your device act as a clie nt. If you con figure PC or application d evice a s DHCP client, Access Point will be the DCHP Server and WIZ610wi doesn’t act as DHCP Server. (WIZnet, Inc.) WIZ6000 User’s Manual... -
Page 19: Ip Configuration In Each Mode
Figure 10. Access Point Mode - 1 - The IP address assigned to WIZ6000 is for administration and web configuration. - Even though the WIZ6000 is configured as DHCP Server, the PC will acquire IP address from IP Sharing device or ADSL/Cable Modem. -
Page 20: Figure 12. Gateway Mode
- WIZ6000 can be set IP as Static or DHCP client at ‘Client Setup>WAN Port Setup’. And al so WIZ6000 can b e act DHCP Server simultaneously by assigning a dding 1 00 of fi rst DHCP server . For exam ple, if DHCP server ’s cl ient r ange is XXX.XXX.XXX.2~100, then WIZ6000’s assigning DHCP Client IP address to application board is XXX.XXX.XXX.102~200. -
Page 21: Access Point Setup
2.2.4.3 Access Point Setup After selecting the AP mode and please click “Setup” button, the page below is shown. Figure 14. AP Mode Settings Alias Name : Input the name for WIZ6000. Band : Select communication protocol of WIZ6000. Notice 802.11g protocol is compatible with 802.11b. -
Page 22: Figure 15. Wireless Security
Mode : Select mode - AP : IF AP is selected, WIZ6000 operates as Access Point. - WDS Repeater : WDS (Wireless Distribution System) that can be used for the communication between WIZ6000 and WIZ6000. When this mode is selected, AP function operates at the same time. -
Page 23: Table 6. Authentication Method
Key Format Option : ASCII(5 Characters) or Hex(10 Character) Max 4 Tx Key values can be configured. Select one of them. Default Tx Key Input the key value. Encryption Key 1~4 Table 7. WEP Configuration (WIZnet, Inc.) WIZ6000 User’s Manual... -
Page 24: Figure 16. Wireless Advanced
After receiving an RTS, the wireless station responds with a Clear to Send (CTS) frame to acknowledge the right to begin transmission. The RTS Threshold value should remain as its default value of 2347. (WIZnet, Inc.) WIZ6000 User’s Manual... -
Page 25: Figure 17. Wireless Access
Table 8. Wireless Advanced Settings Access Control By registering the MA C address of a client, WIZ6000 blocks or allows the client to acce ss. If you click the “Setup” button, page below appears. Figure 17. Wireless Access Control Wireless Access Control Mode : This option allows you to enable or disable the “Wireless... -
Page 26: Gateway Setup
Reset: Discard all changes in all fields. 2.2.4.4 Gateway Setup Notice When cha nged to Gateway mode, wired netwo rk is disco nnected, It becau se WIZ6000’s wire port act as WAN Port. So to solve this problem.. 1. Connect WIZ6000 through wireless 2. -
Page 27: Figure 19. Gateway Setup
Advanced Settings: Refer to “2.2.4.3 Access Point Setup”. Access Control: Refer to “2.2.4.3 Access Point Setup”. WAN Port : If configures WAN port. It configures the network environment for the connection to WIZ6000. (WIZnet, Inc.) WIZ6000 User’s Manual... - Page 28 - Static IP : Manually input your IP address, Subnet Mask, Default Gateway and DNS. - DHCP Client : An IP address can be acquired from a DHCP server. The DNS information can be automatically acquired from a DHCP server or set manually (Set DNS Manually).. (WIZnet, Inc.) WIZ6000 User’s Manual...
- Page 29 IP address. Static IP address is recommended when using the DMZ Remote Management : Configure the port number for the connection to WIZ6000 from a remote site. Default Port Number is set as “8080”.
-
Page 30: Client Setup
DHCP Client, the AP will operates as its DHCP server and WIZ6000 d oesn’t a ct a s DHCP Se rver. Wh en y ou conn ect to an AP with se curity enabled ,the “Wi reless Secu rity Setup Page” will appear a utomatically to set-up you r security settings. -
Page 31: Serial Setting
Figure 23. Site Survey 2.2.5 Serial Setting For the ‘Serial to Wireless’ communication, you can configure serial parameters. Figure 24. Serial to Ethernet Configuration (WIZnet, Inc.) WIZ6000 User’s Manual... - Page 32 WIZ6000 and from WIZ6000 to the host Mixed mode In this mod e, WIZ6000 normally operates as a T CP Server and waits for a connection request from a client. However, if WIZ6000 re ceives data from the serial device before connection is established, WIZ6000 changes to the client mode and sends the data to the server.
- Page 33 Serial data : 0123456789abc Ethernet data : 0123456789 ☞ “abc” remains in the serial buf fer of t he module and will not be sent until the spe cified size or character has been fulfilled. (WIZnet, Inc.) WIZ6000 User’s Manual...
-
Page 34: Security Setup
Refer to “2.2.4.3. Access Point Setup’. 2.2.7 Others 2.2.7.1 Password You can change the password of WIZ6000 Figure 25. Password Setup 2.2.7.2 Log The log information can b e saved. In o rder to use this functio n, check the combo box “Enabl e Log”. -
Page 35: Upgrade
2.2.7.3 Upgrade In this page, you can upgrade the firmware of your WIZ6000. Browse the firmware file b y clicking the “Find” button. If you click “Upload” button after selecting firmware file, the firmware starts uploading. This process will take about 60 seconds. -
Page 36: Reboot
Long Preamble Beacon Interval 100ms Inactivity Time 30000ms Broadcast SSID Enable WMM Enable Password Admin Log Disable Table 9. Factory Default Value 2.2.7.5 Reboot In this page, you can reboot your module Figure 28. Reboot System (WIZnet, Inc.) WIZ6000 User’s Manual... -
Page 37: Hardware Specification
Hardware Specification 3.1 WIZ6000 Dimension 90.5 67.5 11.5 14.5 26.0 27.0 22.5 11.5 16.5 22.5 87.5 94.5 Figure 29. WIZ6000 Dimensions (unit : mm) (WIZnet, Inc.) WIZ6000 User’s Manual... -
Page 38: Connector Specification
Hardware Trigger signal Input Receive Data Transmit Data EXT_GND External Power Ground (Internally shorted to GND) Ground 6 NC Not connect Request To Send Clear To Send EXT_VCC External Power Input (5V) Table 10. RS-232 PIN Assignment (WIZnet, Inc.) WIZ6000 User’s Manual... -
Page 39: Demonstration And Test
4. Demonstration and Test In this ch apter, an exam ple is provided f or you to test the function ality of WIZ6000. The te sting environments are the followings: <Hardware> A PC equipped with a RS-232 serial port ... -
Page 40: Figure 32. Wireless Network
③ Connect to “WIZ6000” in the Wireless Network Setting of your PC Figure 32. Wireless Network Connection ④ Execute one more terminal program, and set IP address and Port number. Figure 33. Network Terminal Program configuration ⑤ Input any chara cters i n the Hype r T erminal f or Seri al. -
Page 41: Figure 34. Received Data By
⑥ In the same way, input an y characte r a t t he screen of terminal p rogram for ne twork, and check if same character is displayed at the screen for serial. ( Ethernet to Serial ) (WIZnet, Inc.) WIZ6000 User’s Manual... -
Page 42: Figure 36. Device Terminal
For the IP ad dress an d po rt, please inp ut your IP address and port n umber of WIZ6000 a nd click the “Con nect” button to start a network communication. -
Page 43: Serial Configuration
Serial Configuration Serial Command Format It is possible to configure WIZ6000 by using serial command. RS-232C port’s Pin number 1 of WIZ6000 is Hardware trigger pin. ( ‘1’: H/W trigger disable, ‘0’: enable ) < Frame Format > Command Frame format... -
Page 44: Table 14. Serial Configuration Reply Code
Start/End IP <Sxxx.xxx.xxx.xxx_xxx.xxx.xxx.xxx> DHCP Start address_End address WH Set Start/End IP <xxx.xxx.xxx.xxx_xxx.xxx.xxx.xxx> Wireless MAC address_Channel_TxRate_RSSI DL Get Active Client <Sxxxxxxxxxxxx_xx_xx_xx[:xxxxxxxxxxxx_xx_xx_xx:…]> List <IP address_MAC address> DHCP Client RL Get <Sxxx.xxx.xxx.xxx_xxxxxxxxxxxx[:xxx.xxx.xxx.xxx_xxxxxxxxxx List xx:…]> DNS Server 1:Enable, 0:Disable (WIZnet, Inc.) WIZ6000 User’s Manual... - Page 45 0: 11b+g, 2: 11b, 3:11g, 6: n, 9:b+g+n DB Get Band <Sx> Wireless 0: 11b+g, 2: 11b, 3:11g, 6: n, 9:b+g+n GB Set Band <x> Operation 0:AP, 1:Gateway, 2: AP+WDS, 3:Client DO Get Mode <Sx> Operation 0:AP, 1:Gateway, 2: AP+WDS, 3:Client (WIZnet, Inc.) WIZ6000 User’s Manual...
- Page 46 DH Get SSID <Sx> Broadcast 0:Enable, 1:Disable GH Set SSID <x> 1:Enable, 0:Disable DM Get <Sx> 1:Enable, 0:Disable GM Set <x> 0:Disable,1:AllowListed,2:DenyListed[_count[_MACaddress_C MAC Access DA Get omment]] Control <Sx_x_xxxxxxxxxxxx_xxx~> MAC Access 0:Disable,1:AllowListed,2:DenyListed[_1:add,2:delete_count_ GA Set Control MACaddress_Comment] (WIZnet, Inc.) WIZ6000 User’s Manual...
- Page 47 AuthMode: 0(Open or Shared), 1(Open), 2(802.1x), 3(Shared), 4(WPA), 5(WPA-PSK), 6(WPA2), 7(WPA2-PSK), Security Encrypt: 0(None),1 (WEP), 2(TKIP), 3(AES), 4(TKIP_AES) GU Set Control KeyLength: 0(None), 1(WEP64), 2(WEP128) KeyFormat(WEP): 0(Ascii), 1(Hex) KeyFormat(WPA-PSK): 0(Passphrase), 1(Hex) (WPA-PSK KeyValue:8~63byte) <x_x_x_x_x_x_x_x> Serial TCP_0, UDP_1 RK Get Protocol <Sx> (WIZnet, Inc.) WIZ6000 User’s Manual...
- Page 48 [parity] 0: no parity, 1: Odd, 2: Even low_Stopbits [Flow] 0: no, 1: Xon/Xoff, 2: RTS/CTS [Stopbits]; 1: 1stop, 2:2stop <xxxxx> 0~65535 QT Get Time <Sxxxxx> 0~65535 OT Set Time <xxxxx> 0~255 QS Get Size <Sxxx> (WIZnet, Inc.) WIZ6000 User’s Manual...
- Page 49 There is not in command list <2> Wrong Parameter factor <3> ">" is wrong error code <4> Do not work in current mode No more add list. -Limit- 5 <5 > *WDS: 4 list *ACL: 16 list (WIZnet, Inc.) WIZ6000 User’s Manual...
-
Page 50: Figure 13. Client Mode
If multi command input, response time be delayed For example DA, GA, DW, GW Notice Security Available mode AP/GW Mode AuthMode: 0-7 EncryptTyp e: 0-3 Client Mode AuthMode: 1,3,5,7 EncryptTyp e: 0,1,4 **Security Example parameter <GU5_2_0_0_12345678> <GU4_2_0_0_12345678_abcd_192.168.123.111_1812> (WIZnet, Inc.) WIZ6000 User’s Manual... -
Page 51: Warranty
ONE(1) YEAR for the WIZ6000 board and labor warranty after the date of original ret ail purchase. Duri ng this pe riod, WIZnet will repair or repl ace a defective products or part free of charge.
