4.
User Interface Reference
The Examiner user interface consists of three tabs (Tests, Results, and Settings) for test
selection, test results, and environmental settings.
Each tab displays specific information
and/or allows the user to interact with the software for a given task.
4.1 Tests Tab
On the left, shows tests available and selected. Controls for selecting and executing tests are
available. On the right, displays information specific to the connected device under test, and
certain test settings.

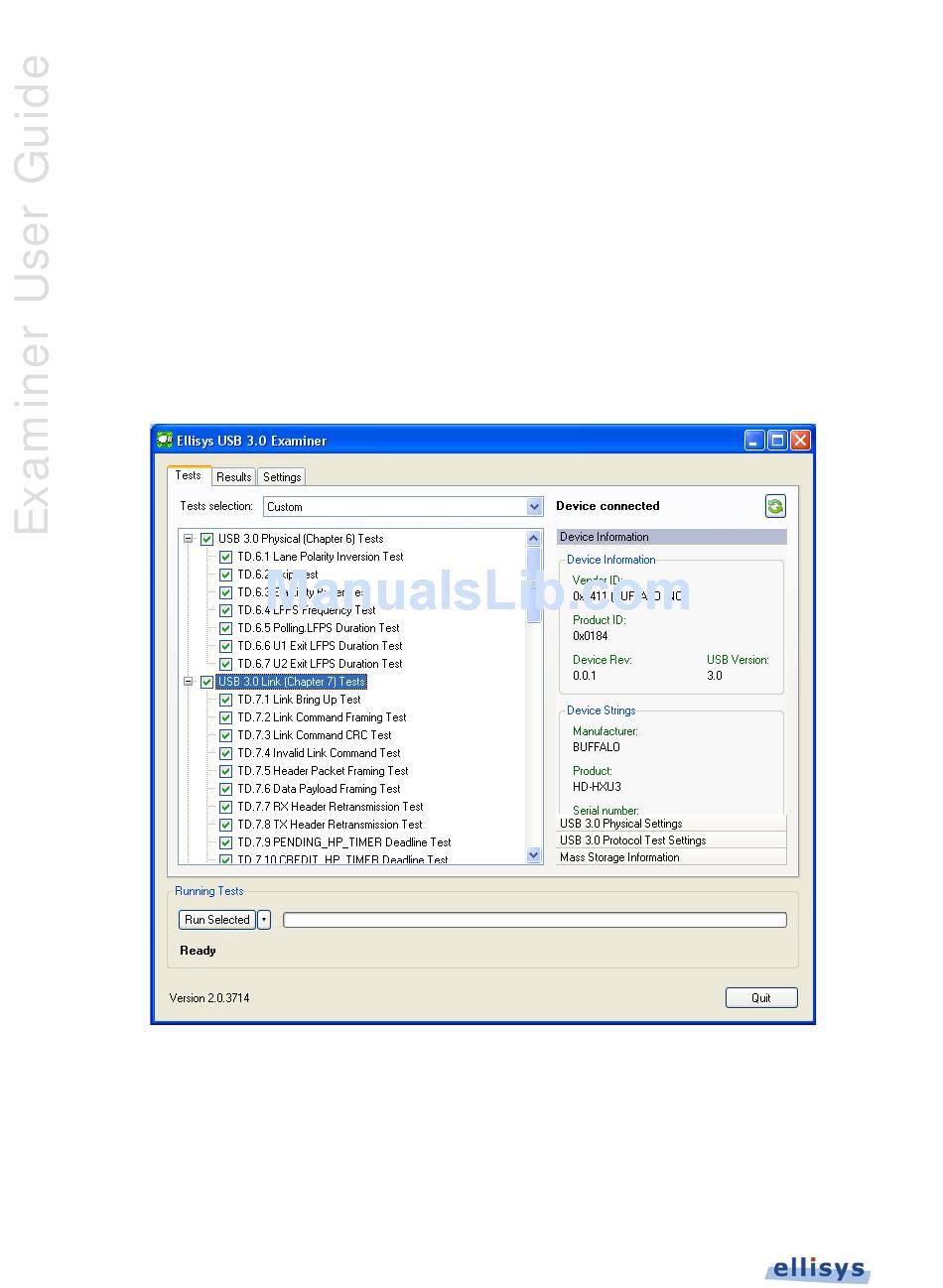

Figure 4-1 Examiner Application - Tests Tab
38 of 124 |
