Once initiated by the user, testing progresses automatically, with pass/fail decisions made in
hardware by the Explorer 280 system executing the Examiner application. Pass/fail results are
provided to the user in real-time during testing and also summarized in an HTML report made
available at the completion of testing (see figure 1-3 below), which includes links to
automatically saved traces for each test, as captured by the analyzer.
The EX280 unit being used to operate Examiner may be otherwise
enabled as an EX280 Generator or EX280 Analyzer (or both, in the
case of the EX280 Duo). Examiner is an optional feature and must be
specifically enabled on the EX280 hardware.
updating an Explorer 280 to include the Examiner functionality, please
contact
14 of 124 | Examiner Overview

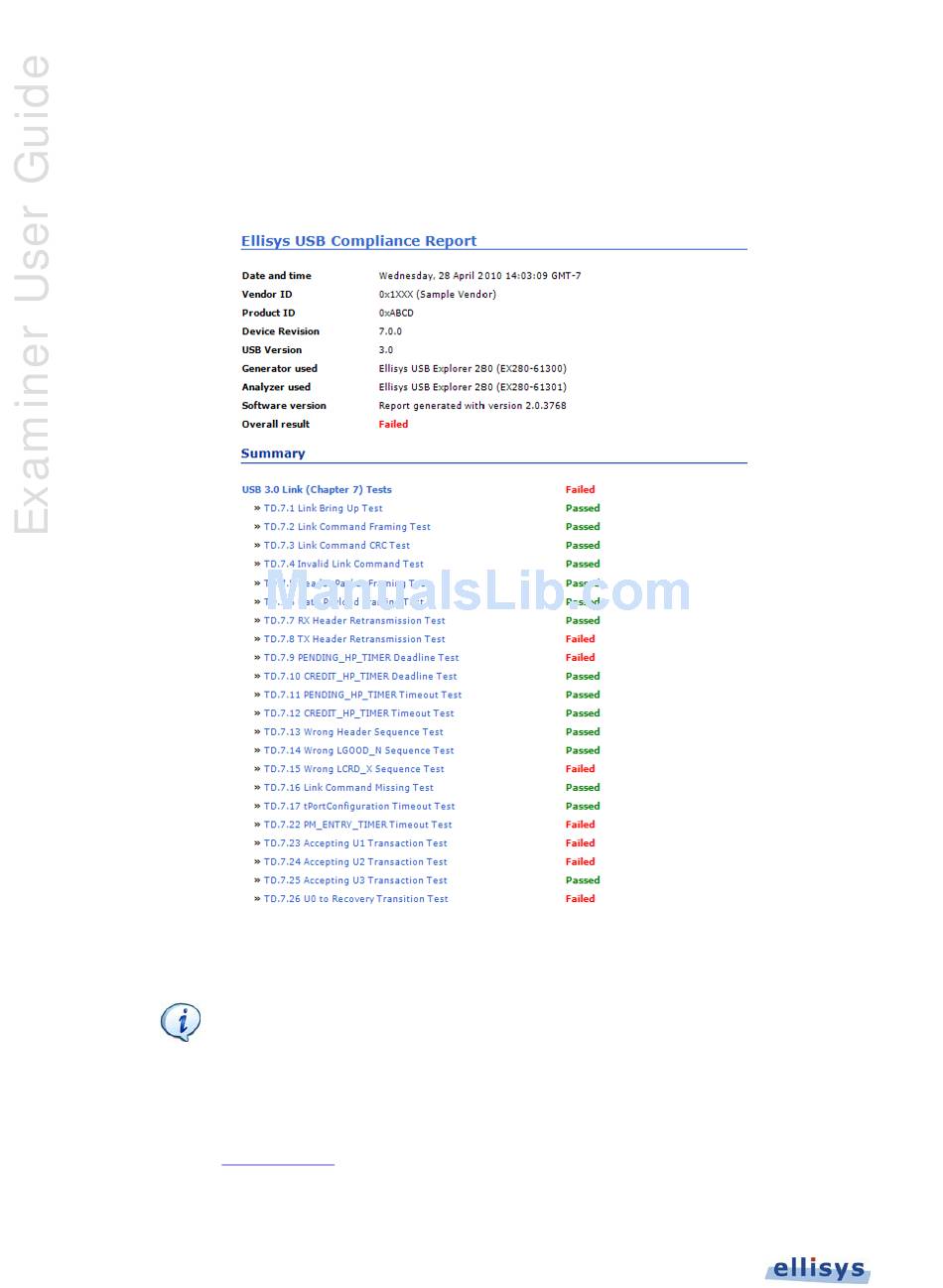

Figure 1-3 Sample HTML Compliance Report

Ellisys.
For information on
