To set up Examiner to test a hub downstream-facing port:
For testing of a Hub downstream-facing port (DFP), the upstream-facing port of the hub must
be connected to a host system that has USB30CV installed. Connect as shown in the figure
below.
Ensure USB30CV is loaded on the host system.
The DC power supplies for the Examiner unit and the analyzer unit are
not shown in the Figure below, but are required.

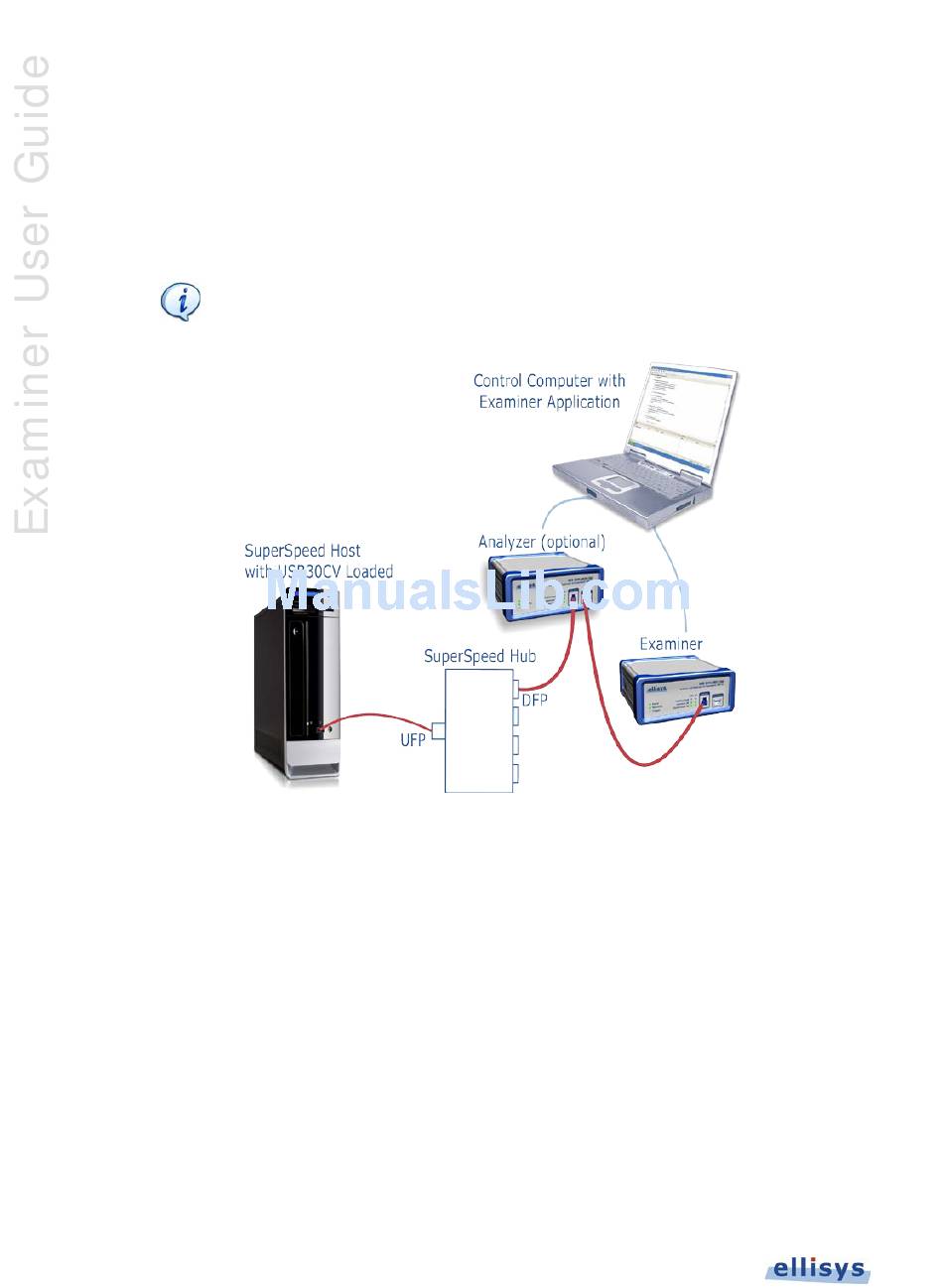

Figure 3-4 Examiner Setup for Testing Hub Downstream-Facing Port
28 of 124 |
Hardware Setup and Configurations
