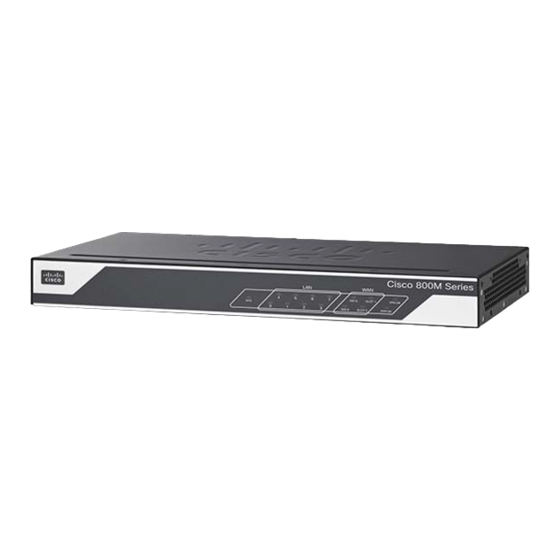

Cisco 800M Series Integrated Services
Router Hardware Installation Guide
August 29, 2015
Cisco Systems, Inc.
www.cisco.com
Cisco has more than 200 offices worldwide.
Addresses, phone numbers, and fax numbers
are listed on the Cisco website at
www.cisco.com/go/offices.

Advertisement

   Related Manuals for Cisco 800M series

   Summary of Contents for Cisco 800M series

  • Page 1

    Cisco 800M Series Integrated Services Router Hardware Installation Guide August 29, 2015 Cisco Systems, Inc. www.cisco.com Cisco has more than 200 offices worldwide. Addresses, phone numbers, and fax numbers are listed on the Cisco website at www.cisco.com/go/offices.

  • Page 2

    OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks.

  • Page 3: Table Of Contents

    Ethernet Devices Installing the Router Warnings Installing on a Table Mounting on a Wall Mounting on a Rack Connecting the Router Preparing to Connect the Router Connecting a PC, Server, or Workstation Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 4

    Connecting a Terminal or PC to the Console Port Verifying Connections Initial Configuration Cisco IOS CLI Setup Command Facility Verifying the Initial Configuration Technical Specifications Router Specifications Mean Time Between Failure Ground Benign Environment Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 5

    This guide provides an overview and explains how to install, connect, and perform initial configuration for the Cisco 800M Series Integrated Services Routers (ISRs). Audience This guide is intended for Cisco equipment providers who are technically knowledgeable and familiar with Cisco routers and Cisco IOS software and features. Organization This guide is organized into the following chapters and appendix.

  • Page 6: Conventions

    Means the following information will help you solve a problem. The tip information might not be troubleshooting or even an action, but could be useful information. Cisco 800M Series Integrated Services Router Hardware Installation Guide viii...

  • Page 7

    üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden. BEWAHREN SIE DIESE HINWEISE GUT AUF. Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 8

    Använd det nummer som finns i slutet av varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna anordning. SPARA DESSA ANVISNINGAR Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 9

    Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 10

    Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de oversatte advarsler, der fulgte med denne enhed. GEM DISSE ANVISNINGER Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 11

    Cisco 800M Series Integrated Services Router Hardware Installation Guide xiii...

  • Page 12

    Appliance and Material Safety Law prohibits the use of UL-certified cables (that have the “UL” shown on the code) for any other electrical devices than products designated by CISCO. The use of cables that are certified by Electrical Appliance and Material Safety Law (that have “PSE” shown on the code) is not limited to CISCO-designated products.

  • Page 13

    Installation of the equipment must comply with local and national electrical codes. Statement 1074 Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Warning Statement 1030 Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 14: Related Documentation

    Obtaining Documentation and Submitting a Service Request For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at: http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html...

  • Page 15: Product Overview

    The Cisco 800M Series ISR provides Gigabit Ethernet WAN connectivity option through two Gigabit Ethernet WAN ports. For LAN connectivity, the Cisco 800M Series ISR has four or eight Gigabit Ethernet LAN ports. The Cisco 800M Series ISR can be powered by an (included) external AC adapter.

  • Page 16: General Description

    Cisco C841M-4X-JSEC/K9 and C841M-4X-JAIS/K9 ISR Rear View WIM slot (panel not removable) Console WIM slot (panel not removable) Reset/Push Button Power Cord Lock WAN Ports Power Port LAN Ports 10 Kensington security slot Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 17: Hardware Features

    Reset/Push Button Power Cord Lock WAN Ports Power Port LAN Ports 10 Kensington security slot Hardware Features The Cisco 800M Series ISR supports the following hardware features: Platform Features, page 1-4 • Memory, page 1-5 • Power Supply, page 1-5 •...

  • Page 18: Platform Features

    LED indicators for the platform LEDs The Cisco 800M Series ISR has LEDs located in the front of the router. The Cisco C841M-4X-JSEC/K9 ISR and Cisco C841M-4X-JAIS/K9 ISRs have four LAN ports and also four LEDs (0-3) corresponding to each LAN port. The Cisco C841M-8X-JAIS/K9 ISR has eight LAN ports which has eight LEDs (0-7) corresponding to eight LAN ports.

  • Page 19: Memory

    A Kensington lock feature is placed on the unit in a location acceptable to Cisco product marketing. SKU Information Table 1-2 lists the different SKUs for Cisco 800M Series ISR. 4 port SKU and 8 port SKU use the same PCB. Table 1-2...

  • Page 20

    Chapter 1 Product Overview Hardware Features Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 21: Installing The Router

    C H A P T E R Installing the Router This chapter describes the equipment and the procedures for successfully installing the Cisco 800M Series ISR, and contains the following sections: Equipment, Tools, and Connections, page 2-2 • • Installing the Router, page 2-3...

  • Page 22: Equipment, Tools, And Connections

    • Items Shipped with your Router Unpack the box and verify that all items listed on the invoice are shipped with the Cisco 800M Series ISR.The following items are shipped with your router: PWR CABLE - Country specific Power Cable, Max 1 •...

  • Page 23: Installing The Router

    Installing the Router This section describes how to install the Cisco 800M Series ISR. The Cisco 800M Series ISR can be installed on a table top or mounted on a wall. You can choose the type of mounting while ordering the Cisco 800M Series ISR.

  • Page 24: Installing On A Table

    Attach the two brackets to the chassis using the three screws provided for each bracket such that the Step 1 brackets are facing the bottom of the router, as shown in Orient the Cisco 800M Series router, facing the I/O side facing upwards as shown in Figure 2-2, or in...

  • Page 25

    Install the router to a wall stud using two number-10 wood screws, and round- or pan-head. The screws Step 3 must be long enough to penetrate at least 1.0 inch (25.4 mm) into the supporting wood or metal wall stud as shown in Figure 2-4. Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 26: Mounting On A Rack

    The two brackets provided along with the router which can be used for wall mount or rack mount. These brackets support mounted the router on a standard 19 inch rack. The brackets must be rotated 90 degrees and used for mounting it on the rack. Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 27

    Router I/O facing the user - Reverse the rack mount brackets to have offset rack mount option as shown in Figure 2-7. Figure 2-5 Attaching the Brackets (LEDs facing the user) LEDs facing the user Figure 2-6 Attaching the Brackets(I/O side facing the user) Input/ Output side Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 28

    Install the power switch lock. Tighten the screws to a torque of 8 to 10 in-lb (0.9 to 1.1 N-m). Torque the Step 5 hex standoff to the same torque. Connect the other end of the ground wire to a known reliable earth ground point at your site. Step 6 Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 29

    Installing the Power Cord Retention Latch The Cisco 800M Series ISR has a power cord retention mechanism as a accessory. It locks the power cord to the router. When a user accidentally pulls on the power cord, the power cord will not come out from the router.

  • Page 30

    To remove the power cord lock, use your thumb and index fingers to squeeze ends of tabs while pulling Step 3 away from the router as shown in Figure 2-10. Figure 2-10 End of Tabs End of tabs Cisco 800M Series Integrated Services Router Hardware Installation Guide 2-10...

  • Page 31: Connecting The Router

    C H A P T E R Connecting the Router This chapter describes how to connect the Cisco 800M Series ISR to Ethernet devices and a network. The section contains the following topics: Preparing to Connect the Router, page 3-1 •...

  • Page 32: Connecting A Pc, Server, Or Workstation

    Connect the other end of the cable to the RJ-45 port on the network interface card (NIC) that is installed Step 2 in the PC, server, or workstation. (Optional) Connect additional servers, PCs, or workstations to the other Ethernet switch ports. Step 3 Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 33: Connecting An External Ethernet Switch

    PCs, you can add Ethernet connections to the router by connecting an external Ethernet switch to the Ethernet switch on the router. Similarly, if you are using Cisco C841M-8X-JAIS/K9 ISR, use an external Ethernet switch to connect more than eight PCs.

  • Page 34: Connecting A Terminal Or Pc To The Console Port

    Some laptops and PCs do not come with DB-9 serial port connectors and may require a USB-to-serial port adapter. To communicate with the router, start a terminal emulator application. Step 3 Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 35: Verifying Connections

    Verifying Connections To verify that all devices are properly connected to the router, first turn on all the connected devices, and then check the LEDs. For more information on LEDs on the Cisco 800M Series ISR, see LEDs, page 1-4.

  • Page 36

    Chapter 3 Connecting the Router Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 37: Initial Configuration

    • Cisco IOS CLI To configure the initial router settings by using the Cisco IOS CLI, you must set up a console connection. For instructions on how to set up a console connection, see the “Connecting a Terminal or PC to the Console Port”...

  • Page 38

    (less secure) and can be seen when viewing the configuration. The enable password is used when you do not specify an enable secret password, with some older software versions, and some boot images. Enter enable password: xxxxxx Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 39

    Configure IP on this interface? [yes]: yes IP address for this interface: 172.1.2.3 Subnet mask for this interface [255.255.0.0] : 255.255.0.0 Class B network is 172.1.0.0, 26 subnet bits; mask is /16 Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 40: Verifying The Initial Configuration

    Verify the initial configuration. See the “Verifying the Initial Configuration” section on page 4-4 verification procedures. After the initial configuration file is created, you can use the Cisco IOS CLI to perform additional configuration. Verifying the Initial Configuration To verify that the new interfaces are operating correctly, perform the following tests: To verify that the interfaces and line protocol are in the correct state—up or down—enter the show...

  • Page 41: Technical Specifications

    Table A-1 lists the operational limits of the Cisco 800M Series ISR. Operating the router outside of the limits specified is not supported. For the complete list of SKUs available for Cisco 800M Series ISRs, see the “SKU Information” section on page 1-5.

  • Page 42

    Optional cm) EIA Wall-mount (refer to Optional Optional Optional installation guide for approved orientation) Weight (maximum) 1.7 Kg 1.7 Kg 1.7 Kg Airflow Natural convection Natural convection Natural convection Environmental Specifications Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 43

    A12:2011 + A2:2013 ITE equipment equipment equipment UL 60950-1+ AMD 1 AMD UL 60950-1+ AMD 1 UL 60950-1+ AMD 1 2 ITE equipment AMD 2 ITE equipment AMD 2 ITE equipment EN62311 EN62311 EN62311 Cisco 800M Series Integrated Services Router Hardware Installation Guide...

  • Page 44: Mean Time Between Failure Ground Benign Environment

    Mean Time Between Failure Ground Benign Environment Table A-2 lists the Mean Time Between Failure (MTBF) values for Cisco 800M Series ISRs. The MTBF is calculated based on the Ground Benign condition. The values may be adjusted based on the different router usage.
