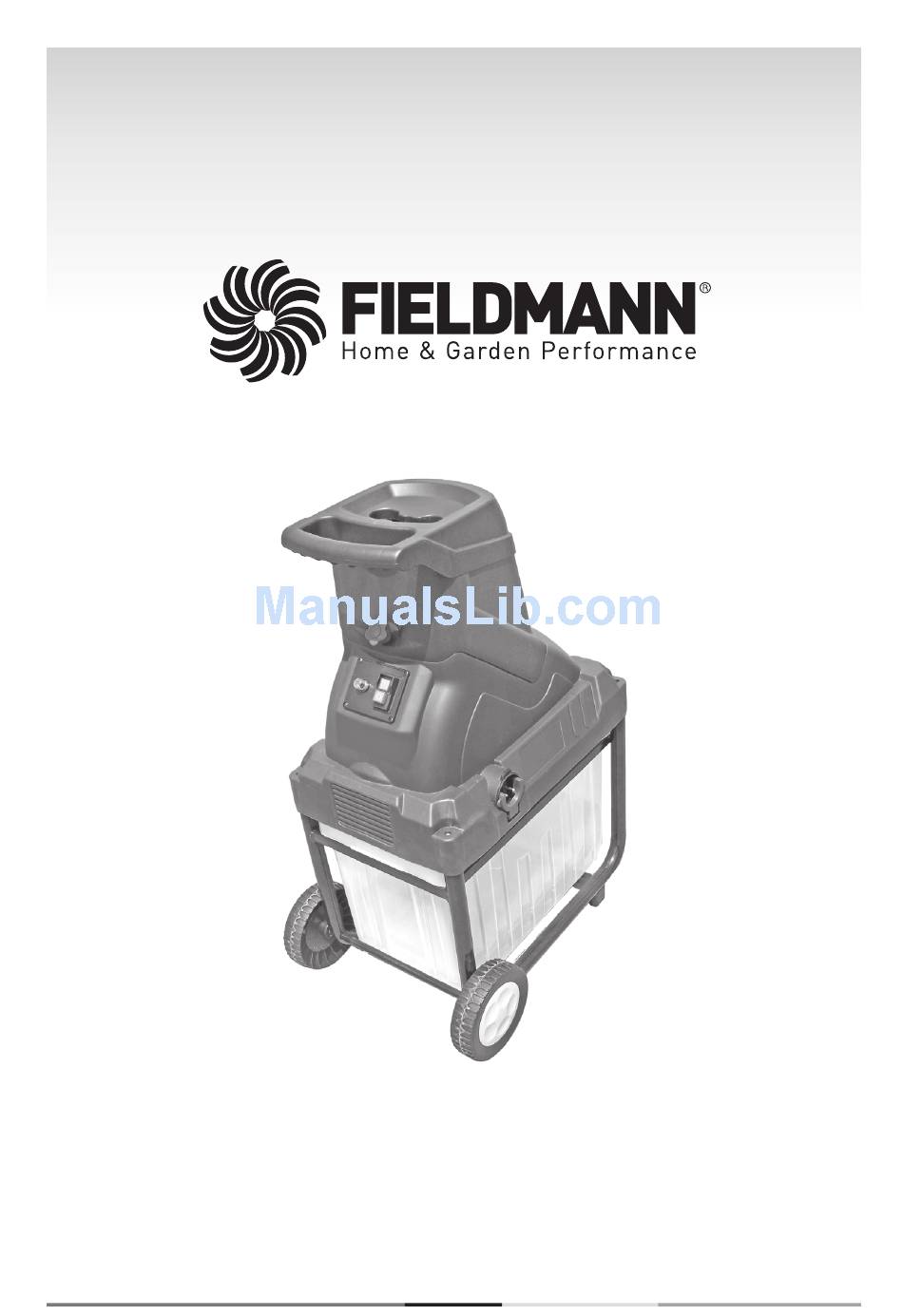

- Page 1 FZD 4001-E...
- Page 3 FZD 4001-E...
- Page 5 FZD 4001-E...
- Page 7 FZD 4001-E...
-
Page 8: Table Of Contents
Contents Electrical shredder INSTRUCTION MANUAL Dear customer, Thank you for placing your trust in our product! Before using the product for the first time, please make sure you read these operating instructions! Here you will find information about how to use the product safely and ensure its long service life. -
Page 9: General Safety Instructions
Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs. The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual. FZD 4001-E... -
Page 10: Symbols
Symbols 2. SYMBOLS ELECTRICAL SHREDDER OPERATING INSTRUCTIONS... -
Page 11: Machine Description And Items Delivered
4 screws M5×35 4 screws M5×20 2 washers ø8mm 2 washers ø10mm 8 washers ø5mm 2 self-locking nuts Feet Collection tray Plunger Frame Axle Wheels Wheel caps Note: If a part is missing or damaged, please contact the vendor. FZD 4001-E... -
Page 12: Before You Begin
Before you begin… | For your safety 4. BEFORE YOU BEGIN… Intended use When used for its intended purpose, this device corresponds to the state of the art, as well as to the current safety requirements at the time of its introduction. The device is intended for chopping up fibrous or woody organic material from household and garden. - Page 13 Do not reach into the hopper or the vertical chute while the device is operating. The device runs for approx. 5 seconds after it has been switched off. Before switching on, the device must be assembled according to regulations. FZD 4001-E...
- Page 14 For your safety Before switching on, check whether all screws, nuts and other fastening elements are tight and all protective equipment is attached properly. When working with the device, always maintain a safe distance and natural body position. Only work in good light and vision conditions. The operator must wear tightly fitting clothing.
-
Page 15: Assembly
Check whether the hopper is empty. Check all parts to make sure that they fit tightly. Check whether there are any visible defects: broken parts, cracks, etc. Starting the product P. 6, item 4 P. 6, item 5 FZD 4001-E... -
Page 16: Overload Protection
Operation WARNING! Product damage Before starting the product, make sure that there is no material in the hopper. Before feeding material in, wait until the chipper has reached its working speed. Fold down the cable protector and connect the product to the mains. Press button [1]. -
Page 17: Cleaning And Maintenance
Wipe down the device with a slightly damp cloth. Never spray the device with water or subject it to water. To clean, never use cleansers or solvents. This can cause irreparable damage to the device. The plastic parts can be eaten away by the chemicals. FZD 4001-E... -
Page 18: Storage And Transport
Cleaning and maintenance | Storage and transport Maintenance - Changing the blades P. 6, item 6 P. 7, item 7 Loosen the locking screw (2) and remove the hopper from the chipper housing. To lock the blade disc, place the combination wrench into the opening (8) of the blade cover. Loosen the screws (9) with the Allen key. -
Page 19: Faults And Remedial Measures
If you are unable to remedy the fault yourself, please contact your local store. Please note that the improper performance of repair work will lead to the loss of any warranty claims and that additional costs may be incurred. FZD 4001-E... -
Page 20: Technical Specifications
Technical specifications 11. TECHNICAL SPECIFICATIONS Rated voltage 230–240 V~/50 Hz Nominal output 2800 W Protection class Degree of protection IPX4 Idling speed 2850 rpm-1 Maximum branch diameter 45 mm Sound pressure level (LPA)* 98 dB(A) Sound power level (LWA)* 108 dB(A) Weight 24,2 kg The specified values are emission values and do not necessarily represent safe workplace... -
Page 21: Declaration Of Conformit
Declaration of conformity 12. DECLARATION OF CONFORMITY Product/Name: LAWN MOWER / FIELDMANN Type/Model: FZD 4001E ................ 230V, 2800W, IPX4, 2850/min The product complies with the following directives: EC Directive for low voltage electrical equipment No.2006/95/EC EC Council Directive 2006/42/EC Machinery EC Directive for Electromagnetic Compatibility (EMC) No.2004/108/EC... -
Page 22: Disposal
Disposal 13. DISPOSAL INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING. Put any used package material to the place determined by the municipality for waste disposal. DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste.
