Summary of Contents for Recsea WHC-G1XMKII

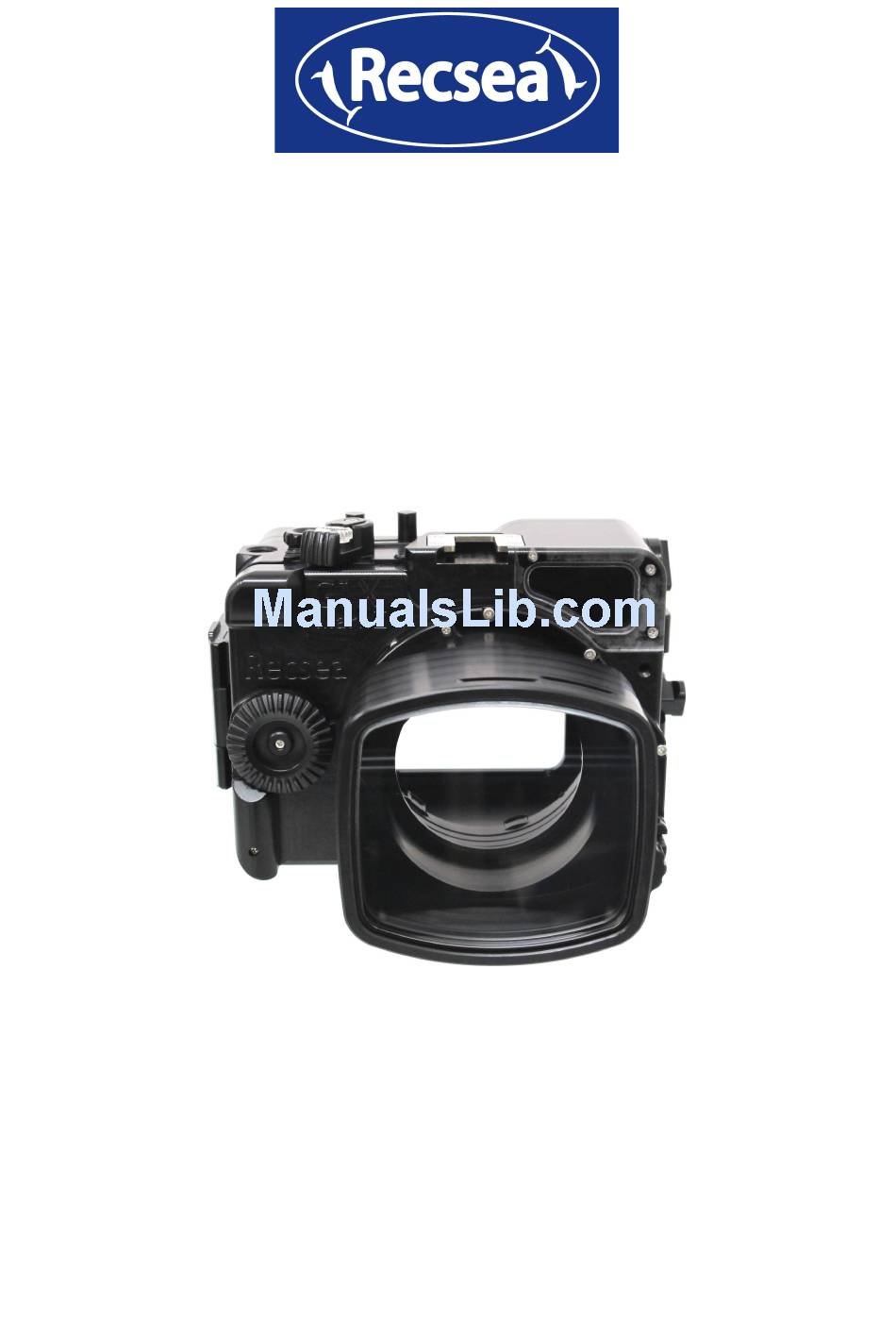

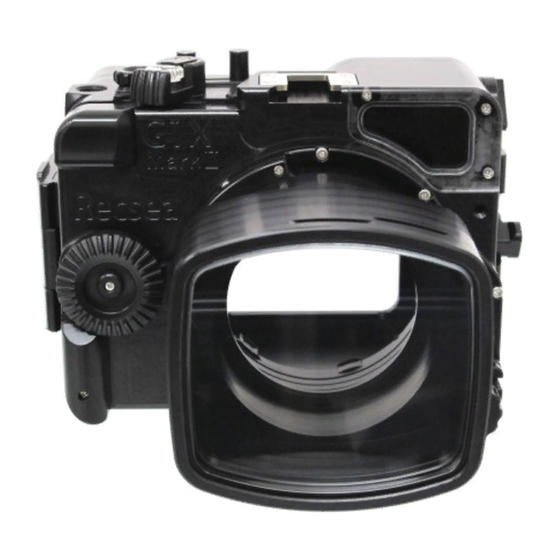

- Page 1 Canon PowerShot G1X Mark II Underwater Housing Recsea WHC-G1XMkII MANUAL Please read this manual before use. NTF CORPORATION UH Division http://www.seatool.net...
- Page 2 INTRODUCTION CANON POWERSHOT G1X Mark II Underwater Housing WHC-G1XMkII ※ Thank you for purchasing the WHC-G1xMkII Underwater Housing. ※ To ensure proper and safe use, please thoroughly read this manual. ※ Improper use may cause leakage causing irreparable damage to your digital camera.
-
Page 3: Package Contents
※ Rear Control Dial with push-button function. ※ RECSEA original Secure-Latch locking system for easy opening and closing. ※ Quality silicone O-ring with wider Back Cover contact surface for added protection at greater depths. ※ Complete camera function control. ※ Variety of supported RECSEA original options. - Page 4 Mode Dial and rear Control Dial The housing Mode Dial and rear Control Dial are designed to turn the camera dials back and forth via friction from the O-rings that come in contact with camera functions inside the housing. When installing or removing camera pull Mode Dial up. After installing be sure to place the Mode Dial contact into the proper position.
- Page 5 control wheels of the housing begin to slip, use a soft dry cloth to wipe away any oil and other contaminates that may cause the loss of friction from both the camera functions and O-rings. Flash Up Lever The housing Flash Up Lever is designed to turn the camera's flash on ONLY. When installing or removing camera pull set Flash Up Lever out and the middle position.
-
Page 6: Installing Camera
CAUTION! Due to pressurization, water on and around the closure may be sucked in at time of opening. Please be sure to wipe excess water from housing before opening. CAUTION! Before using, please be sure to test the housing (without camera) with Lens Port properly attached in bucket or aquarium if available. -
Page 7: Removing Camera
between camera and inside of housing. If camera is not inserted correctly, buttons, dials, and levers may not function properly. NOTE: The internal bezels of the housing Step Ring and Continuous Ring Dials will cause some resistance. Hold housing in both hands and use thumbs to gently press the left bottom and right top corners of the camera simultaneously to slowly and gently push camera forward into housing until camera is properly seated. - Page 8 ※ Please conduct the following operations in a clean area with low humidity and dust. CAUTION! Only use the Lens Ports intended for each this housing. Failure to use the proper Lens Port could result in image vignetting and distortion, as well as possible water leakage and/or damage to the camera.
-
Page 9: Handling Precautions
※ The Lens is manufactured using hard coat acrylic. When cleaning please take care not to scratch it. Should the Lens become scratched please send port to Seatool/Recsea for replacement. (Repair fee and return shipping will be charged at normal rates) -
Page 10: Specifications
ATTENTION! ※ When Housing is not used for long periods, remove O-rings, place them in a plastic bag to keep them free of dust and other contaminants and store in a place out of direct sunlight. Please also be careful of prolonged exposure to direct sunlight during use. The O-Rings and housing may become deformed, causing water leakage. -
Page 11: Insurance Information
※ For replacement of consumable parts such as O-Rings please contact your dealer or Seatool/Recsea. OPTIONS The following items are optional. Please contact Recsea or your local dealer if you wish to purchase. • RMMF-02 Rougan Viewfinder • ST Mount Adapter AD-CUST-G10 •... - Page 12 ※ Warranty does not cover any losses resulting from any malfunction of this product, including those related to lost profits or any related expenses. ※ Seatool/Recsea will stock parts necessary for repair for five (5) years from stop of production.
- Page 13 MEMO...
- Page 14 MEMO...
- Page 15 MEMO...
-
Page 16: Warranty Information
Dealer Name Serial Number ※Dealer: Stamp your company name and contact information, purchase date, model and serial number. Seatool/Recsea Manufacturing & Sales NTF CORPORATION UH Division 390-1 Mii, Midori-Ku, Sagamihara-Shi Kanagawa 252-0151, Japan T: +81 (0)50-7541-0294 F: +81 (0)42-780-5720...
