Summary of Contents for Recsea WHS-RX100Mk II

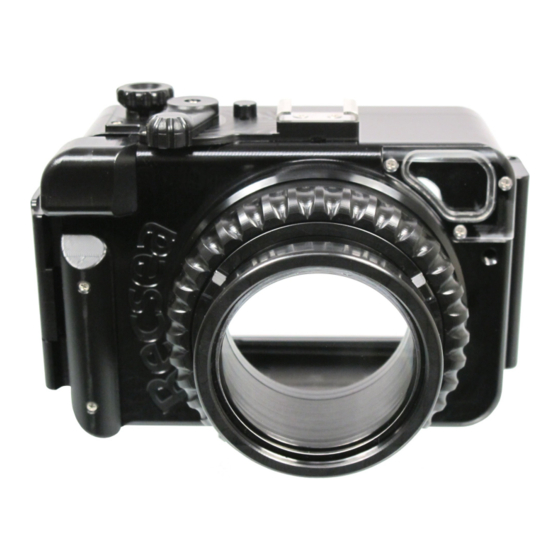

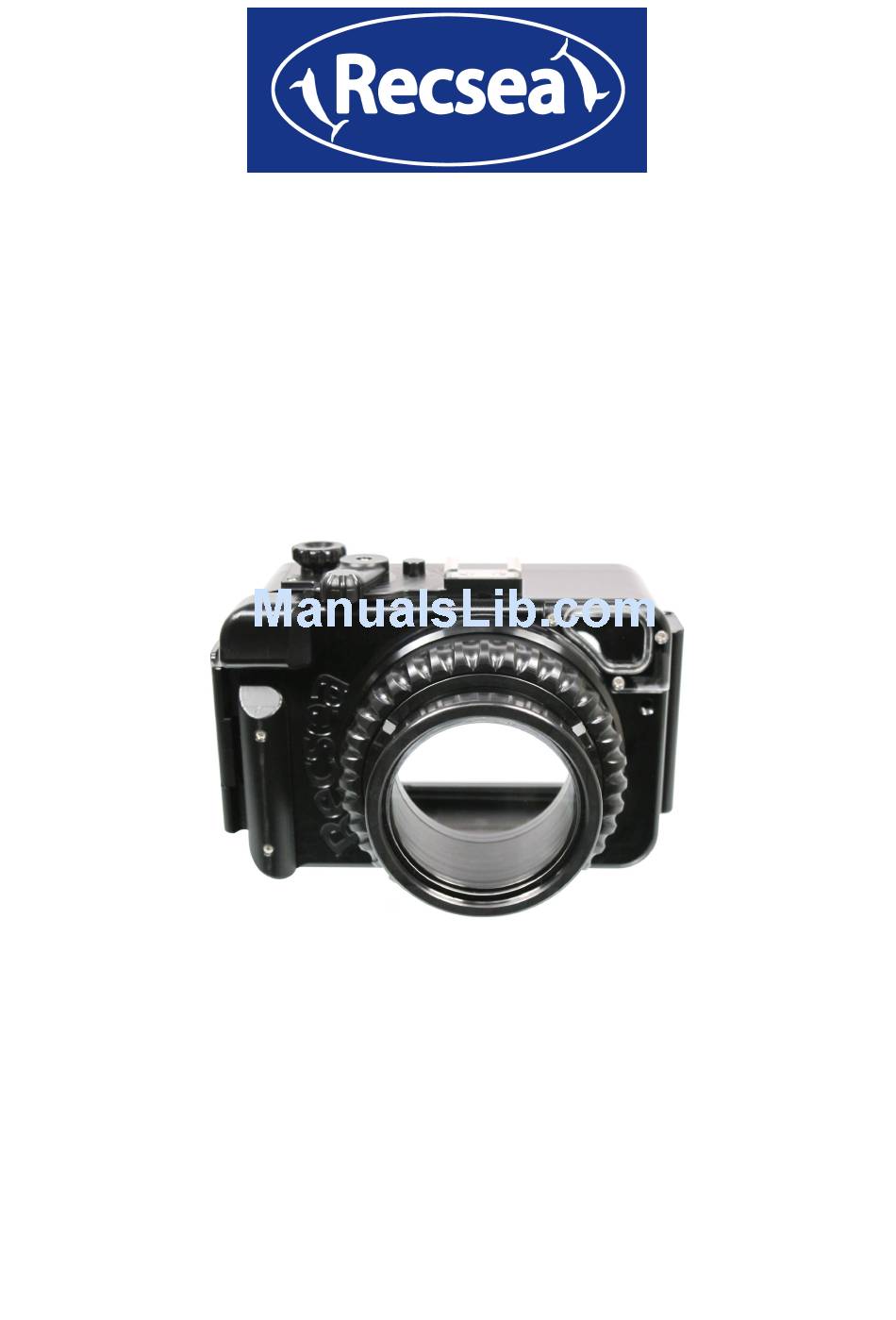

- Page 1 SONY CYBER-SHOT DSC- RX100II Waterproof Housing Recsea WHS-RX100Mk II MANUAL Please read this manual before use. NTF CORPORATION UH Division http://www.seatool.net...
-
Page 2: Features Of This Product
INTRODUCTION SONY CYBER-SHOT DSC-RX100II Waterproof Housing WHS-RX100Mk II ※ Thank you for purchasing the WHS-RX100Mk II Waterproof Housing. ※ To ensure proper and safe use, please thoroughly read this manual. ※ Improper use may cause leakage causing irreparable damage to your digital camera. - Page 3 PACKAGE CONTENTS Be sure all items listed here were included with your housing: ・Housing ・Diffuser ・Strobe Mask-External Strobe ・Hand Strap ・O-ring Removal Pick Connection Mount x 2 and Screw ・Reserve O-ring ・O-ring Grease GETTING TO KNOW YOUR WHS-RX100Mk II HOUSING...
-
Page 4: Warranty Information
※Dealer: Stamp your company name and contact information, purchase date, model and serial number. Recsea/Seatool Manufacturing & Sales NTF CORPORATION UH Division 390-1 Mii, Midori-Ku, Sagamihara-Shi Kanagawa 252-0151, Japan T: +81 (0)50-7541-0294 F: +81 (0)42-780-5720 http://www.seatool.net E-mail: info@seatool.net... - Page 5 ATTENTION! ※ The housing Mode Dial is designed to turn the camera's mode dial back and forth via friction from the o-ring that comes in contact with the mode dial inside the housing. When installing or removing camera pull Mode Dial up. When installing be sure to place the Dial contact in the proper position.
- Page 6 4. Using fresh water and a soft toothbrush, gently clean Control Ring Dial, Dial Locking Ring, Dial Locking Ring Grooves at base of Lens Port and Control Ring Gear as needed. NOTE: The Control Ring Gear can be easily turned to the left or right using a fingernail. Do not use screw driver or other metal object as they may damage the gear.
-
Page 7: Installing Camera
To OPEN, press Lock Lever while pulling Secure-Latch away from housing main body. To CLOSE, press Secure-Latch into place making sure the latch on the underside is properly placed in the Secure-Latch groove attached to the main housing body. Push into the locked position. -
Page 8: Maintenance
※Two (2) screw holes are provided at the bottom of the housing for use in attaching Seatool/Recsea genuine tray and grip assemblies. CAUTION! Seatool/Recsea STRONGLY recommends the use of Seatool/Recsea genuine tray and grip assemblies listed below under OPTIONS. Leakage or damages due to the use of non-genuine options are NOT covered under warranty. -
Page 9: Specifications
1. Using the O-ring Removal Pick, remove O-ring. 2. Clean sand, salt, other contaminants and old grease from O-ring. 3. Clean O-ring groove and O-ring Contact Surface using a clean cotton swab. 4. Visually and physically check O-ring by running it through finger tips, feeling for cuts, cracks or any other defects that may cause leakage. -
Page 10: Insurance Information
※ For replacement of consumable parts such as O-rings please contact your dealer or Seatool/Recsea. OPTIONS The following items are optional. Please contact Seatool/Recsea or your local dealer if you wish to purchase. ・ST Mount Adapter AD-ST-RX100 (Bayonet Quick Mount) ・M52-DTP Mount Adapter DTP-04/52- RX100... - Page 11 ※ Warranty does not cover any losses resulting from inoperability of this product, including those related to lost profits or any related expenses. ※ Seatool/Recsea will stock parts necessary for repair for five (5) years from stop of production. ※This product uses some degradable parts, such as buttons and O-rings. Seatool/Recsea recommends overhauling the housing once per year, more frequently if used often.
- Page 12 MEMO...
