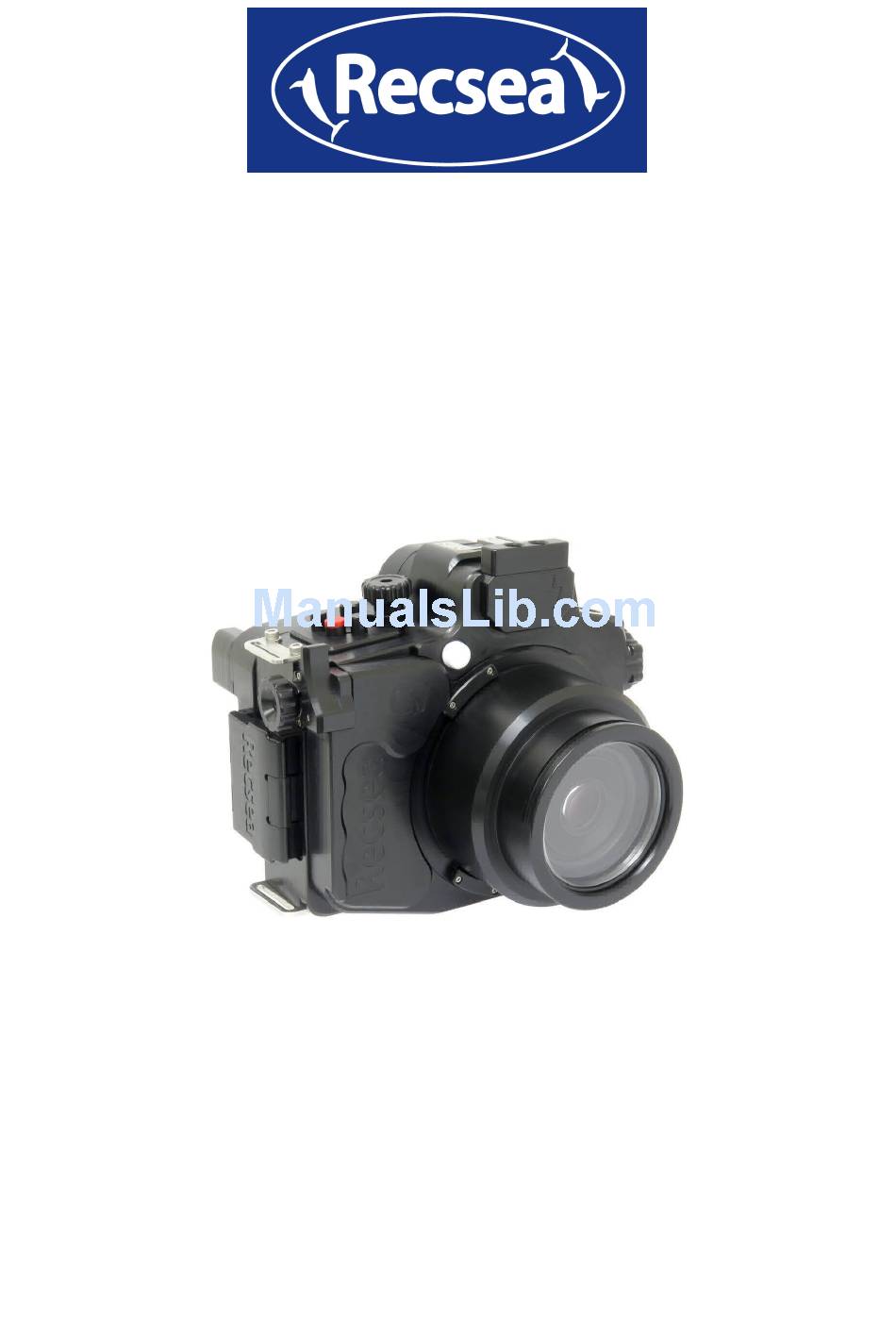

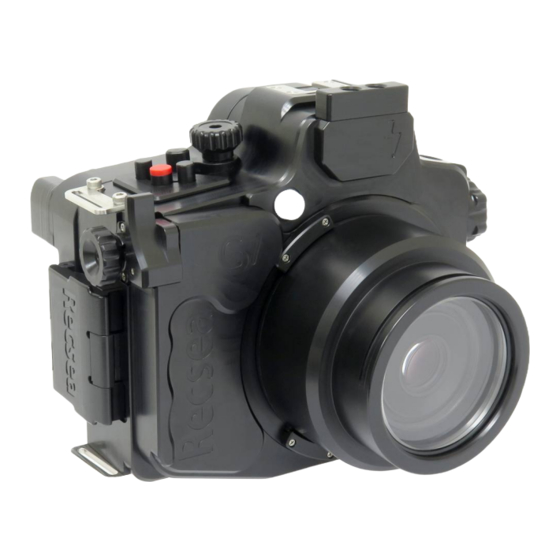

- Page 1 PANASONIC LUMIX DMC-G7 Underwater Housing Recsea RDH-PG7 MANUAL Please read this manual before use. NTF CORPORATION UH Division http://www.seatool.net...
-
Page 2: Features Of This Product
※ Please check, and test the housing according to this manual prior to use. ※ Neither NTF Corporation, SEATOOL/RECSEA nor their agents shall warrant or bear any responsibility for any incident related to water leakage, damage or loss of data, unauthorized modification, disassembly and repair;... -
Page 3: Package Contents
・O-ring Removal Pick ・O-ring Grease Connection Mount and Screw ・Reserve O-rings (1 Back Cover, 1 Housing Port) GETTING TO KNOW YOUR RDH-PG7 UNDERWATER HOUSING ※ Front Dial - Use to turn camera front dial. ※ Shutter Trigger - Use to press camera shutter button. - Page 4 INON 45° Viewfinder Unit. ※ Flash Close Lever - Use to close camera flash. ※ Optional RAV-S1-PG7 - Optional RECSEA Airlock Vacuum System. ※ ON/OFF Switch - Use to turn camera ON and OFF. ※ Focus Mode Lever - Use to set camera focus mode.
- Page 5 ※ Conduct the following operations in a clean area with low humidity and dust. ※ Perform proper Lens Port O-ring, Housing Port O-ring and contact surfaces maintenance prior to installation. ※ Your RDH-PG7 can be used with a variety of optional Lens Ports that are compatible with a variety of lenses. CAUTION! Only use the proper Lens Port intended for each lens.
-
Page 6: Installing Camera
1. Place Lens Port over Housing Port with Lens Port Lock Tab aligned with housing Lens Port Lock Tab Groove just below the Lens Port Release Button. Make sure Lens Port is resting horizontally even on the Housing Port with a uniform gap and push Lens Port straight down into Housing Port seating it fully. - Page 7 6. Carefully place camera into housing main body (Camera Tray attached) lining up the Camera Tray Posts with the grooves on the Camera Tray and slowly push forward into the housing until it stops. IMPORTANT NOTE! If installing with lens and zoom or focus gear attached, turn Zoom/Focus Dial slightly to actuate the gear.
-
Page 8: Removing Camera
INTERNAL AND EXTERNAL STROBE ※ Accessory Shoe can be used for installation of target lights. Be mindful of the weight of the light. For heavy lights and strobes use SEATOOL/RECSEA optional Grip & Tray Assembly and compatible connector. CAUTION! Damage is irreparable. -
Page 9: Maintenance
※ Two (2) tripod sockets are provided at the bottom of the housing for use in attaching optional grip and tray assemblies. CAUTION! Seatool/Recsea STRONGLY recommends the use of Seatool/Recsea genuine grip and tray assemblies listed under OPTIONS. Leakage or damages due to the use of non- genuine options are NOT covered under warranty. - Page 10 ※ O-RING GREASING & MAINTENANCE ( 1) CAUTION! This housing uses three (3) O-rings, one (1) Back Cover O-ring, one (1) Housing Port O-ring, and one (1) Lens Port O-ring as shown below. Please be sure to install the correct O-ring in the proper place. Failure to do so will result in water leakage. 1.
-
Page 11: Specifications
※ For replacement of consumable parts such as O-rings please contact your dealer or Seatool/Recsea. OPTIONS The following items are optional. Please contact Seatool/Recsea or your local dealer if you wish to purchase. ・RECSEA Airlock Vacuum System RAV-S1-PG7 ・INON 45° Viewfinder Unit... - Page 12 ・Single Grip & Tray Assembly STG-05L2VL (AL) ・Dual Grip & Tray Assembly STG-05WLH (AL) ・INON Tray Adapter ADT-1S ・Ball Joint Base SBB-M10 ・RDH-PG7 Housing O-ring Set ・RDH-PG7 Lens Port O-ring ・Seatool O-ring Grease 3ml Tube ・ST Close-Up 50mm Lens x1 SAL-01-ST ・ST Close-Up 50mm Lens x2 SAL-02-ST...
- Page 13 ※ Warranty does not cover any losses resulting from any malfunction of this product, including those related to lost profits or any related expenses. ※ Seatool/Recsea will stock parts necessary for repair for five (5) years from stop of production.
- Page 14 MEMO MEMO...
- Page 15 MEMO MEMO...
-
Page 16: Warranty Information
※Dealer: Stamp your company name and contact information, purchase date, model and serial number. Recsea/Seatool Manufacturing & Sales NTF CORPORATION UH Division 390-1 Mii, Midori-Ku, Sagamihara-Shi Kanagawa 252-0151, Japan T: +81 (0)50-7541-0294 F: +81 (0)42-780-5720 http://www.seatool.net E-mail: info@seatool.net...
