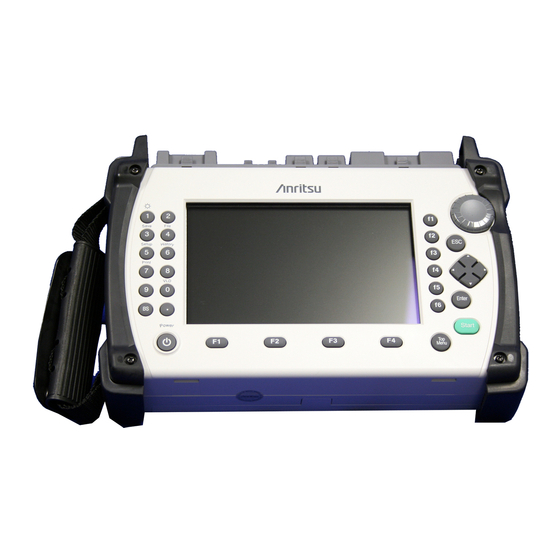

Anritsu MT9083B2 Product Brochure

Anritsu MT9083B2 Product Brochure

850/1300 nm otdr for multimode fiber 1310/1490/1550/1625/1650 nm otdr for single mode fiber
Hide thumbs Also See for MT9083B2:

Advertisement

Quick Links

Product Brochure
MT9083 Series
MT9083A2/B2/C2 ACCESS Master™
850/1300 nm OTDR for Multimode Fiber
1310/1490/1550/1625/1650 nm OTDR for Single Mode Fiber

Advertisement

loading
Need help?

Need help?

Do you have a question about the MT9083B2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Anritsu MT9083B2

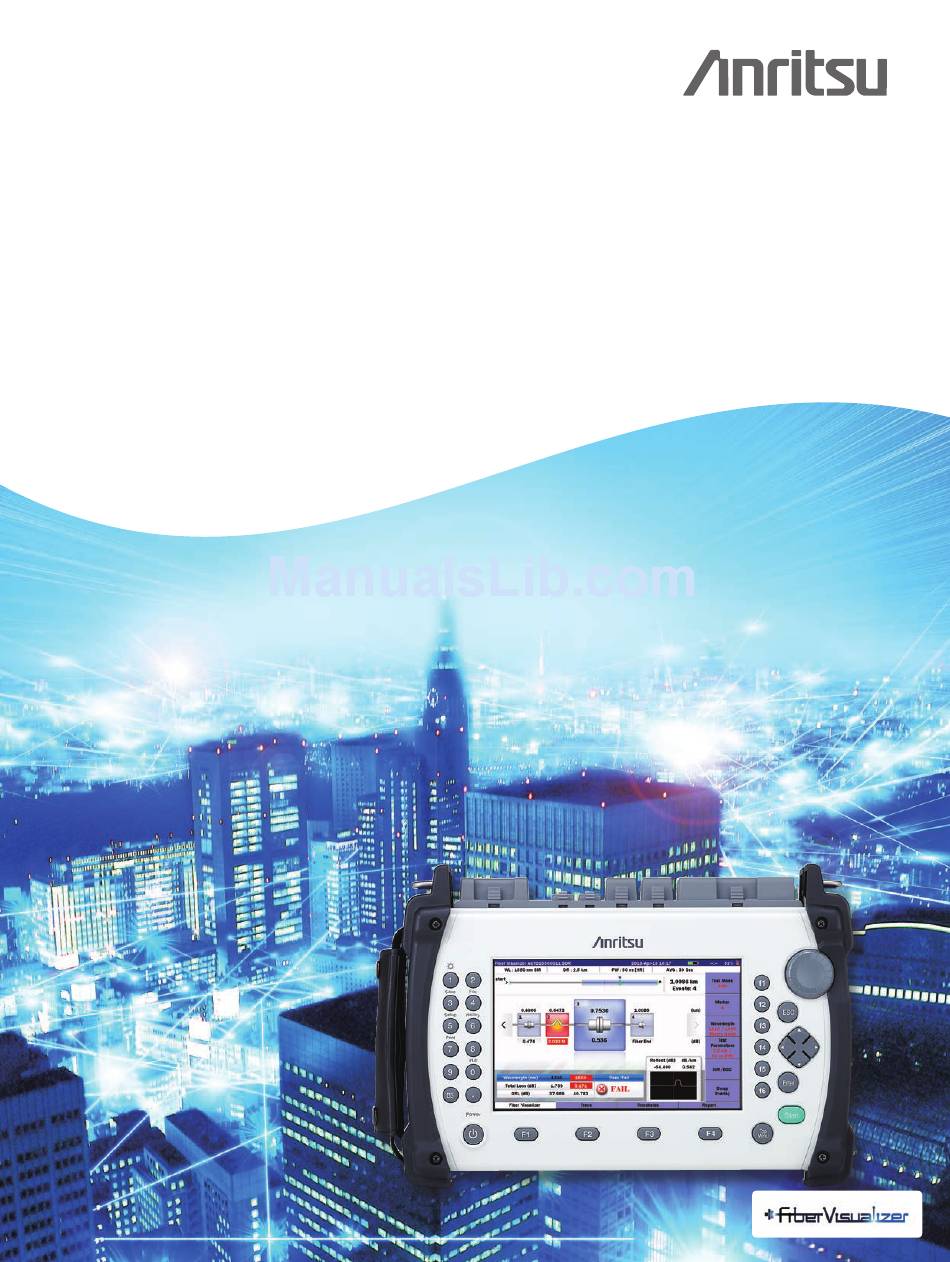

  • Page 1 Product Brochure MT9083 Series MT9083A2/B2/C2 ACCESS Master™ 850/1300 nm OTDR for Multimode Fiber 1310/1490/1550/1625/1650 nm OTDR for Single Mode Fiber...
  • Page 2 • Bluetooth, Wi-Fi and Ethernet connectivity : These features use an USB Ethernet converter, USB Wi-Fi dongle, or USB Bluetooth dongle. wordmark and logos are owned by the Bluetooth SIG, Inc. and any use of Such marks by Anritsu is under license. ®...
  • Page 3 New Feature Highlight Anritsu is now pleased to announce the enhanced MT9083A2/B2/C2 models. The ACCESS Master MT9083x2 now features a 7-inch widescreen TFT-LCD display for use both indoors and outdoors, enhanced battery operation time (up to 12 hours), increased operating temperature range (–10° to +50°C) and new short-cut function keys.
  • Page 4 When buying products, you tend to choose ones that are innovative and from established companies. When you need to install and maintain optical networks, this should also apply. With over 50 years of combined OTDR design, Anritsu, delivers the features that matter.
  • Page 5 Compact, Light Weight and All-in-one With its versatile built-in functions, the ACCESS Master offers the ideal solution for efficient optical fiber construction and maintenance. All-in-one Test Set The MT9083 delivers full featured OTDR performance plus loss test set and quality of service measurement in a surprisingly small and lightweight package.
  • Page 6 Exceptional OTDR Performance from the World’s First OTDR Manufacturer Evaluation of access networks ranging from a few kilometers to metro networks reaching up to 100 km in length is becoming commonplace, requiring OTDRs to have the performance and functions for evaluating both short and long fibers. Designed with this in mind, the ACCESS Master delivers on both fronts.
  • Page 7 Solutions for Various Measurement Needs Products that offer many features are often complicated to use. The ACCESS Master however, simplifies operation by offering task-specific testing modes that automate testing and guide novice users. Dedicated testing modes are available for fault location, cable installation, loss budget testing, and visual fault location.
  • Page 8 A True All-in-One Tester An OTDR, Optical Power Meter, and Visible Light Source are built into Anritsu’s compact, light-weight MT9083 supporting tasks ranging from searching for faults in optical fibers to QoS evaluation to FTTx troubleshooting with just one unit.
  • Page 9: Specifications

    User selectable (English, Simplified Chinese, Traditional Chinese, French, German, Italian, Korean, Portuguese, Russian, Languages Spanish and Swedish - contact Anritsu for availability of others) Sampling Points Normal: 5001, High density: 20001 or 25001, Very high density: 100,001 or 150,001 Sampling Resolution 5 cm (min.)
  • Page 10 10/125 μm ≤80 cm (typ.) 46/46/44 dB 10000, 20000 ns 1310/1550/1625 nm ITU-T G.652 MT9083C2-057 ≤3.8/4.3/4.8 m  25/25/23 dB ±25 nm (Pulse width: 100 ns) MT9083B2 Deadzone HR/ER Deadzone Options Wavelength Fiber Type Pulse Width Dynamic Range (Fresnel) (Backscatter) Mode (IOR = 1.500000)
  • Page 11 Light Source Specifications – Standard on all models Stabilized Light Source (through OTDR port) Wavelength Same as OTDR ≤5 nm (1310 nm) Spectral Width ≤10 nm (850/1300/1490/1550/1625 nm) ≤3 nm (1650 nm) 850/1300/1310/1490/1550/1625 nm: ±30 nm Wavelength Accuracy 1650 nm: ±5 nm Fiber Type Same as OTDR Optical Connector...
  • Page 12 Lithium Ion secondary battery Voltage, Capacity 11.1 V, 4200 mAh Options Optical Port 53 (W) × 19 (H) × 215 (D) mm, 330 g (typ.) MT9083B2/C2-053   Dimensions and Mass 1310/1550 nm SM Charging: +5° to +30°C, ≤80%RH MT9083A2-073 ...
  • Page 13: Ordering Information

    MT9083C2-053 1310/1550 nm, SM General-purpose model for construction, maintenance and fault location MT9083C2-057 1310/1550/1625 nm, SM General-purpose plus enhanced macrobend detection at 1625 nm MT9083B2 Series (OTDR High Performance Model) Model/Order No. Wavelength Application MT9083B2-053 1310/1550 nm, SM General-purpose model for construction, maintenance and fault location...
  • Page 14 UPC Ultra Physical Contact Examples: Specify UPC Connector Specify APC Connector MT9083B2-053 with MT9083C2-053 with MT9083A2-063 with no options MT9083B2-063 with no options MT9083B2-004 MT9083C2-007 Customer can specify “SC/UPC Customer can specify “FC/UPC Customer can specify “SC/APC Configuration Customer can specify “FC/APC type for the SM OTDR”...
  • Page 15 6) Select Accessories & Replacement Items Accessories Must be added as separate, chargeable line items. Model/Order No. Description Model/Order No. Description W3644AE MT9083 Series ACCESS Master Operation Manual (CD) Battery Charger Z1632A W3634AE MT9083 Operation Manual (Hard copy) J1530A SC Plug-in Converter (UPC(P)-APC(J)) W3637AE MT9083 Quick User's Guide (Hard copy) J1531A...
  • Page 16 MT9090 Series MU909014x/15x μOTDR Module Compact OTDR for full automatic verification of optical networks, FTTH-PON, Metro and Core. MU909060A GigE Module Dedicated field test solution for installation and troubleshooting Ethernet links in the access network. MU909014x/15x MU909020A OCA Module Compact CWDM channel analyzer to verify power levels, drift and channel presence of CWDM networks. MT1000A Network Master Pro MU100010A 10G Multirate Module Installing the MU100010A in the MT1000A supports commissioning and maintenance tests of communications networks...
