Installation Guide for ConferenceSHOT 10 Enterprise-Class PTZ Conferencing Camera

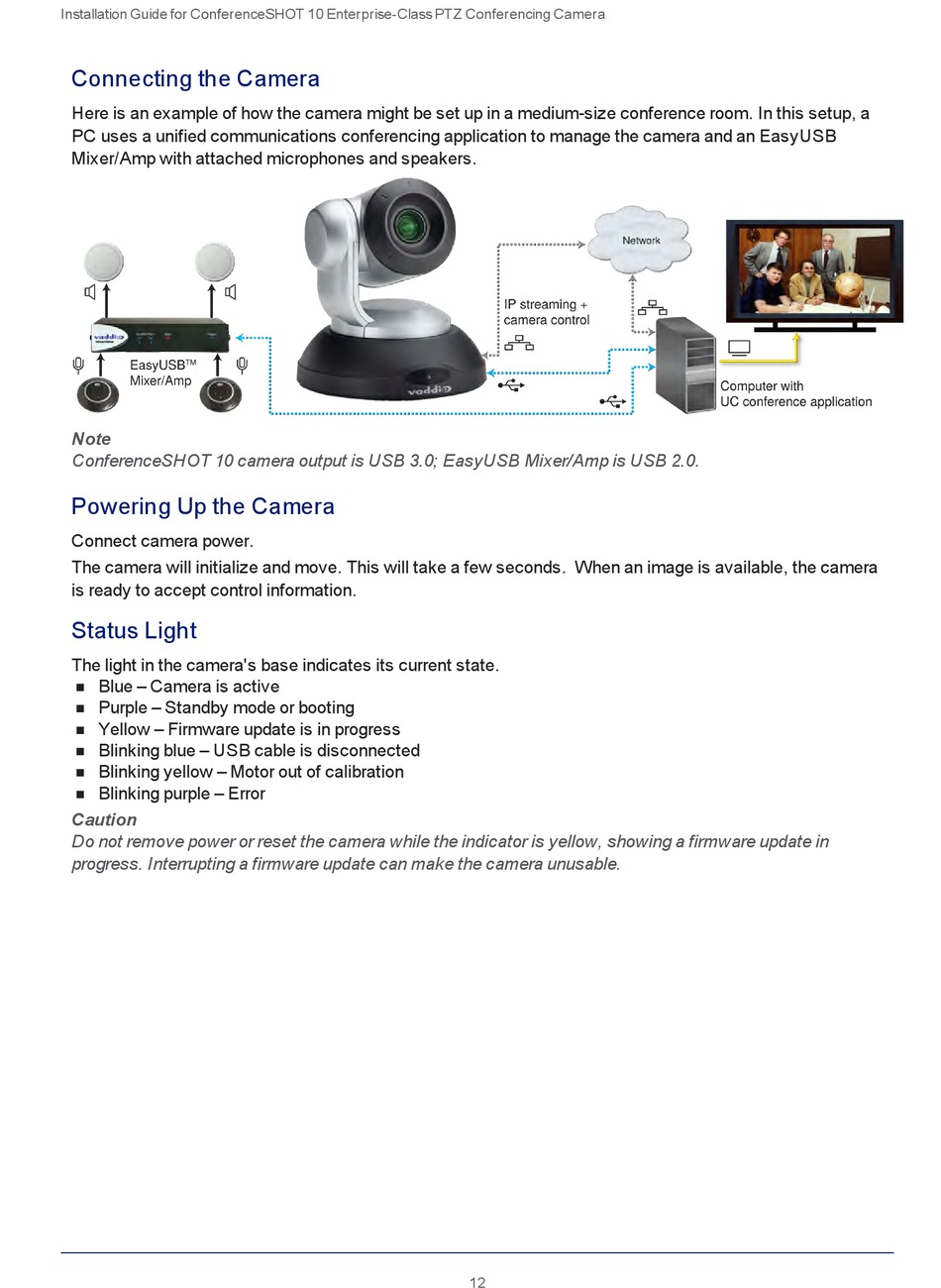

Connecting the Camera

Here is an example of how the camera might be set up in a medium-size conference room. In this setup, a
PC uses a unified communications conferencing application to manage the camera and an EasyUSB
Mixer/Amp with attached microphones and speakers.
Note
ConferenceSHOT 10 camera output is USB 3.0; EasyUSB Mixer/Amp is USB 2.0.

Powering Up the Camera

Connect camera power.
The camera will initialize and move. This will take a few seconds. When an image is available, the camera
is ready to accept control information.

Status Light

The light in the camera's base indicates its current state.
Blue – Camera is active
n
Purple – Standby mode or booting
n
Yellow – Firmware update is in progress
n
Blinking blue – USB cable is disconnected
n
Blinking yellow – Motor out of calibration
n
Blinking purple – Error
n
Caution
Do not remove power or reset the camera while the indicator is yellow, showing a firmware update in
progress. Interrupting a firmware update can make the camera unusable.
