C7Z87
USER'S MANUAL
Revision 1.0b

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C7Z87 and is the answer not in the manual?

Questions and answers

Related Manuals for Supermicro C7Z87

Summary of Contents for Supermicro C7Z87

  • Page 1 C7Z87 USER’S MANUAL Revision 1.0b...
  • Page 2 This product, including software and docu- mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

  • Page 3: About This Motherboard

    C7Z87 motherboard. About This Motherboard C7Z87 supports a single 4th Generation Intel ® Core™ i7/i5/i3 DT processor in an LGA 1150 (H3) socket. With the Intel ® Z87 Express chipset built in, the C7Z87 motherboard offers substantial enhancement in system performance and storage capability for high performance system platforms in a sleek package.

  • Page 4: Conventions Used In The Manual

    C7Z87 User’s Manual Conventions Used in the Manual: Special attention should be given to the following symbols for proper installation and to prevent damage done to the components or injury to yourself: Warning: Critical information to prevent damage to the components or injury to your- self.

  • Page 5: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 6: Table Of Contents

    C7Z87 User’s Manual Table of Contents Preface Chapter 1 Introduction Overview ......................1-1 Chipset Overview ..................1-11 Special Features ................... 1-12 PC Health Monitoring ..................1-12 ACPI Features ....................1-13 Power Supply ....................1-13 Super I/O ....................... 1-14 Chapter 2 Installation Standardized Warning Statements ..............
  • Page 7 Table of Contents Power LED ....................2-22 HDD LED ....................2-22 NIC1/NIC2 (LAN1/LAN2) ................2-23 Overheat (OH)/Fan Fail ................2-23 Reset Button ................... 2-24 Power Button ................... 2-24 Connecting Cables ..................2-25 ATX Main PWR & CPU PWR Connectors (JPW1 & JPW2) ....2-25 Fan Headers (Fan 1 ~ Fan 5) ..............
  • Page 8 C7Z87 User’s Manual Chapter 3 Troubleshooting Troubleshooting Procedures ................3-1 Technical Support Procedures ................ 3-3 Frequently Asked Questions ................3-4 Battery Removal and Installation ..............3-5 Returning Merchandise for Service..............3-6 Chapter 4 BIOS Introduction ...................... 4-1 Main Setup ...................... 4-2 Advanced Setup Configurations..............

  • Page 9: Chapter 1 Introduction

    Checklist Congratulations on purchasing your computer motherboard from an acknowledged leader in the industry. Supermicro boards are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. Please check that the following items have all been included with your motherboard.

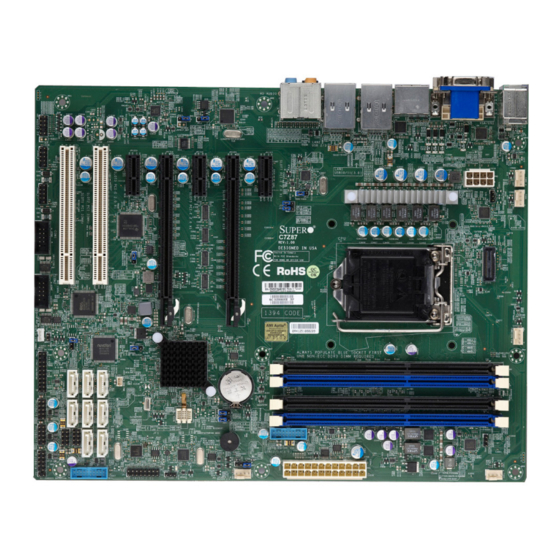

  • Page 10 C7Z87 User’s Manual C7Z87 Motherboard Image Note: All graphics shown in this manual were based upon the latest PCB Revision available at the time of publishing of the manual. The motherboard you've received may or may not look exactly the same as the graphics shown in this manual.
  • Page 11 Chapter 1: Introduction C7Z87 Motherboard Layout JPAC1 JPL2 HDMI/DP VGA/DVI HD AUDIO AUDIO FP USB 0/1 JSPDIF_OUT LAN2 LAN1 USB 2/3 JHD_AC1 USB10/11(3.0) JPW2 FAN5 JPL1 JVR1 JI2C1 FAN4 JI2C2 C7Z87 Rev. 1.01 JPI1 BAR CODE LV33 MAC CODE 1394 CODE...
  • Page 12 C7Z87 User’s Manual C7Z87 Motherboard Quick Layout JPAC1 JPL2 HDMI/DP VGA/DVI HD AUDIO AUDIO FP USB 0/1 JSPDIF_OUT LAN2 LAN1 USB 2/3 JHD_AC1 USB10/11(3.0) FAN5 JPW2 JPL1 JVR1 JI2C1 FAN4 JI2C2 C7Z87 Rev. 1.01 JPI1 BAR CODE LV33 MAC CODE...
  • Page 13 Chapter 1: Introduction C7Z87 Headers/Connectors Connector Description 1394_1/2 1394 Connectors 1/2 Audio FP Front Panel Audio Header HD AUDIO High-Definition Audio Connectors (on the I/O back panel) Battery Onboard Battery COM1/COM2 COM1/COM2 Port Headers Fan1~Fan5 System/CPU Fan Headers (Fan1: CPU Fan)
  • Page 14 C7Z87 User’s Manual USB 10/11 Backpanel USB 3.0 Ports 10/11 USB 4/5, USB 6/7, USB 8/9 Front Panel Accessible USB 2.0 Headers 4/5, 6/7, 8/9 USB 3.0 12/13, 14/15 Front Panel Accessible USB 3.0 Headers 12/13, 14/15 VGA/DVI Backpanel VGA and DVI (Digital Video Interface) Connections...

  • Page 15: Motherboard Features

    Chapter 1: Introduction Motherboard Features Single 4th Generation Intel® Core™ i7/i5/i3 DT processor in an LGA1150 socket. Note: This motherboard also supports an Intel ® Xeon E3-1200 V3 processor. E3-1200 processor support is an added benefit pro- vided by SMC. It is out of specs and out of warranty;...
  • Page 16 C7Z87 User’s Manual Six (6) Front Accessible USB 2.0 ports on three headers (USB 4/5, 6/7, 8/9), Four (2) Front Accessible USB 3.0 ports on two headers (USB 12/13, 14/15) Keyboard/Mouse One shared PS/2 Keyboard/Mouse port on the I/O backpanel...
  • Page 17 Chapter 1: Introduction System Management PECI (Platform Environment Configuration Interface) 2.0 support System resource alert via SuperDoctor ® III SuperDoctor ® III, Watch Dog Chassis Intrusion header and detection CD Utilities BIOS flash upgrade utility (Gift Box) Drivers and software for Intel ® Z87 Express chipset utili- ties Other ROHS 6/6 (Full Compliance, Lead Free)

  • Page 18: System Block Diagram

    C7Z87 User’s Manual C7Z87 Block Diagram PCIe3.0_x16 PCIe x16 SLOT #6 VRD12.5 8.0GT/s SVID PCIe3.0_x8 VRM 12.5 8.0GT/s INTEL LGA1150 ASMedia Switch PCIe3.0_x8 PCIe3.0_x8 ASM1480 8.0GT/s 8.0GT/s (Socket-H3) DDR3 (CHA) DIMM1A (Blue) Display Port DIMM1B (Black) 1600/1333/1066MHz PCIe x8 SLOT #4...

  • Page 19: Chipset Overview

    Chapter 1: Introduction Chipset Overview The C7Z87 supports a single 4th Generation Intel ® Core i7/i5/i3 DT processor in the LGA 1150 Socket. Built upon the functionality and the capability of the Z87 Express chipset, the motherboard provides substantial enhancement to system performance and storage capability for high performance platforms in a sleek package.

  • Page 20: Special Features

    C7Z87 User’s Manual Special Features Recovery from AC Power Loss Basic I/O System (BIOS) provides a setting for you to determine how the system will respond when AC power is lost and then restored to the system. You can choose for the system to remain powered off, (in which case you must press the power switch to turn it back on), or for it to automatically return to a power-on state.

  • Page 21: Acpi Features

    Chapter 1: Introduction is used to notify the user of certain system events. For example, you can also configure SuperDoctor to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond predefined thresholds. ACPI Features ACPI stands for Advanced Configuration and Power Interface.

  • Page 22: Super I/O

    C7Z87 User’s Manual 2. To provide adequate power to SATA devices, please connect the SATA DOM PWR connector (JSD1) to the power supply. It is strongly recommended that you use a high quality power supply that meets ATX power supply Specification 2.02 or above. It must also be SSI compliant. (For more information, please refer to the web site at http://www.ssiforum.org/).

  • Page 23: Chapter 2 Installation

    The following statements are industry-standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assis- tance. Only certified technicians should attempt to install or configure components.
  • Page 24 C7Z87 User’s Manual Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta. Re- emplazar la batería exclusivamente con el mismo tipo o el equivalente recomen-...

  • Page 25: Product Disposal

    Chapter 2: Installation Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要が あり ます。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

  • Page 26: Static-Sensitive Devices

    C7Z87 User’s Manual ‫القىانين واللىائح الىطنية‬ ‫جميع‬ ‫وفقا ل‬ ‫ينبغي التعامل معه‬ ‫هذا المنتج‬ ‫من‬ ‫التخلص النهائي‬ ‫عند‬ 경고! 이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다. Waarschuwing De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen.

  • Page 27: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. Installing the LGA1150 Processor 1. Gently press down the load plate handle and push it outward (to the right side) to unlock it.
  • Page 28 C7Z87 User’s Manual 3. Once the load plate is open, use your thumb and your index finger to hold the CPU at the north center edge and the south center edge of the CPU. North Center Edge South Center Edge 4.
  • Page 29 Chapter 2: Installation 7. Once the CPU is properly installed, use your thumb to gently push the load plate handle down to the handle lock and lock it. CPU properly installed Load Plate Handle is locked into place 8. When the CPU is securely locked into the CPU socket, the plastic cap will be automatically loosened from the load plate.

  • Page 30: Installing A Passive Cpu Heatsink

    C7Z87 User’s Manual Installing a Passive CPU Heatsink 1. Do not apply thermal grease to the heatsink or the CPU die; the required amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the motherboard and the underlying heatsink bracket.

  • Page 31: Removing The Heatsink

    Chapter 2: Installation Removing the Heatsink Warning: We do not recommend that the CPU or the heatsink be removed. However, if you do need to uninstall the heatsink, please follow the instructions below to remove the heatsink to avoid damaging the CPU or the CPU socket. 1.

  • Page 32: Installing Ddr3 Memory

    C7Z87 User’s Manual Installing DDR3 Memory Note: Check the Supermicro website for recommended memory mod- ules. CAUTION Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. DIMM Installation JPAC1 JPL2 HDMI/DP VGA/DVI HD AUDIO AUDIO FP USB 0/1 1.

  • Page 33: Removing Memory Modules

    Channel B, Slot 2 (Blue Slot) Towards the edge of the motherboard The C7Z87 supports up to 32GB of Unbuffered (UDIMM) DDR3 Non-ECC 1066MH z/1333MHz/1600MHz/2133MHz(*OC)/2200MHz(*OC)/2400MHz(*OC)/2600MHz( *OC)/2800MHz(*OC)/3000MHz(*OC) in 4 memory slots. Populating these DIMM modules with a pair of memory modules of the same type and same size will result in interleaved memory, which will improve memory performance.
  • Page 34 C7Z87 User’s Manual • Due to memory allocation to system devices, the amount of memory that remains available for operational use will be reduced when 4 GB of RAM is used. The reduction in memory availability is disproportional. See the following table for details.

  • Page 35: Motherboard Installation

    USB 0/1 JSPDIF_OUT LAN2 LAN1 USB 2/3 JHD_AC1 USB10/11(3.0) JPW2 FAN5 JPL1 JVR1 JI2C1 FAN4 JI2C2 C7Z87 Rev. 1.01 JPI1 BAR CODE LV33 MAC CODE 1394 CODE BIOS JWOR1 FAN1 JWD1 LICENSE JPME2 Always populate blue sockets first; Unbuffered ECC/non-ECC DDR3 DIMM required...

  • Page 36: Installing The Motherboard

    C7Z87 User’s Manual Installing the Motherboard 1. Install the I/O shield into the back of the chassis. 2. Locate the mounting holes on the motherboard. (See the previous page.) 3. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

  • Page 37: Connectors/Io Ports

    USB 0/1 JSPDIF_OUT LAN2 LAN1 USB 2/3 JHD_AC1 USB10/11(3.0) JPW2 FAN5 JPL1 JVR1 JI2C1 FAN4 JI2C2 C7Z87 Rev. 1.01 JPI1 BAR CODE LV33 MAC CODE 1394 CODE BIOS JWOR1 FAN1 JWD1 LICENSE JPME2 Always populate blue sockets first; Unbuffered ECC/non-ECC DDR3 DIMM required...

  • Page 38: Atx Ps/2 Keyboard/Mouse Ports

    C7Z87 User’s Manual ATX PS/2 Keyboard/Mouse PS/2 Keyboard/Mouse Pin Ports Definitions PS2 Keyboard PS2 Mouse The ATX PS/2 keyboard and Pin# Definition Pin# Definition PS/2 mouse are located above KB Data Mouse Data Back Panel USB Ports 8/9 on No Connection No Connection the motherboard.

  • Page 39: Universal Serial Bus (Usb)

    USB 0/1 JSPDIF_OUT LAN2 LAN1 USB 2/3 JHD_AC1 USB10/11(3.0) JPW2 FAN5 JPL1 JVR1 JI2C1 FAN4 JI2C2 C7Z87 Rev. 1.01 JPI1 BAR CODE LV33 MAC CODE 1394 CODE BIOS JWOR1 FAN1 JWD1 LICENSE JPME2 Always populate blue sockets first; Unbuffered ECC/non-ECC DDR3 DIMM required...

  • Page 40: Ethernet Ports

    C7Z87 User’s Manual Ethernet Ports LAN Ports Pin Definition Two Gigabit Ethernet ports (LAN1/ Pin# Definition LAN2) are located next to the P2V5SB SGND HD Audio Connector on the I/O TD0+ Act LED Backpanel to provide network con- TD0- P3V3SB nections.

  • Page 41: Front Accessible Audio Header

    USB 0/1 JSPDIF_OUT LAN2 LAN1 USB 2/3 JHD_AC1 USB10/11(3.0) JPW2 FAN5 JPL1 JVR1 JI2C1 FAN4 JI2C2 C7Z87 Rev. 1.01 JPI1 BAR CODE LV33 MAC CODE 1394 CODE JWOR1 BIOS FAN1 JWD1 LICENSE JPME2 Always populate blue sockets first; Unbuffered ECC/non-ECC DDR3 DIMM required...

  • Page 42: Vga And Dvi Connections

    C7Z87 User’s Manual VGA and DVI Connections A VGA port and a DVI connector are lo- cated next to the USB ports 0/1 on the I/O backpanel. Use these connectors for VGA/ DVI-compatible display. A. VGA Port JPAC1 JPL2 B. DVI Connector...

  • Page 43: Front Control Panel

    These connectors are designed spe- cifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators. Refer to the following section for descriptions and pin definitions.

  • Page 44: Front Control Panel Pin Definitions

    C7Z87 User’s Manual Front Control Panel Pin Definitions Power LED Power LED Pin Definitions (JF1) The Power LED connection is located Pin# Definition on pins 15 and 16 of JF1. Refer to the table on the right for pin definitions.

  • Page 45: Nic1/Nic2 (Lan1/Lan2)

    USB 2/3 Power LED JHD_AC1 USB10/11(3.0) JPW2 FAN5 HDD LED LED_Anode+ JPL1 JVR1 JI2C1 FAN4 JI2C2 LED_Anode+ NIC1 LED C7Z87 Rev. 1.01 LED_Anode+ NIC2 LED JPI1 BAR CODE LV33 OH/Fan Fail LED MAC CODE LED_Anode+ 1394 CODE JWOR1 BIOS JWD1 FAN1...

  • Page 46: Reset Button

    C7Z87 User’s Manual Reset Button The Reset Button connection is located Reset Button Pin Definitions (JF1) on pins 3 and 4 of JF1. Attach it to a Pin# Definition hardware reset switch on the computer Reset case to reset the system. Refer to the Ground table on the right for pin definitions.

  • Page 47: Connecting Cables

    USB 0/1 JSPDIF_OUT LAN2 LAN1 USB 2/3 JHD_AC1 USB10/11(3.0) JPW2 FAN5 JPL1 JVR1 JI2C1 FAN4 JI2C2 C7Z87 Rev. 1.01 JPI1 BAR CODE LV33 MAC CODE 1394 CODE BIOS JWOR1 FAN1 JWD1 LICENSE JPME2 Always populate blue sockets first; Unbuffered ECC/non-ECC DDR3 DIMM required...

  • Page 48: Fan Headers (Fan 1 ~ Fan 5)

    C7Z87 User’s Manual Fan Headers (Fan 1 ~ Fan 5) Fan Header Pin Definitions The C7Z87 has five fan headers (Fan 1~Fan 5). Pin# Definition These fans are 4-pin fan headers. Although pins Ground (Black) 1-3 of the fan headers are backward compatible 2.5A/+12V...

  • Page 49: Internal Buzzer (Sp1)

    USB 0/1 JSPDIF_OUT LAN2 LAN1 USB 2/3 JHD_AC1 USB10/11(3.0) JPW2 FAN5 JPL1 JVR1 JI2C1 FAN4 JI2C2 C7Z87 Rev. 1.01 JPI1 BAR CODE LV33 MAC CODE 1394 CODE JWOR1 BIOS FAN1 JWD1 LICENSE JPME2 Always populate blue sockets first; Unbuffered ECC/non-ECC DDR3 DIMM required...

  • Page 50: Onboard Power Led (Jled1)

    C7Z87 User’s Manual Onboard Power LED (JLED1) Onboard PWR LED Pin Definitions An onboard Power LED header is lo- Pin# Definition cated at JLED1. This Power LED header is connected to Front Control Panel No Connection located at JF1 to indicate the status of Connection to PWR system power.

  • Page 51: Dom Pwr Connector (Jsd1)

    USB 0/1 JSPDIF_OUT LAN2 LAN1 USB 2/3 JHD_AC1 USB10/11(3.0) JPW2 FAN5 JPL1 JVR1 JI2C1 FAN4 JI2C2 C7Z87 Rev. 1.01 JPI1 BAR CODE LV33 MAC CODE 1394 CODE JWOR1 BIOS FAN1 JWD1 LICENSE JPME2 Always populate blue sockets first; Unbuffered ECC/non-ECC DDR3 DIMM required...

  • Page 52: Spdif_Out (Jspdif_Out)

    C7Z87 User’s Manual SPDIF_Out (JSPDIF_OUT) SPDIF_Out Pin Definitions The SPDIF_Out (JSPDIF_OUT) is Pin# Definition used for digital audio. You will also S/PDIF_Out need the appropriate cable to use Ground these features. T-SGPIO T-SGPIO 1/2 Headers Pin Definitions Pin# Definition Definition...

  • Page 53: Tpm Header/Port 80 Header

    USB 0/1 JSPDIF_OUT LAN2 LAN1 USB 2/3 JHD_AC1 USB10/11(3.0) JPW2 FAN5 JPL1 JVR1 JI2C1 FAN4 JI2C2 C7Z87 Rev. 1.01 JPI1 BAR CODE LV33 MAC CODE 1394 CODE JWOR1 BIOS FAN1 JWD1 LICENSE JPME2 Always populate blue sockets first; Unbuffered ECC/non-ECC DDR3 DIMM required...
  • Page 54 C7Z87 User’s Manual IEEE 1394_1/1394_2 1394_1 Connectors Pin Definitions Pin# Definition Pin# Definition 1394_1 and 1394_2 provide IEEE PTPA0+ PTPA0- 1394 connections on the mother- board. Connect IEEE 1394 cables to PTPB0+ PTPB0- PWR 1394a PWR 1394a the connectors for IEEE 1394 sup- Shield GND port.

  • Page 55: Jumper Settings

    USB 0/1 JSPDIF_OUT LAN2 LAN1 USB 2/3 JHD_AC1 USB10/11(3.0) JPW2 FAN5 JPL1 JVR1 JI2C1 FAN4 JI2C2 C7Z87 Rev. 1.01 JPI1 BAR CODE LV33 MAC CODE 1394 CODE BIOS JWOR1 FAN1 JWD1 LICENSE JPME2 Always populate blue sockets first; Unbuffered ECC/non-ECC DDR3 DIMM required...

  • Page 56: Cmos Clear (Jbt1)

    C7Z87 User’s Manual CMOS Clear (JBT1) JBT1 is used to clear the saved system setup configuration stored in the CMOS chip. To clear the contents of the CMOS, completely shut down the system, remove the AC power cord and then short JBT1 with a jumper. Remove the jumper before powering on the system again.

  • Page 57: Audio Enable (Jpac1)

    USB 0/1 JSPDIF_OUT LAN2 LAN1 USB 2/3 JHD_AC1 USB10/11(3.0) JPW2 FAN5 JPL1 JVR1 JI2C1 FAN4 JI2C2 C7Z87 Rev. 1.01 JPI1 BAR CODE LV33 MAC CODE 1394 CODE JWOR1 BIOS FAN1 JWD1 LICENSE JPME2 Always populate blue sockets first; Unbuffered ECC/non-ECC DDR3 DIMM required...

  • Page 58: Watch Dog Enable/Disable

    C7Z87 User’s Manual Watch Dog Enable/Disable Watch Dog Jumper Settings Watch Dog (JWD1) is a system monitor that Jumper Setting Definition can reboot the system when a software ap- Pins 1-2 Reset (default) plication hangs. Close Pins 1-2 to reset the Pins 2-3 system if an application hangs.

  • Page 59: Manufacture Mode Select

    USB 0/1 JSPDIF_OUT LAN2 LAN1 USB 2/3 JHD_AC1 USB10/11(3.0) JPW2 FAN5 JPL1 JVR1 JI2C1 FAN4 JI2C2 C7Z87 Rev. 1.01 JPI1 BAR CODE LV33 MAC CODE 1394 CODE BIOS JWOR1 FAN1 JWD1 LICENSE JPME2 Always populate blue sockets first; Unbuffered ECC/non-ECC DDR3 DIMM required...

  • Page 60: Onboard Indicators

    C7Z87 User’s Manual Onboard Indicators LAN1 LAN2 Link LED Activity LED LAN 1/LAN 2 LEDs Two LAN ports (LAN 1/LAN 2) are located GLAN 1/2 Activity Indicator on the I/O backplane of the motherboard. LED Settings Each Ethernet LAN port has two LEDs. The...

  • Page 61: 2-10 Sata Connections

    USB 0/1 JSPDIF_OUT LAN2 LAN1 USB 2/3 JHD_AC1 USB10/11(3.0) FAN5 JPW2 JPL1 JVR1 JI2C1 FAN4 JI2C2 C7Z87 Rev. 1.01 JPI1 BAR CODE LV33 MAC CODE 1394 CODE JWOR1 BIOS FAN1 JWD1 LICENSE JPME2 Always populate blue sockets first; Unbuffered ECC/non-ECC DDR3 DIMM required...
  • Page 62 C7Z87 User’s Manual Notes 2-40...

  • Page 63: Chapter 3 Troubleshooting

    Chapter 3: Troubleshooting Chapter 3 Troubleshooting Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any hardware components.

  • Page 64: Memory Errors

    C7Z87 User’s Manual No Video 1. If the power is on, but you have no video--in this case, you will need to re- move all the add-on cards and cables first. 2. Use the speaker to determine if any beep codes exist. (Refer to Appendix A for details on beep codes.)

  • Page 65: Technical Support Procedures

    Before contacting Technical Support, please make sure that you have followed all the steps listed below. Also, Note that as a motherboard manufacturer, Supermicro does not sell directly to end users, so it is best to first check with your distributor or reseller for troubleshooting services.

  • Page 66: Frequently Asked Questions

    C7Z87 User’s Manual Frequently Asked Questions Question: What type of memory does my motherboard support? Answer: The C7Z87 supports up to 32GB of unbuffered Non-ECC DDR3 SDRAM (1.5V, 1066MHz/1333MHz/1600MHz/2133MHz(*OC)/2200MHz(*OC)/2400MHz(*O C)/2600MHz(*OC)/2800MHz(*OC)/3000MHz(*OC)). See Section 2-4 for details on installing memory. Note: *OC=Overclocking (not under warranty)

  • Page 67: Battery Removal And Installation

    USB floppy drive instead of the onboard floppy drive. For the IPMI jumper location, please check Chapter 1. Question: What is the heatsink part number for my C7Z87 motherboard? Answer: For the 1U passive heatsink, ask for SNK-P0046P (back plate is included).

  • Page 68: Returning Merchandise For Service

    You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. For faster service, you may also obtain RMA authorizations online (http://www.supermicro. com/support/rma/). When you return the motherboard to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried.

  • Page 69: Chapter 4 Bios

    BIOS Introduction This chapter describes the AMI BIOS Setup Utility for the C7Z87. The ROM BIOS is stored in a Flash EEPROM and can be easily updated. This chapter describes the basic navigation of the AMI BIOS Setup Utility setup screens.

  • Page 70: Main Setup

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential dam- ages arising from a BIOS update. If you have to update the BIOS, do not shut down or reset the system while the BIOS is updating.
  • Page 71 Day MM/DD/YYYY format. The time is entered in HH:MM:SS format. Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The following BIOS items will also be displayed: Supermicro C7Z87 Version Build Date Memory Information Total Memory This displays the total size of memory available in the system.

  • Page 72: Advanced Setup Configurations

    C7Z87 User’s Manual Advanced Setup Configurations Use the arrow keys to select Advanced Setup and press <Enter> to access the submenu items: Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Main Advanced Boot Security Save & Exit System Boot Feature Setting ...

  • Page 73: Power Configuration

    Chapter 4: AMI BIOS Wait For 'F1' If Error Select Enabled to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled. Interrupt 19 Capture Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Enabled, the BIOS ROM of the host adaptors will "capture"...
  • Page 74 C7Z87 User’s Manual • CPU Signature • Microcode Patch • Max (Maximum) CPU Speed • Min (Minimum) CPU Speed • CPU Speed • Processor Cores • Intel HT(Hyper-Threading) Technology • Intel VT-x (Virtualization) Technology • Intel SMX (Trusted Execution) Technology •...
  • Page 75 Chapter 4: AMI BIOS Active Processor Cores This feature determines how many CPU cores will be activated for each CPU. When all is selected, all cores in the CPU will be activated. (Please refer to Intel's web site for more information.) The options are All, 1, 2, and 3. Limit CPUID Maximum Select Enabled to set the maximum CPU ID value and to boot a legacy OS that cannot support processors with extended CPUID functions.
  • Page 76 C7Z87 User’s Manual EIST EIST (Enhanced Intel SpeedStep Technology) allows the system to automatically adjust processor voltage and core frequency in an effort to reduce power consump- tion and heat dissipation. Please refer to Intel’s web site for detailed information.
  • Page 77 Chapter 4: AMI BIOS 2-Core Ratio Limit (Available when "Turbo Mode" is set to Enabled) This increases (multiplies) 2 clock speeds in the CPU core in relation to the bus speed when two CPU cores are active. Press "+" or "-" on your keyboard to change the value.
  • Page 78 C7Z87 User’s Manual CPU C6 Report (Available when "CPU C States" is set to Enabled) Select Enabled to allow the BIOS to report the CPU C6 State (ACPI C3) to the operating system. During the CPU C6 State, the power to all caches is turned off.

  • Page 79: Chipset Configuration

    Chapter 4: AMI BIOS ACPI T State Select Enabled to support Advanced Configuration and Power Interface (ACPI) Throttling States (T State), which will lower the power consumption level for the system as to the power consumption level set for CPU Performance State 1 to achieve power efficiency.
  • Page 80 C7Z87 User’s Manual CPU SLOT (Available when Primary Display is set to Auto) Use this item to select the graphics device installed in an expansion slot sup- ported by the CPU to be used as the primary display. The options are Auto, SLOT6 and SLOT4.
  • Page 81 Chapter 4: AMI BIOS PCI-E Configuration This item displays the information of the (graphics) device installed on a PCI-E slot. Slot6 PCI-E 3.0 x16 Slot6 PCI-E 3.0 x16 - Gen X This feature allows the user to select PCI-E support for the device installed on Slot6.

  • Page 82: Memory Configuration

    C7Z87 User’s Manual SLOT3 PCI-E 2.0 x 1 ASPM/SLOT5 PCI-E 2.0 x 1 ASPM/SLOT7 PCI-E 2.0 x 1 ASPM This feature configures the ASPM (Active State Power Management) settings for the graphics devices installed on PCI-E 2.0 SLOT3, SLOT5, or SLOT7. The options are Disabled, L0s, L1, L0sL1 and Auto.
  • Page 83 Chapter 4: AMI BIOS Stolen Memory, and TSEG, respectively, if these devices are enabled. The op- tions are Dynamic, 1 GB, 1.25 GB, 1.5 GB, 1.75 GB, 2 GB, 2.25 GB, 2.5 GB, 2.75 GB, 3 GB and 3.25 GB. Note: TSEG is a block of memory that is only accessible by the processor while operating in System Management Mode (SMM).

  • Page 84: On Board Chip Configuration

    C7Z87 User’s Manual change should be claimed by the XHCI driver. The settings are Enabled and Disabled. EHCI Hand-Off This item is for Operating Systems that do not support Enhanced Host Controller Interface (EHCI) hand-off. When this item is enabled, EHCI ownership change will be claimed by the EHCI driver.
  • Page 85 Chapter 4: AMI BIOS SATA Mode Selection This item selects the mode for the installed SATA drives. The options are IDE, AHCI and RAID. SATA RAID Option ROM/UEFI Driver (Available if the item above - SATA Mode Select is set to AHCI or RAID) Select Enabled to use the SATA RAID Option ROM/UEFI driver for system boot.
  • Page 86 C7Z87 User’s Manual If the item above - SATA Mode Select is set to RAID, the following items are displayed: Serial ATA Port 0~ Port 5 This item displays the information detected on the installed SATA drives on the particular SATA port.
  • Page 87 Chapter 4: AMI BIOS cards palette and mimic it for proper color display. The options are Disabled and Enabled. PERR# Generation Select Enabled to allow a PCI device to generate a PERR number for a PCI Bus Signal Error Event. The options are Enabled and Disabled. SERR# Generation Select Enabled to allow a PCI device to generate an SERR number for a PCI Bus Signal Error Event.

  • Page 88: Acpi Settings

    C7Z87 User’s Manual Ipv4 PXE Support (Available when Network Stack is set to Enabled) Select Enabled to enable Ipv4 PXE (Preboot Execution Environment) for boot sup- port. If this feature is set to Disabled, Ipv4 PXE boot option will not be supported.
  • Page 89 Chapter 4: AMI BIOS Pending Operation Use this item to schedule a TPM-related operation to be performed by a security device for TPM support. The options are None, Enable Take Ownership, Disable Take Ownership, and TPM Clear. Note: The computer will reboot to carry out a pending TPM operation and change TPM state for a TPM device.
  • Page 90 C7Z87 User’s Manual Performance Tuning Mode (Available when both XMP  memory and an Extreme Edition CPU are installed) This item allows the user to choose the Intel Extreme Memory Profile (XMP) Speci- fication which enables DDR3 memory to operate beyond the standard JEDEC SPD specification.
  • Page 91 Chapter 4: AMI BIOS Power Limit 1 Time (Available when "Turbo Mode" is set to Enabled) This item allows the user to determine how long CPU1 should operate at the power limit set by the user for the item above. Use the number keys on your keyboard to enter the value.

  • Page 92: North Bridge Configuration

    C7Z87 User’s Manual North Bridge Configuration  The following North Bridge Configuration submenu items will display: Memory Multiplier Configuration Performance Memory Profiles Use this feature to set Performance Memory Profiles which may cause impacts on memory behaviors due to different sizes of memory used in the system.
  • Page 93 Chapter 4: AMI BIOS Overclocking RING Option  The following Overclocking RING Option submenu items will display: RING Adaptive Voltage Target (mV) Use this feature to set the RING Adaptive Voltage Target(mV) value from 0mV to 2000mV. Enter 0 to use the manufacture default value. RING Voltage Mode Use this feature to select the CPU RING Voltage mode.
  • Page 94 C7Z87 User’s Manual Overclocking GT Option  The following Overclocking GT Option submenu items will display: GT Adaptive Voltage Target (mV) Use this feature to set the GT Adaptive voltage Target(mV) value from 0mV to 2000mV. Enter 0 to use the manufacture default value.

  • Page 95: Firmware Update Configuration

    Chapter 4: AMI BIOS Offset Prefix Use this feature to set the Offset value as a positive (+) number or a nega- tive (-) number. Press "+" or "-" on your keyboard to make a selection. The default setting is "+". IOD Voltage Offset (mV) Use this feature to set the IOD Voltage Offset value between -1000mV and 998mV.

  • Page 96: Super Io Configuration

    C7Z87 User’s Manual TPM Owner Status Intel TXT (LT) Support Intel TXT (Trusted Execution Technology) helps protect against software-based at- tacks to ensure security, confidentiality, and integrity of all data stored in the system. The options are Enabled and Disabled.
  • Page 97 Chapter 4: AMI BIOS CPU on-die temperature increases, the fan speed will also increase for effective system cooling. Select "Full Speed" to allow the onboard fans to run at full speed (of 100% Pulse Width Modulation Duty Cycle) for maximum cooling. This setting is recommended for special system configuration or debugging.

  • Page 98: Boot Settings

    C7Z87 User’s Manual Boot Settings Use this feature to configure Boot Settings: Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Main Advanced Boot Security Exit Sets the system boot order Set Boot Priority Boot Device [CD/DVD] 2nd Boot Device...
  • Page 99 Chapter 4: AMI BIOS  Delete Driver Option Use this feature to remove a pre-defined driver from which the system will boot during startup. The settings are [any pre-defined boot device] 4-31...

  • Page 100: Security Settings

    C7Z87 User’s Manual Security Settings This menu allows the user to configure the following security settings for the system. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Main Advanced Boot Security Exit Password Description Set Administrator Password. If ONLY the administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup.

  • Page 101: Save & Exit

    Chapter 4: AMI BIOS Save & Exit Select the Exit tab from the BIOS Setup Utility screen to enter the Exit BIOS Setup screen. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Main Advanced Boot Security Exit Exit system setup after saving the Discard Changes and Exit changes.
  • Page 102 C7Z87 User’s Manual Save As User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <En- ter>. This enables the user to save any changes to the BIOS setup for future use. Restore User Defaults To set this feature, select Restore User Defaults from the Exit menu and press <En-...

  • Page 103: Appendix A Bios Error Beep Codes

    Appendix A: POST Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue with bootup.
  • Page 104 C7Z87 User’s Manual Notes...

  • Page 105: Appendix B Software Installation Instructions

    To install these software programs and drivers, click the icons to the right of these items. (Note: To install the Windows Operating System, please refer to the instructions posted on our website at http://www.supermicro.com/ support/manuals/.) Driver/Tool Installation Display Screen Note 1.

  • Page 106: Configuring Superdoctor® Iii

    C7Z87 User’s Manual B-2 Configuring SuperDoctor III The SuperDoctor ® III program is a Web-based management tool that supports remote management capability. It includes Remote and Local Management tools. The local management tool is called the SD III Client. The SuperDoctor III program included on the CDROM that came with your motherboard allows you to monitor the environment and operations of your system.
  • Page 107 SuperDoctor® III Interface Display Screen-II (Remote Control) Note: The SuperDoctor III software and manual may be downloaded from our Website at: http://www.supermicro.com/products/accessories/software/SuperDoctorIII.cfm. For Linux, we still recommend that you use SuperDoctor II, this version is also available for download at the link above.
  • Page 108 C7Z87 User’s Manual Notes...

  • Page 109: Appendix C Uefi Bios Recovery Instructions

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you need to update the BIOS, do not shut down or reset the system while the BIOS is updating to avoid possible boot failure.
  • Page 110 Root "\" Directory of a USB device or a writeable CD/DVD. Note: If you cannot locate the "Super.ROM" file in your driver disk, visit our website at www.supermicro.com to download the BIOS image into a USB flash device and rename it "Super ROM" for BIOS recovery use.
  • Page 111 Appendix C: UEFI BIOS Recovery 6. After the process of BIOS Recovery is complete, press any key to reboot the system. 7. Using a different system, extract the BIOS package into a bootable USB flash drive. 8. When a DOS prompt appears, enter AMI.BAT BIOSname.### at the prompt. Note: Do not interrupt this process until BIOS flashing is completed.
  • Page 112 C7Z87 User’s Manual 9. After seeing the message that BIOS update is completed, unplug the AC pow- er cable from the power supply to clear CMOS, and then plug the AC power cable in the power supply again to power on the system.

  • Page 113: Appendix D Dual Boot Block

    Appendix D: Dual Boot Block Appendix D Dual Boot Block D-1 Introduction This motherboard supports the Dual Boot Block feature, which is the last-ditch mechanism to recover the BIOS boot block. This section provides an introduction to the feature. BIOS Boot Block A BIOS boot block is the minimum BIOS loader required to enable necessary hardware components for the BIOS crisis recovery flash that will update the main BIOS block.

  • Page 114: D-2 Steps To Reboot The System By Using Jumper Jbr1

    C7Z87 User’s Manual D-2 Steps to Reboot the System by Using Jumper JBR1 1. Power down the system. 2. Close pins 2-3 on Jumper JBR1, and power on the system. 3. Follow the BIOS recovery SOP listed in the previous chapter (Appendix C).
  • Page 115 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
