Description

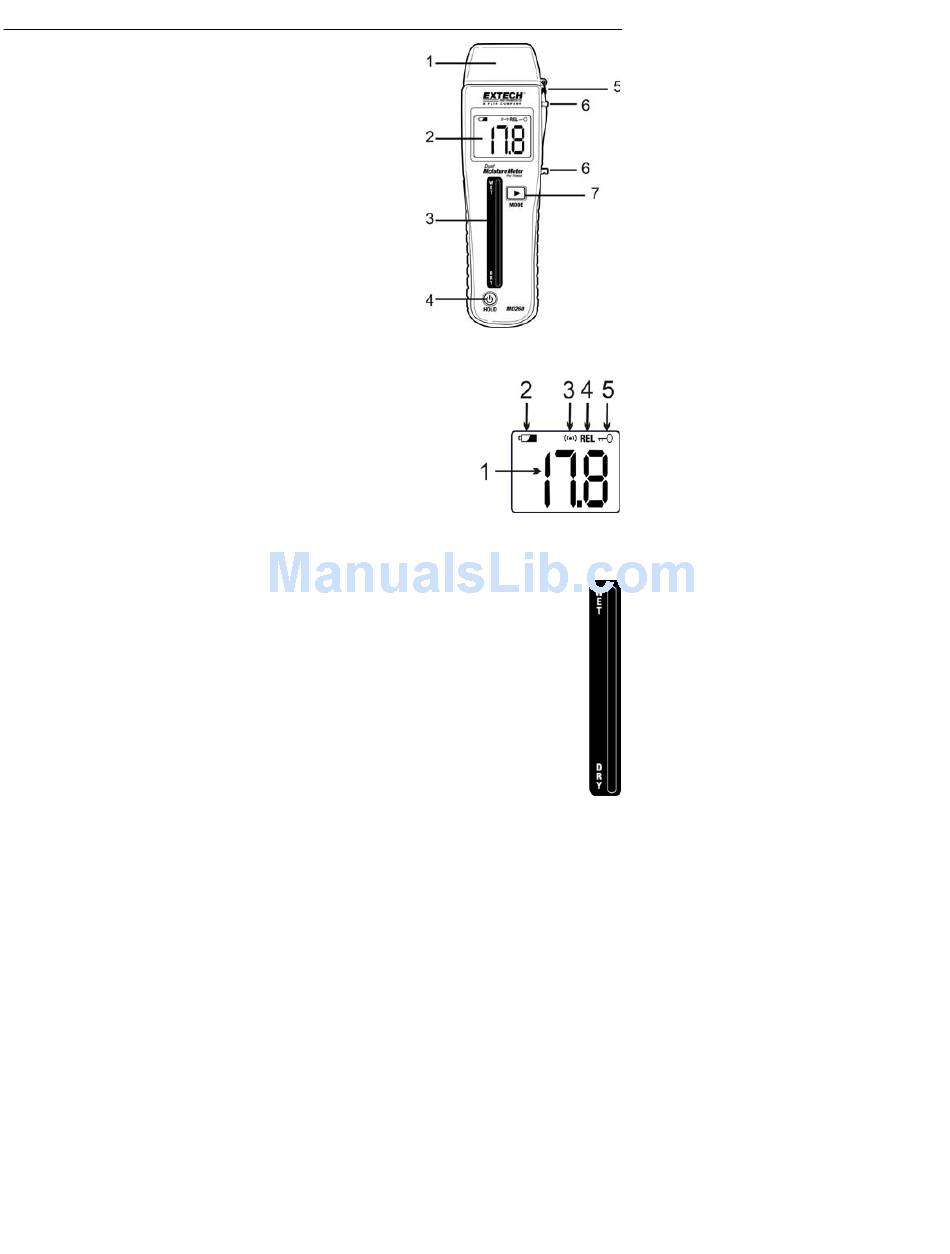

Meter Description
1. Electrode pins protective cap
2. LCD display
3. Tri-color Bargraph
4. HOLD / POWER key
5. Protective cap attachment
6. Protective cap holders
7. MODE button
Notes:
Battery/Spare Pin compartment located on the rear of the

instrument
Electrode pins located beneath the protective cap

Calibration points located at the top of protective cap

LCD Display Description
1. Measurement reading
2. Battery status
3. Audible alert icon
4. Measurement mode
5. Display HOLD icon
Bargraph Display Description
The bargraph indicates WET / DRY measurements using three LED colors: Green (for dry),
Amber (for moderate moisture), and Red (for very moist). As the reading moves up the
bargraph scale from the DRY indicator to the WET indicator, the LED color changes from
green, to amber, and then to red.
