13. Professional Tuning Software ProTuner

Introduction

This section will provide an overview of connection and basic setup instructions for Leadshine's
digital stepping Driver DM556 using the ProTuner software. These instructions will walk you
through the following steps necessary to start up your Driver and motor. This section is intended for
setting up the Driver with the ProTuner.

Software Installation

The ProTuner is windows based setup software for tuning all the Leadshine's digital Drivers includes
stepping Driver DM556. It can run in windows systems, including Win95/Win98/WindowsNT/
Windows 2000/Windows XP. And the selected PC should have 1 serial port at least for
communicating with the Driver.

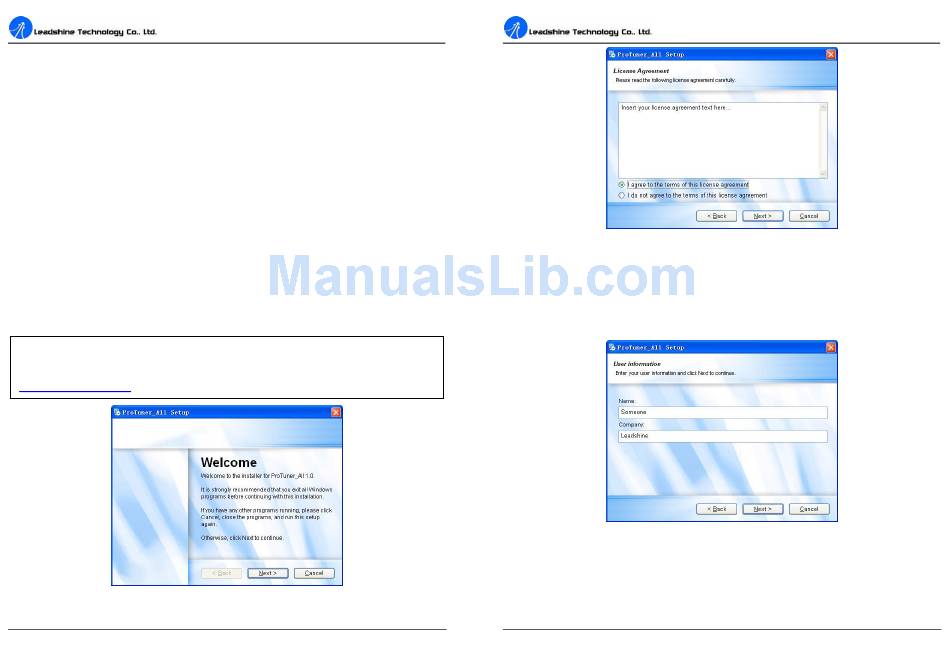

Double click "ProTuner_All_Setup_V1.0.exe" to begin installing the ProTuner. See Figure 11. Click
Next to enter the "License Agreement" window. See Figure 12.
Note: ProTuner_All_Setup_V1.0.exe can be used for all Leadshine digital drives. User can
get it from either Leadshine CD or website. Please get the latest version from
http://www.leadshine.com.
Figure 11: Begin to install the ProTuner
Tel: +000 0000-00000000
DM556 Digital Stepping Driver Manual V1.0
15
Figure 12: License agreement
Choose "I agree to the terms of this license agreement" and click Next to continue installation. The
user can enter user's information in the following window. See Figure 13. After entering the user's
information, click Next to select installation folder, where you would like to install the ProTuner. See
Figure 14.
Figure 13: User's information settings
