When sanding, remove the tool rest from the machine.
Workpieces with cracks may not be used.
Remove the chuck key or dowel pins before turning the
machine on.
Always close the belt cover.
Specifications regarding the maximum or minimum size of the
workpiece must be observed.
Test each set-up by revolving the work by hand to insure it
clears the tool rest and bed. Check setup at the lowest speed
before you increase to the operating speed.
Do not remove chips and workpiece parts until the machine is
at a standstill.
Never stop work pieces with the hand during run out.
Do not attempt to engage the spindle lock pin until the spindle
has stopped.
Never take measurements on a rotating workpiece.
Do not stand on the machine.
Connection and repair work on the electrical installation may
be carried out by a qualified electrician only.
Have a damaged or worn power cord replaced immediately.
Make all machine adjustments or maintenance with the
machine unplugged from the power source.

3.3 Remaining hazards

When using the machine according to regulations some
remaining hazards may still exist.
The rotating workpiece can cause injury.
Workpieces that are inhomogeneous or weak can explode
when being processed due to centrifugal force.
Only process selected woods without defects.
Unbalanced workpieces can be hazardous.
Injuries can occur when feeding tooling, if tool supports are
not correctly adjusted or if turning tools are blunt.
Risk of kickback. The tooling is caught by the rotating
workpiece and thrown back to the operator.
Thrown workpieces and workpiece parts can lead to injury.
Dust and noise can be health hazards. Be sure to wear
personal protection gear such as safety goggles and dust
mask. Use a suitable dust collection system.
The use of incorrect mains supply or a damaged power cord
can lead to injuries caused by electricity.

4. Machine specifications

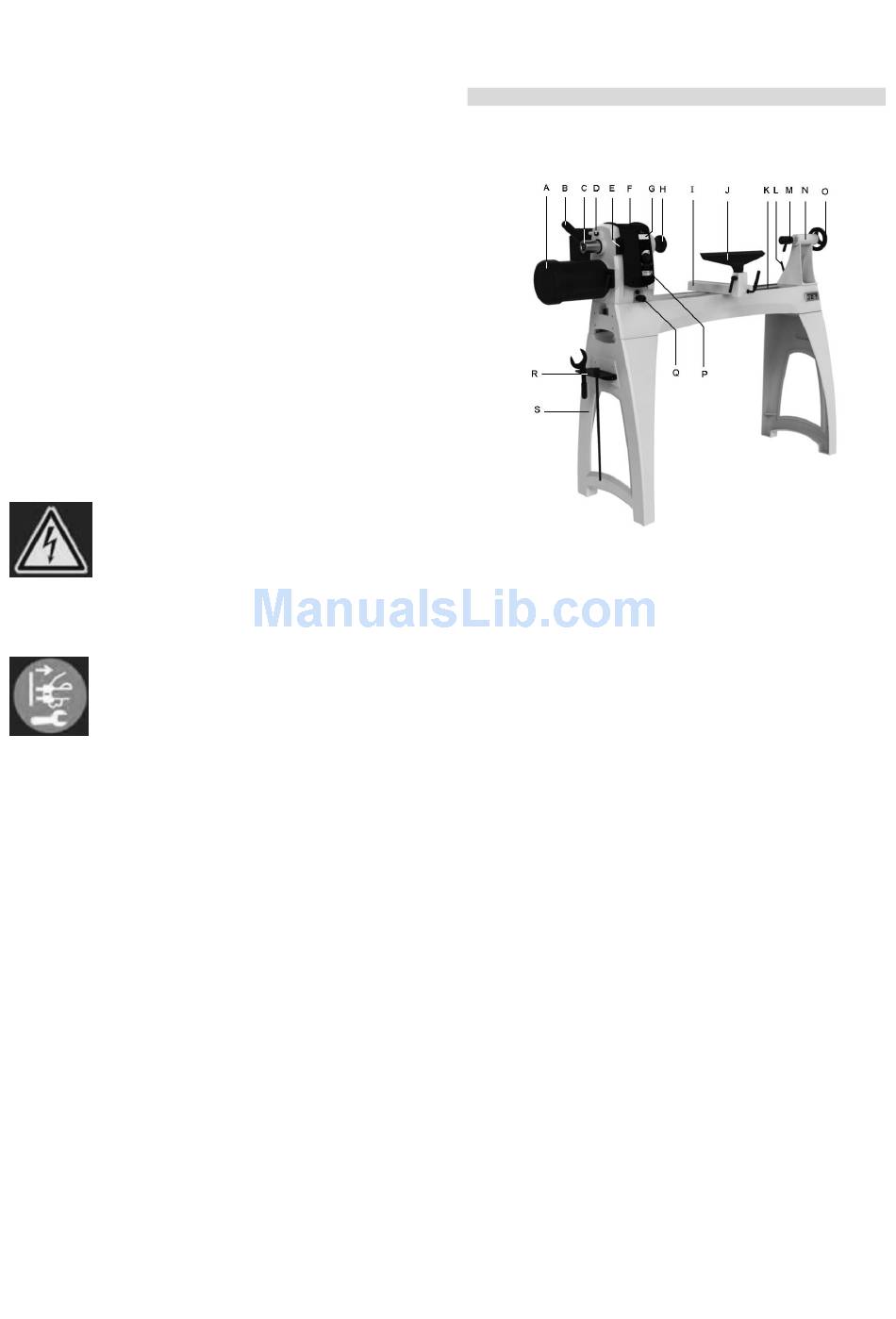

4.1 Machine description

A Motor
B Headstock lock handle
C Headstock Handwheel
D Index pin
E Spindle lock
F Headstcock
G Digital readout
H Faceplate
I Toolrest base
J 350mm toolrest
K Bed
L Tailstock lock handle
M Live center
N Tailstock
O Tailstock Handwheel
P Front-mounted controls
Q Headstock Swivel index
R Tool caddy with tools
S Casting stands

4.2 Technical data

Swing over bed
Centre distance
Number of mechanical speeds
Spindle speed range 1
Spindle speed range 2
Spindle nose
Headstock spindle taper
Spindle index lock
Tailstock spindle taper
Tailstock hole diameter
Tailstock ram travel
Centre above floor
Fig 1
405mm
990 & 940mm
40-1200 rpm
100-3200 rpm
M33x3,5 DIN 800
36 x 10°
108mm
1130mm
2
MT 2
MT 2
9mm
