fadini MEC 200 Instruction Manual page 6

MEC 200

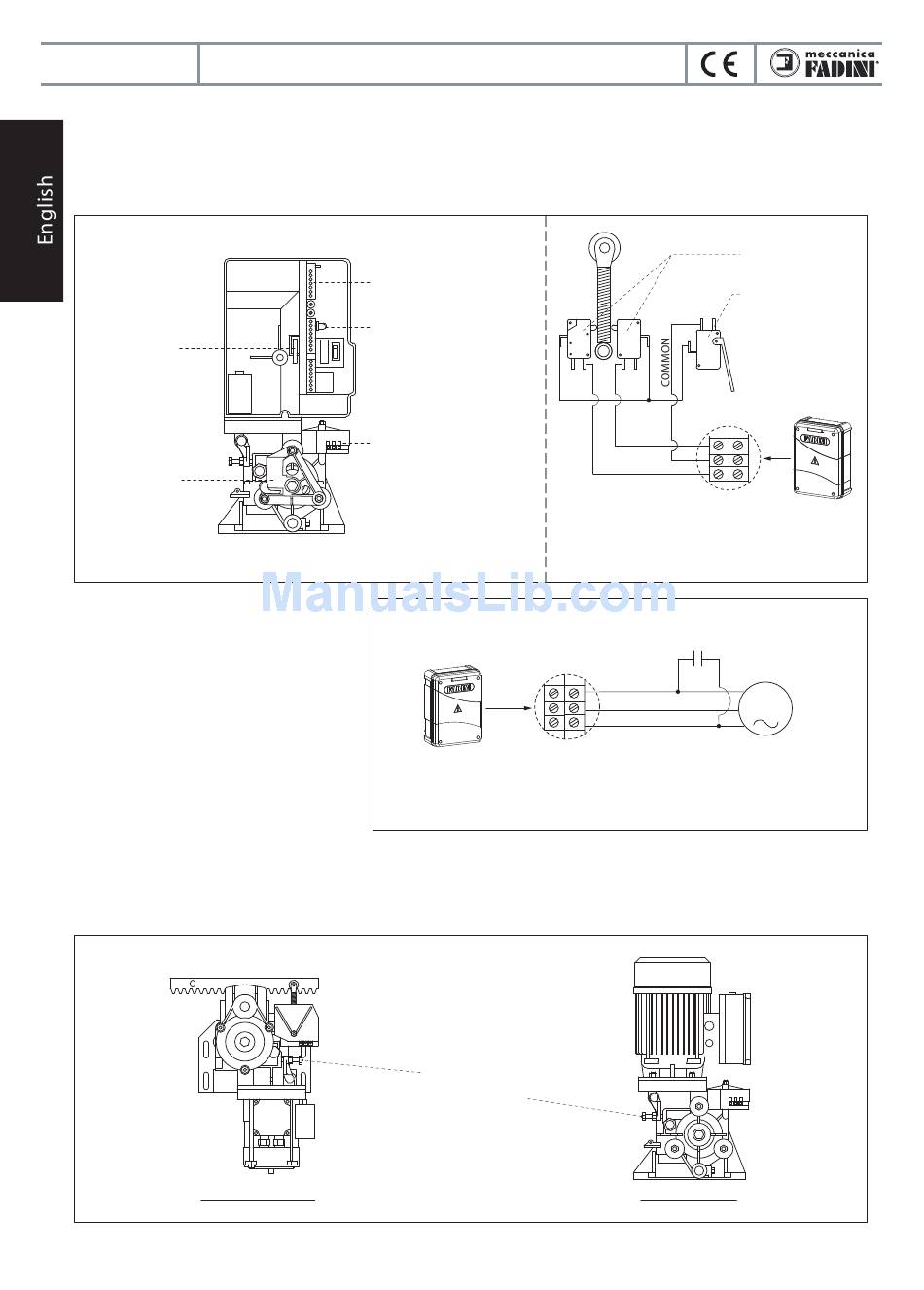

LIMIT SWITCH AND VOLTAGE CUT OFF CONNECTIONS
It is recommended to fit three-phase operators with a safety device consisting of a switch to cut off power to the low voltage circuit.
Connections are in series with the limit switch common terminal (pic. 7).
The switch is activated whenever the override spanner is inserted for manual operations or the operator cover is removed.
Should the limit switches be wrongly connected so that their action opposes the normal travelling of the gate, reverse their
connections in the main board. Change over the live connections, keep the common fixed in the same terminal.
VOLTAGE CUT OFF
MICROSWITCH
VOLTAGE CUT OFF
SAFETY DEVICE
ELECTRIC MOTOR CONNECTIONS
Should it be needed to reverse the rotation
direction of the motor, change live 1 with live 2,
but the neutral is to remain fixed in its terminal
(pic. 8).
NOTE: should the motor fail to operate the gate
in case of power shortage, add an extra 12,5 μF
capacitor and parallel connect it to the electric
motor live 1 and 2 (pic. 8).
TORQUE CONTROL AND ADJUSTMENT
Mec 200 incorporates an adjustable clutch system for torque control. The system is in an oil bath and can be adjusted to the gate
weight. Adjusting is by a screw which is located on one side of the operator. A special spanner E17 is provided with the equipment
for this purpose: unscrew the locknut; the more you tighten the screw clockwise, the more you increase the operator torque; by
unscrewing it torque is decreased. Once set it to meet the site requirements, tighten the locknut hard (pic. 9).
MEC 200 HORIZONTAL
electro-mechanical sliding gate operator
INCORPORATED ELECTRONIC
CONTROL CARD ELPRO 70/3 PLUS
ILLUMINATED LED
BOARD ON VOLTAGE
LIMIT SWITCH
TERMINAL BOARD
TO BE CONNECTED
TO THE MAIN PANEL
For the connections
of the Elpro controller,
see the respective
instructions manual
TORQUE SETTING
SCREW = + TORQUE
UNSCREW = – TORQUE
6
LIMIT SWITCH
MICROSWITCH
VOLTAGE CUT OFF
MICROSWITCH
For the connections of the Elpro
controller, see the respective
instructions manual
ADDITIONAL STARTING
12,5 μF CAPACITOR
LIVE 1
M2
COMMON
LIVE 2
SINGLE-PHASE
230 Vac - 50 Hz
ELECTRIC MOTOR
MEC 200 VERTICAL
Pic. 7
Pic. 8
Pic. 9
