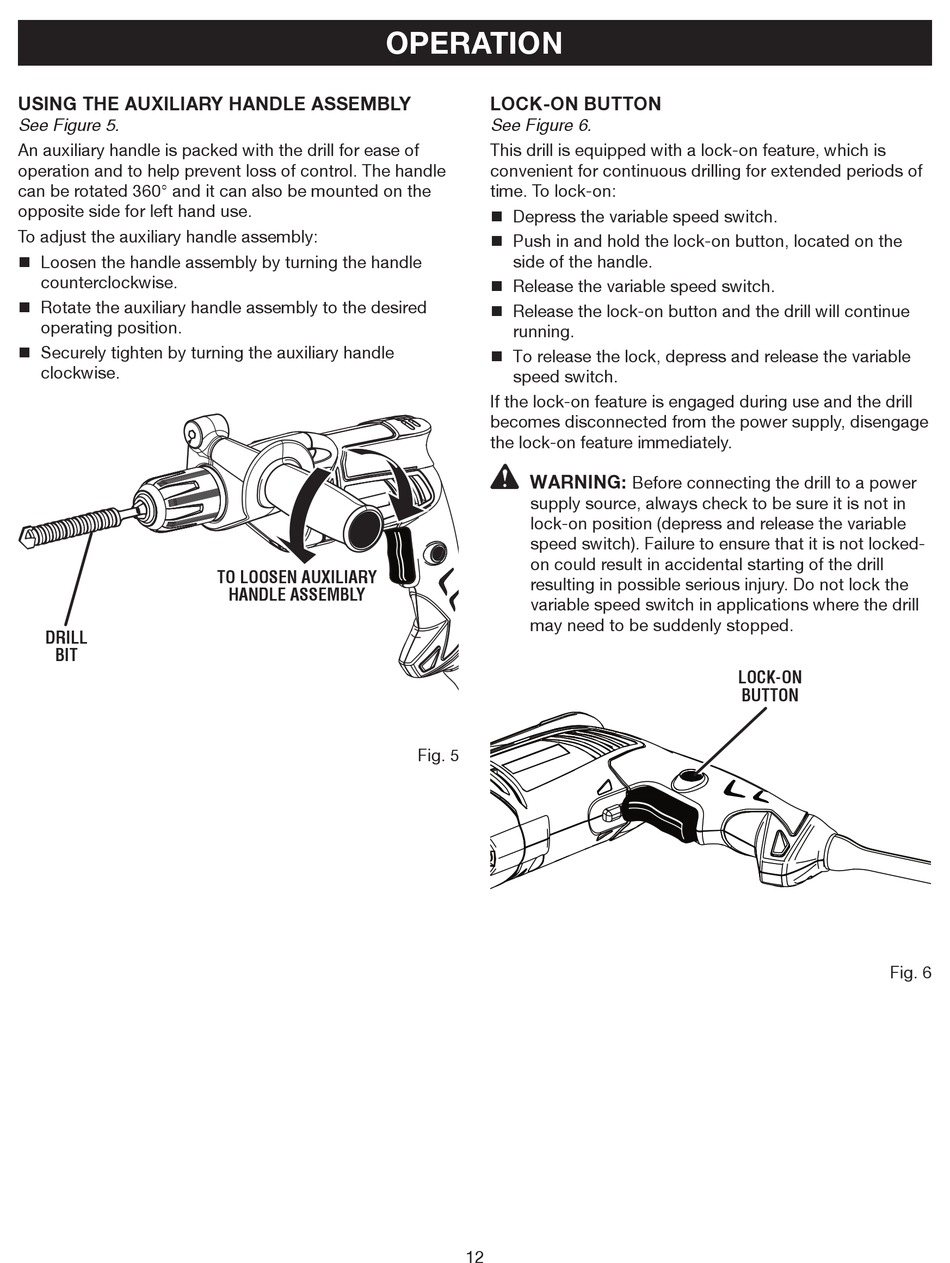

USING THE AUXILIARY HANDLE ASSEMBLY
See Figure 5.
An auxiliary handle is packed with the drill for ease of
operation and to help prevent loss of control. The handle
can be rotated 360° and it can also be mounted on the
opposite side for left hand use.
To adjust the auxiliary handle assembly:
n Loosen the handle assembly by turning the handle
counterclockwise.
n Rotate the auxiliary handle assembly to the desired
operating position.
n Securely tighten by turning the auxiliary handle
clockwise.
DRILL
BIT
OPERATION
TO LOOSEN AUXILIARY
HANDLE ASSEMBLY
LOCK-ON BUTTON
See Figure 6.
This drill is equipped with a lock-on feature, which is
convenient for continuous drilling for extended periods of
time. To lock-on:
n Depress the variable speed switch.
n Push in and hold the lock-on button, located on the
side of the handle.
n Release the variable speed switch.
n Release the lock-on button and the drill will continue
running.
n To release the lock, depress and release the variable
speed switch.
If the lock-on feature is engaged during use and the drill
becomes disconnected from the power supply, disengage
the lock-on feature immediately.
WARNING:
supply source, always check to be sure it is not in
lock-on position (depress and release the variable
speed switch). Failure to ensure that it is not locked-
on could result in accidental starting of the drill
resulting in possible serious injury. Do not lock the
variable speed switch in applications where the drill
may need to be suddenly stopped.
Fig. 5
12
Before connecting the drill to a power
LOCK-ON
BUTTON
Fig. 6
