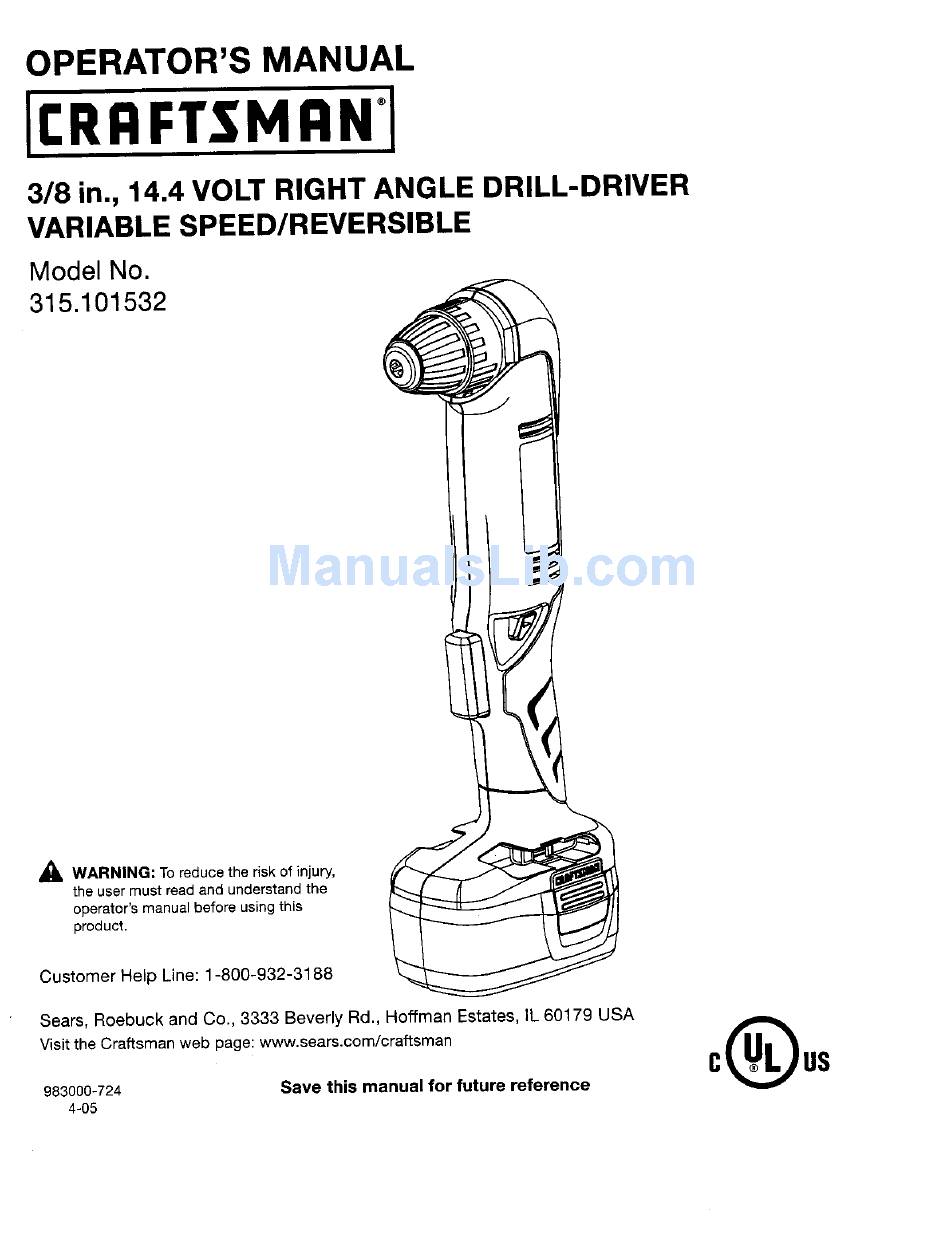

OPERATOR'S
MANUAL
ICRRFTSMRN°I
3/8 in,, 14.4 VOLT RIGHT ANGLE DRILL-DRIVER
VARIABLE SPEED/REVERSIBLE
Model No.
315.101532
_,
WARNING:
To reduce the risk of injury,
the user must read and understand
the
operator's manual before using this
product.
Customer
Help Line: 1-800-932-3188
Sears, Roebuck
and Co., 3333 Beverly
Rd., Hoffman
Estates,
IL 60179 USA
Visit the Craftsman web page: www.sears.com/craftsman
983000-724
4-05
Save this manual
for future reference
0( us
