HIOS VZOP-STC Instruction Manual

Power supply with screw counter
Hide thumbs

Advertisement

Quick Links

Download this manual

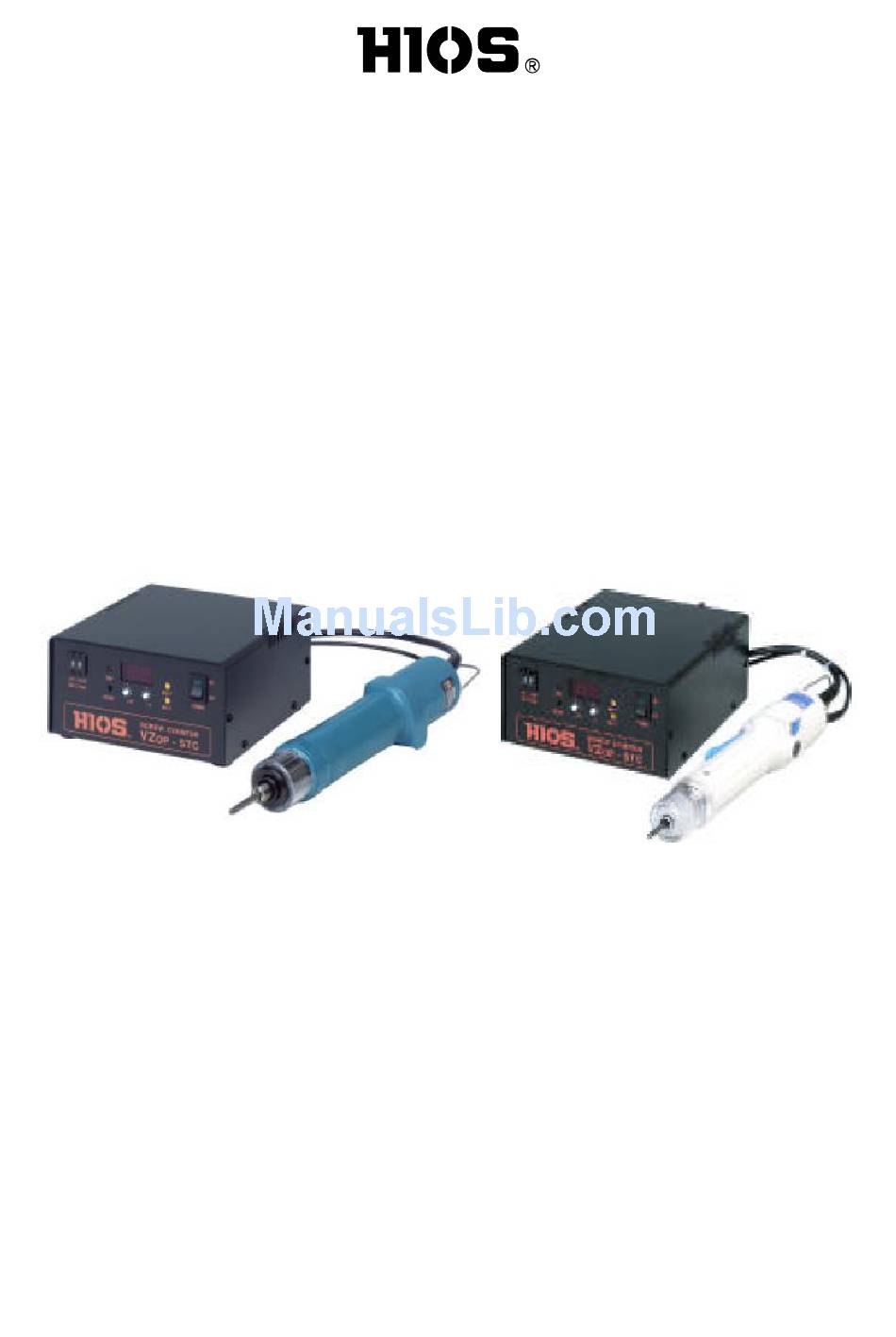

Power Supply with Screw Counter
VZOP-STC
Instruction Manual
(March 2009)
For VB-OPC screwdriver
For VZ-OPC screwdirver
Hios Inc.
111-6, Akiyama, Matsudo, Chiba Pref. Japan, 270-2223
TEL: +86（Japan）47-392-2001
FAX: +86（Japan）47-392-7773
09A
Operation Manual No.ET-A009

Advertisement

loading
Need help?

Need help?

Do you have a question about the VZOP-STC and is the answer not in the manual?

Questions and answers

Related Manuals for HIOS VZOP-STC

Summary of Contents for HIOS VZOP-STC

  • Page 1 Power Supply with Screw Counter VZOP-STC Instruction Manual (March 2009) For VB-OPC screwdriver For VZ-OPC screwdirver Hios Inc. 111-6, Akiyama, Matsudo, Chiba Pref. Japan, 270-2223 TEL: +86（Japan）47-392-2001 FAX: +86（Japan）47-392-7773 Operation Manual No.ET-A009...
  • Page 2 The VZOP-STC features a power source (DC 24 V / 0.3 A) to power external equipment as well as an input/output signal to control them. As such, the unit can be connected directly to an interlocking solenoid valve to prevent careless mistakes made by the operator.
  • Page 3 VZOP-STC Specifications Input voltage : AC 100 V ±5% 50/60 Hz Power capacity : 100 W Fuse capacity : 6 A / 250 V (with one spare fuse) Dimensions : 160 (W) x 175 (D) x 84 (H) Weight : 1.5 Kg AC cord length : 1.8 m (with ground)
  • Page 4 Please read through the electronic screwdriver instruction manual carefully before use and use only as per instructions. - Installation area 1. Always install a ground leakage breaker and safety breaker to commercial power supplies. 2. Install the unit in an area that is not subjected to dust, dirt or metal fragments. 3.
  • Page 5 12. Do not drop or subject the unit to strong shocks. 13. Do not use drivers other than those manufactured by Hios. Doing so may result in a malfunction.

  • Page 6: Front Panel

    Front Panel Display Work Set Timer Operating Display LED Main Count Timer switch Reset Button Work Reset Timer Count Set switch Main SW : Turns the power to the counter on and off. The LED display will turn green when the power is on. Reset Button : Click once during or after setting the screw count.
  • Page 7 Work Set Timer : Adjusts for the time between the input set signal on the rear panel terminal block and start of operation of the solenoid valve (0.1 to 3 seconds). Work Reset Timer : Adjusts for the time between the completion of work and when the solenoid valve turns off.

  • Page 8: Rear Panel

    Rear Panel For VB-opc driver or VZ-opc Connector for OPC drivers driver 100V output socket Signal cord Mode Switch Terminal Block AC inlet with fuse holder : GND for input and output. : The Operating Display LED on the front panel will light up and the VALVE signal turned ON when the signal received from the external switch when the work is set is shorted to ground and the time set on the set timer elapses.
  • Page 9 common GND terminal (open collector output DC 30 V / 0.1A). +DC 24 V : Power source for powering external equipment. The power capacity is DC 24 V / 0.3A. Mode Switches : The work complete notification buzzer (built in) no longer sounds if switched OFF.
  • Page 10 Basic Operations Example 1: When a solenoid valve is used to hold work placed by the operator on the bench and the work is released by the valve and moves to the next production process once all screws have been tightened. (The work piece is not released until all screws have been tightened).
  • Page 11 When you only want to use one driver. (2 VZOP-STC units are being used and are named A & B respectively) 1. Connect the external switch to SET and GND on the rear panel terminal block ((no polarity if an external switch is used and common GND if an open collector is used before connecting the output signal to SET).
