Summary of Contents for Sven VR-R600

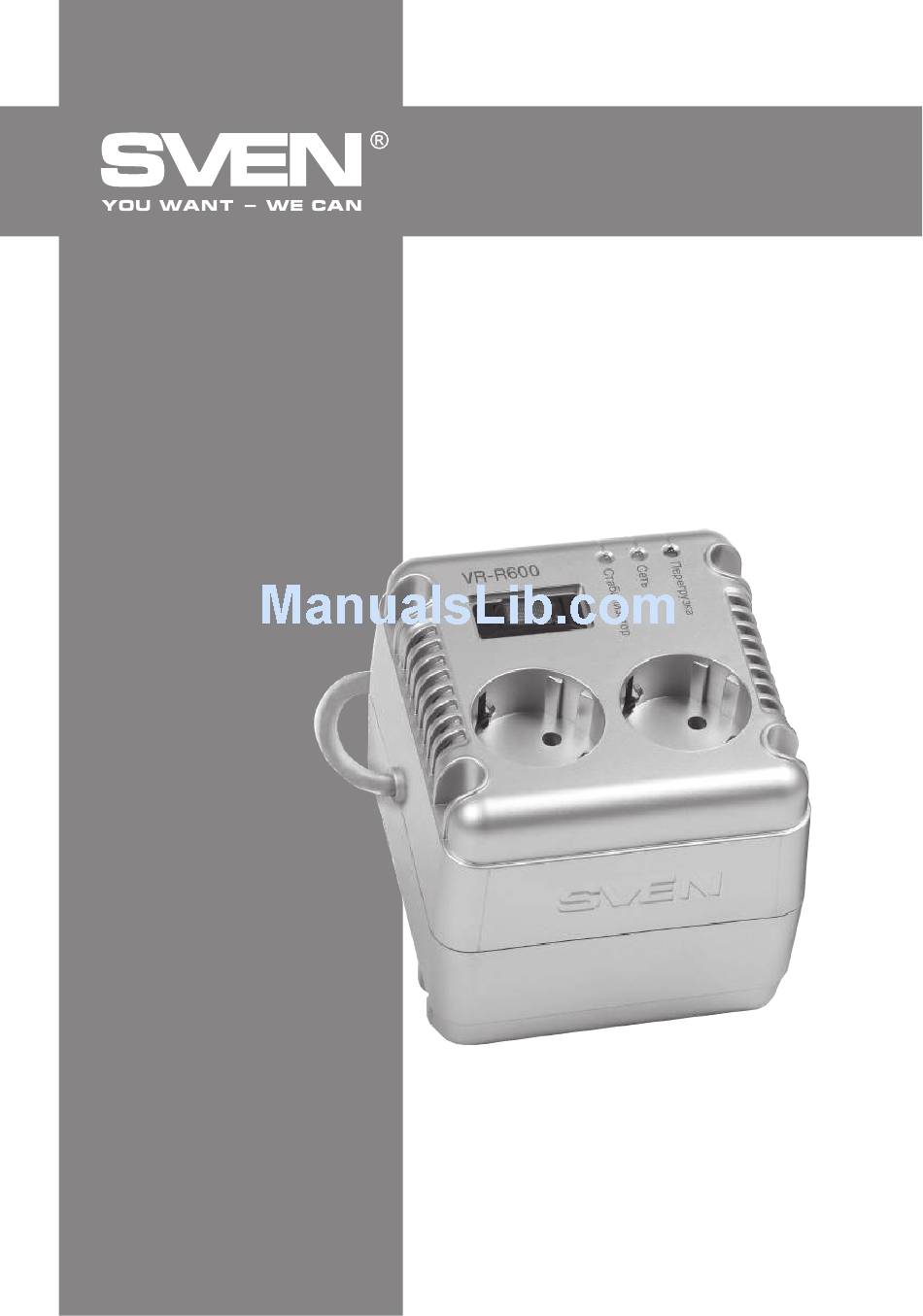

- Page 1 Automatic Voltage Regulator OPERATION MANUAL VR-R600 VR-R1000 www.sven.fi...
- Page 2 Automatic Voltage Regulator Congratulations on your purchase of Sven Automatic Voltage Regulator! Please read this Operation Manual before using the unit and retain this Operation Manual in a safe place for future reference. COPYRIGHT © 2016. SVEN PTE. LTD. Version 1.0 (V 1.0).
- Page 3 4. TECHNICAL DESCRIPTION VR-R600 and VR-R1000 - these are the entry level models of the range of stabilizers (AVR) Sven, that protect any electronic equipment from high or low voltage, pulse interference and dangerous high voltage.
- Page 4 Automatic Voltage Regulator • LED indication of operating modes • Combined with switch automatic fuse 5. INSTALLATION AND OPERATION GUIDE Attention! Before connecting the regulator, make sure that all consuming devices connected to it are off, and stabilizer switch is set to «OFF» position. Attention! When choosing an AVR, it is necessary to consider that reduction of input voltage increases value of input current, which means that maximum power of AVR is reduced too! Such dependence is shown in the graph (Fig.5).
- Page 5 VR-r600 Operation Manual VR-r1000 6. TROUBLESHOOTING Problem Cause Solution The stabilizer does not 1. Switch is off. 1. Turn on the switch. turn on voltage. 2. There is no voltage in the mains 2. Make sure there is input voltage.
- Page 6 118 × 112 × 106 124 × 124 × 119 Notes: • Technical specifications given in this table are supplemental information and can not lead to legal claims. • Technical specifications are subject to change without notice due to improvement of SVEN products.
- Page 7 № 02-02, Сингапур, 427447. Произведено под контролем «Свен Скандинавия Лимитед», 48310, Финляндия, Котка, Котолахдентие, 15. Сделано в Китае. Manufacturer: SVEN PTE. LTD., 176 Joo Chiat Road, № 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310.
