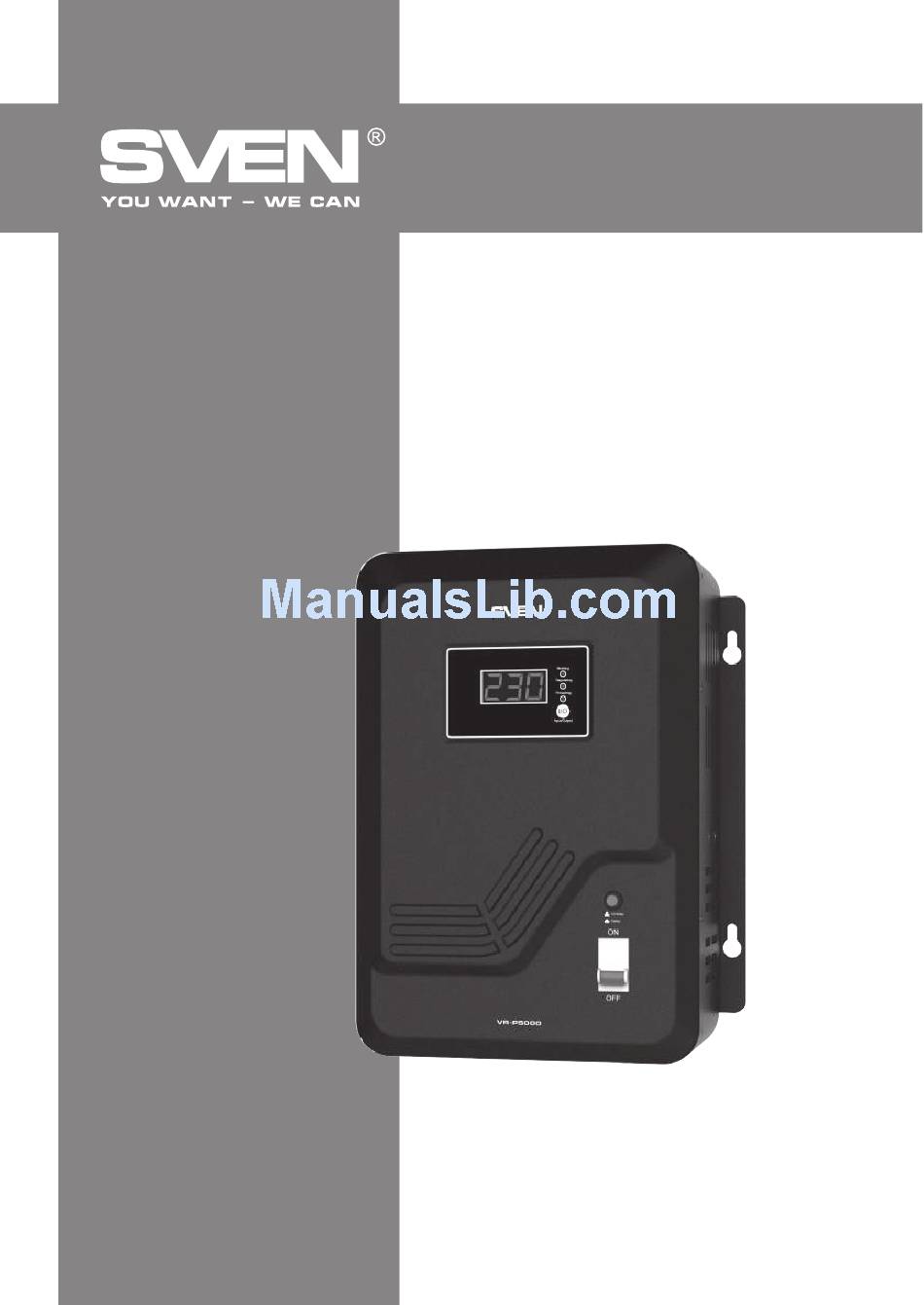

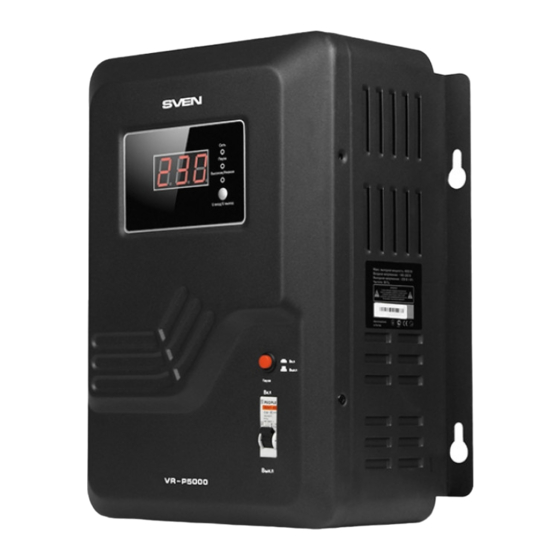

- Page 1 Wall-Mounted Automatic Voltage Regulator OPERATION MANUAL VR-P5000 VR-P8000 VR-P10000 www.sven.fi...
-
Page 2: Table Of Contents
Wall-Mounted Automatic Voltage Regulator Congratulations on your purchase of Sven Automatic Voltage Regulator! Please read this Operation Manual before using the unit and keep this Operation Manual in a safe place for future reference. COPYRIGHT © 2016. SVEN PTE. LTD. Version 1.0 (V 1.0). -
Page 3: Package Contents
VR-P5000 Operation Manual VR-P8000 VR-P10000 2. PACKAGE CONTENTS • Automatic Voltage Regulator — 1 pc • Operation Мanual — 1 pc • Warranty card — 1 pc 3. SAFETY PRECAUTIONS • When the input voltage is higher than 290V, failure of the AVR is possible. - Page 4 Delay: loading delay selection button g ON/OFF: circuit breaker / switch Fig. 3. Control panel h Wall mounting holes i Terminal box j Fan VR-P VR-P * Rear panel of 5000/8000 is similar to 10000 model. VR-P5000 model has no built-in fan.
-
Page 5: Installation And Operation Guide
• Connect the equipment to the output terminals of the stabilizer. • Connect the AVR to the power network of 230 V. Attention! Do not connect the regulator (AVR VR-P5000, VR-P8000, VR-P10000) to a household outlet. Maximum current circuit breakers should not be less than the current circuit breaker on the front panel of the product. -
Page 6: Troubleshooting
Wall-Mounted Automatic Voltage Regulator • When the stabilizer input voltage is higher than 275 V or below 140 V ± 3% the regulator disconnects the load. At the same time LED operation indicator displays «H»/«L» sign (high / low input voltage). On the front panel «Protecting» indicator d lights up. •... -
Page 7: Technical Specifications
VR-P5000 Operation Manual VR-P8000 VR-P10000 7. TECHNICAL SPECIFICATIONS Models Parameters Full power, VA ≤5000 ≤8000 ≤10000 Maximal output power, W ≤3300 ≤5400 ≤6700 Fuse, А Input voltage, V ~140 – 275 ± 3% Input frequency, Hz Output voltage, V ~230 (-14/+10%) - Page 8 № 02-02, Сингапур, 427447. Произведено под контролем «Свен Скандинавия Лимитед», 48310, Финляндия, Котка, Котолахдентие, 15. Сделано в Китае. Manufacturer: SVEN PTE. LTD., 176 Joo Chiat Road, № 02-02, Singapore, 427447. Produced under the control VR-P5000 of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310.
