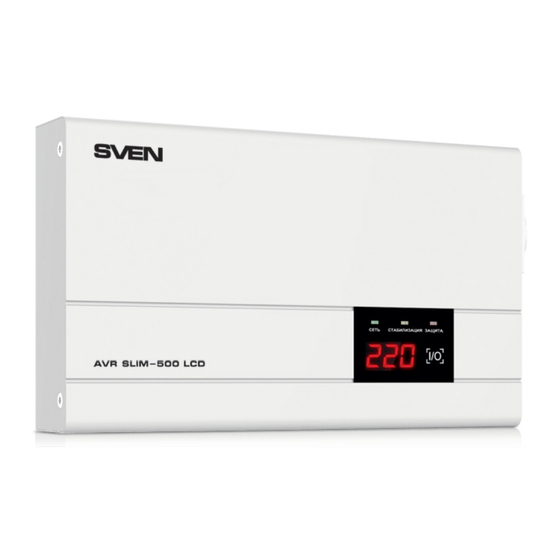

- Page 1 Wall-Mounted Automatic Voltage Regulator OPERATION MANUAL AVR SLIM-500 LCD AVR SLIM-1000 LCD AVR SLIM-1500 LCD www.sven.fi AVR SLIM-2000 LCD...
-
Page 2: Table Of Contents
Operation Manual AVR SLIM LCD Congratulations on the purchase of Sven automatic voltage regulator! Please read this Operation Manual before using the unit and retain this Operation Manual in a safe place for future reference. COPYRIGHT © 2016. SVEN PTE. LTD. Version 1.0 (V 1.0). -
Page 3: Safety Precautions
For the list of authorized service centers please go to www.sven.fi. • Do not let liquid get inside the device, it can cause short circuit or electric shock. -
Page 4: Description
RESET/OFF: bimetallic circuit-breaker j Power cord Fig. 3. AVR SLIM-500 LCD, AVR SLIM-1000 LCD * AVR SLIM-1500 LCD, AVR SLIM-2000 LCD models have 2 output sockets side panel* 5. APPLICATION Automatic voltage regulator (AVR) is designed for providing various equipment with high-quality stable electric power supply in conditions of significant and continuous deviations of mains voltage... -
Page 5: Mounting
Wall-Mounted Automatic Voltage Regulator 6. MOUNTING Important! Before mountint the regulator, make sure that all fixing elements durable fastened to the wall! • For securely wall mounting it is necessary to determine the type of wall material (wood, brick, concrete, drywall, and etc.) for corresponding fastener selection. •... -
Page 6: Pause Function
Operation Manual AVR SLIM LCD • When the mains voltage exceeds the allowable rate (lower threshold is 140 V, upper threshold is 260 V) the LED c illuminates, the AVR disconnects the load automatically and the LED d displays “L” or “H”. Attention! It is recommended to switch off the AVR and every connected consumer-device when the power supply is dropped. -
Page 7: 11. Technical Specifications
* The AVR output power is rated for 187 V input voltage (220 V – 15 %) (According to GOST 27699−88 requirements). Notes: • Technical specifications given in this table are supplemental information and cannot give occasion to claims. • Technical specifications are subject to change without notice due to the improvement of SVEN production. - Page 8 № 02-02, Сингапур, 427447. Произведено под контролем «Свен Скандинавия Лимитед», 48310, Финляндия, Котка, Котолахдентие, 15. Сделано в Китае. Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, № 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, AVR SLIM-500 LCD Kotka, Finland, 48310.
