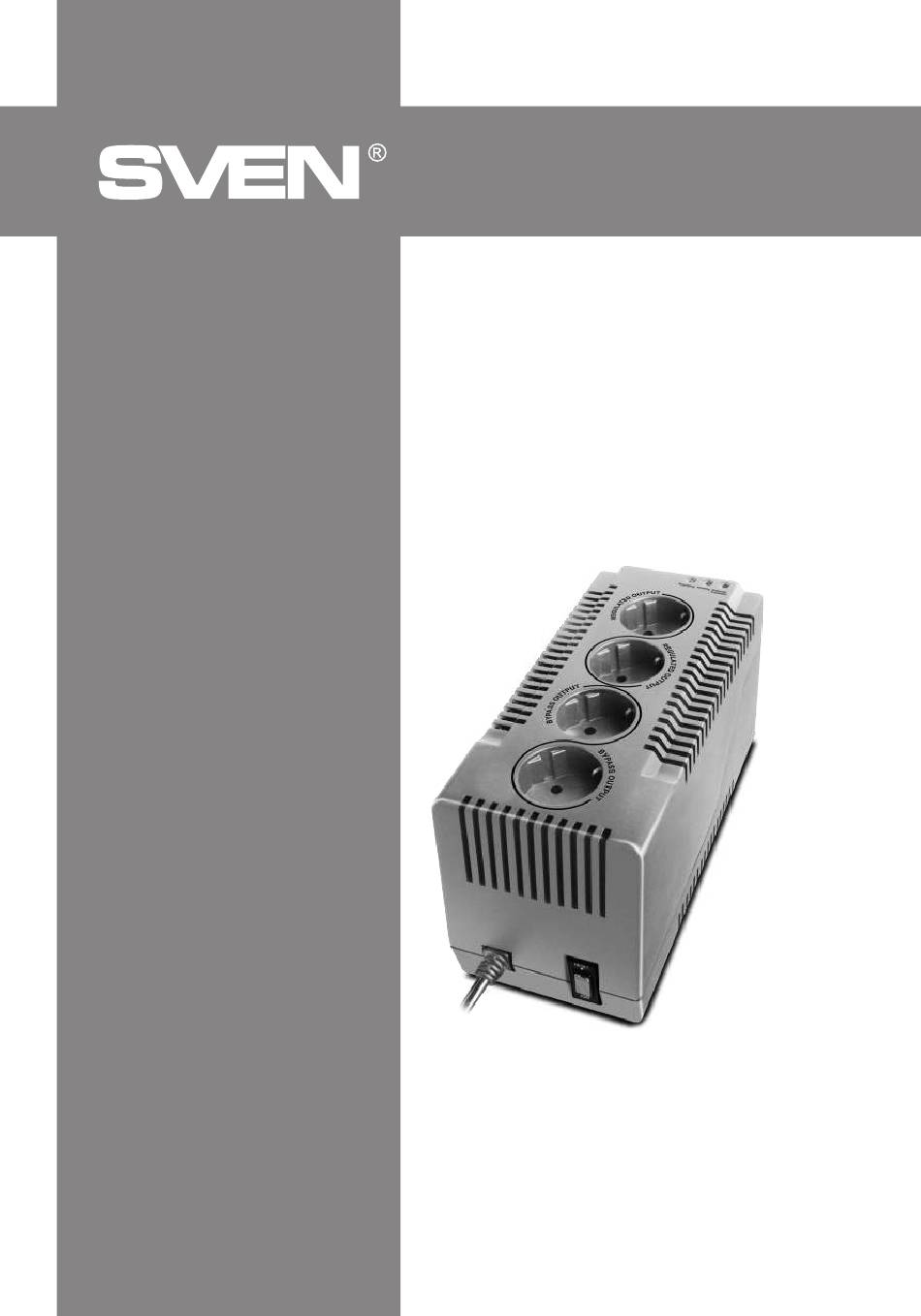

- Page 1 Automatic Voltage Regulator OPERATION MANUAL VR-F1000 VR-F1500 www.sven.fi...
- Page 2 Automatic Voltage Regulator Congratulations on your purchase of Sven Automatic Voltage Regulator! Please read this Operation Manual before using the unit and retain this Operation Manual in a safe place for future reference. COPYRIGHT © 2019. SVEN PTE. LTD. Version 1.0 (V 1.0).
- Page 3 4. TECHNICAL DESCRIPTION VR-F1000 and VR-F1500 – these are the entry level models of the range of stabilizers (AVR) Sven, that protect any electronic equipment from high or low voltage, pulse interference and dangerous high voltage.
- Page 4 Automatic Voltage Regulator Description a b c a Regulating: stabilized output voltage LED operation indicator b Working: operation indicator, glows when the regulator is turned on c Delaying/Protection: protection indicator d 2 sockets AVR e 2 sockets surge protector f Power cable g Reset/OFF : On/Off...
- Page 5 VR-F1000 Operation Manual VR-F1500 6. TROUBLESHOOTING Problem Cause Solution The stabilizer does not 1. Switch is off. 1. Turn on the switch. turn on voltage. 2. There is no voltage in the mains 2. Make sure there is input voltage.
- Page 6 Automatic Voltage Regulator 7. TECHNICAL SPECIFICATIONS Model VR-F1000 VR-F1500 Parameter Load carrying capacity, W ≤320 ≤500 Fuse, А ~180 – 285±3% Input voltage, V Input frequency, Hz ~230 (-14/+10%) Output voltage, V Output frequency, Hz Max. suppressed energy of ≤250 high-voltage pulses, J.
- Page 7 № 02-02, Сингапур, 427447. Произведено под контролем «Свен Скандинавия Лимитед», 48310, Финляндия, Котка, Котолахдентие, 15. Сделано в Китае. Manufacturer: SVEN PTE. LTD., 176 Joo Chiat Road, № 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310.
