Installation
3.2

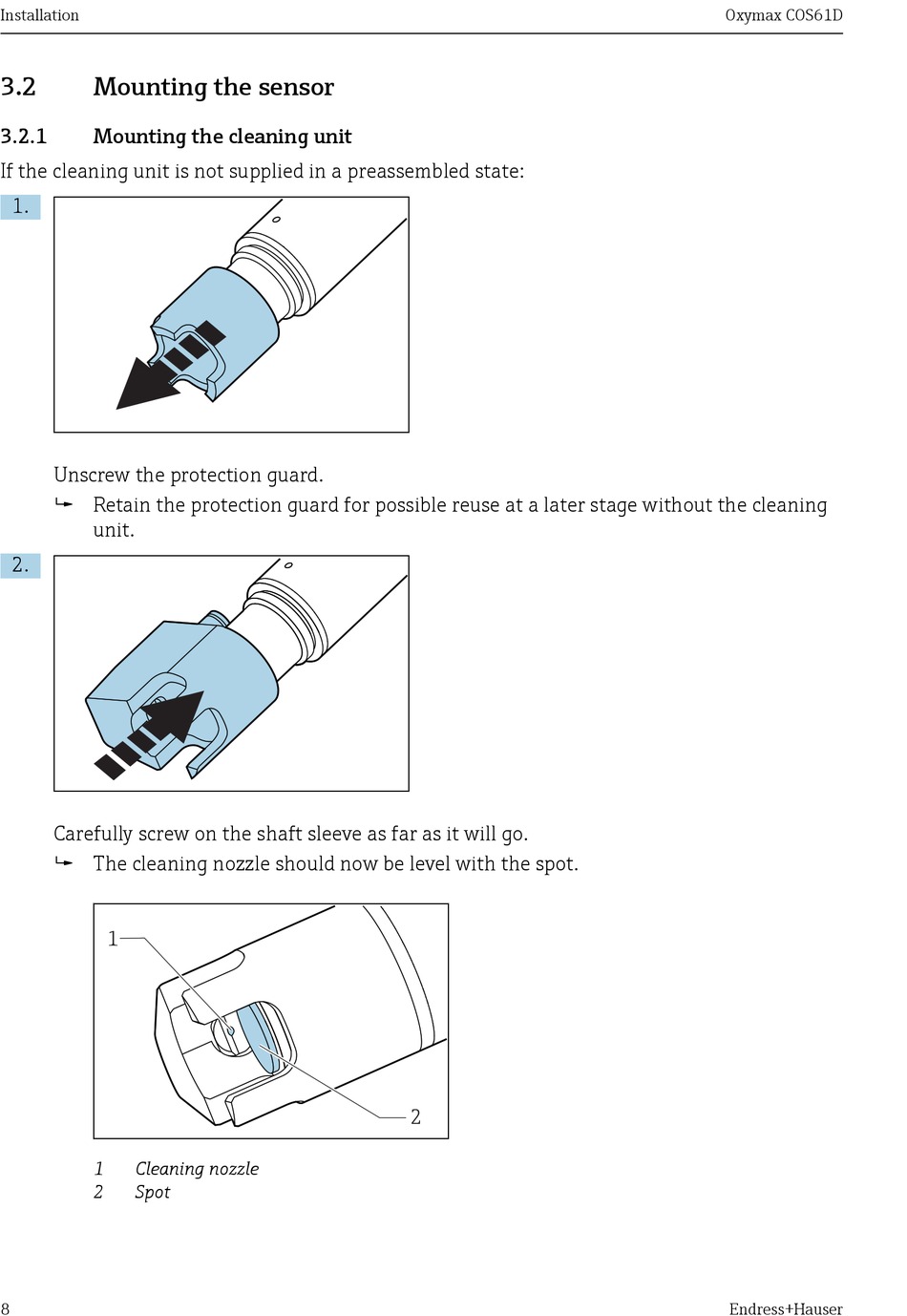

Mounting the sensor
3.2.1
Mounting the cleaning unit
If the cleaning unit is not supplied in a preassembled state:
1.
Unscrew the protection guard.
Retain the protection guard for possible reuse at a later stage without the cleaning
unit.
2.
Carefully screw on the shaft sleeve as far as it will go.
The cleaning nozzle should now be level with the spot.
1
1
Cleaning nozzle
2
Spot
8
2
Oxymax COS61D
Endress+Hauser
